HIKVISION DS-K1T501SF User Manual

Video Access Control Terminal·User Manual
46

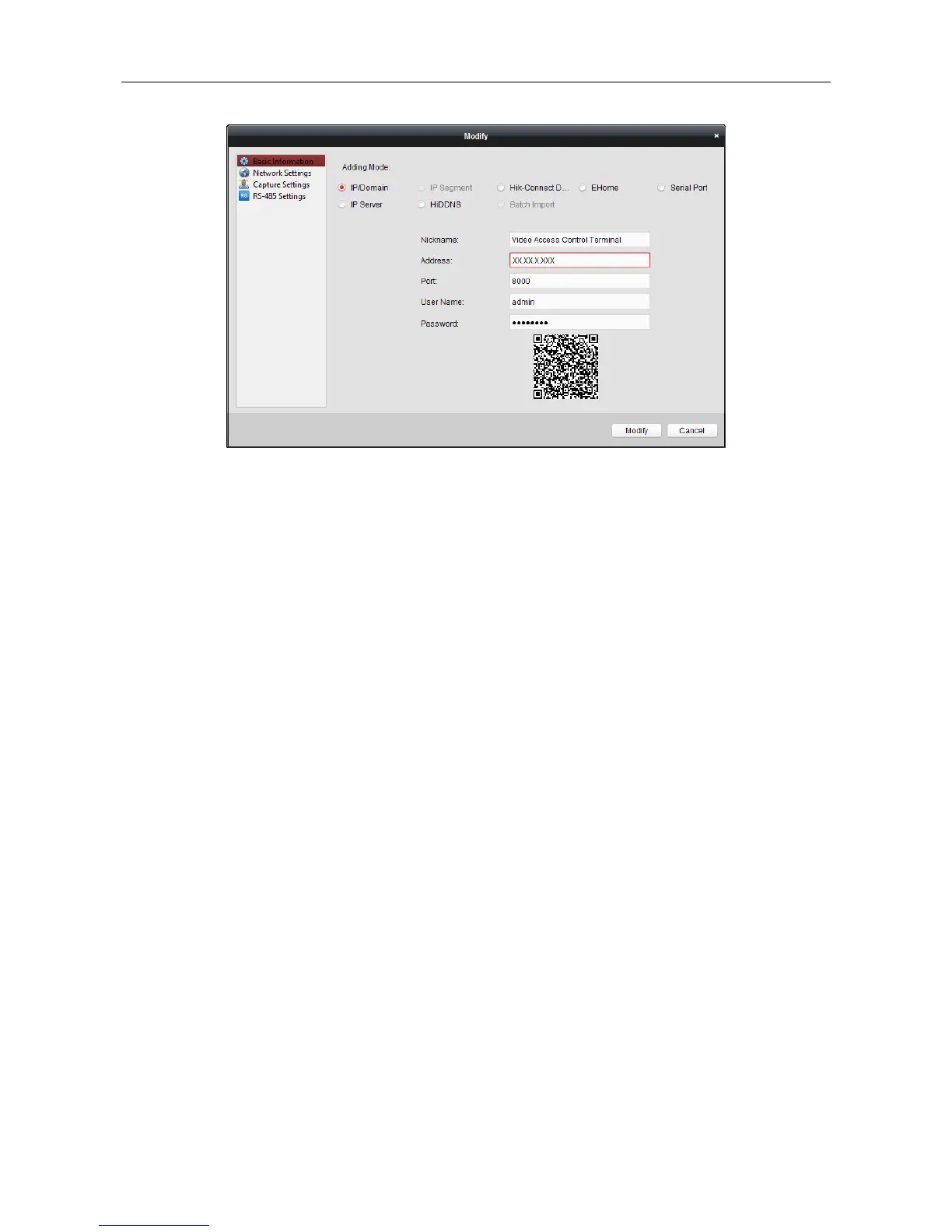

4. Edit the device information, including the adding mode, the device name, the device IP address,
port No., user name, and the password.
7.4.4 Network Settings
Purpose:
After adding the access control device, you can set the uploading mode, and set the network
center and wireless communication center.
Select the device in the device list, and click Modify to pop up the modifying device information
window.
Click Network Settings tab to enter the network settings interface.
Uploading Mode Settings
Purpose ：
You can set the center group for uploading the log via the EHome protocol.
Steps:
1. Click the Uploading Mode tab.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
