Video Access Control Terminal·User Manual
64
of all organizations.

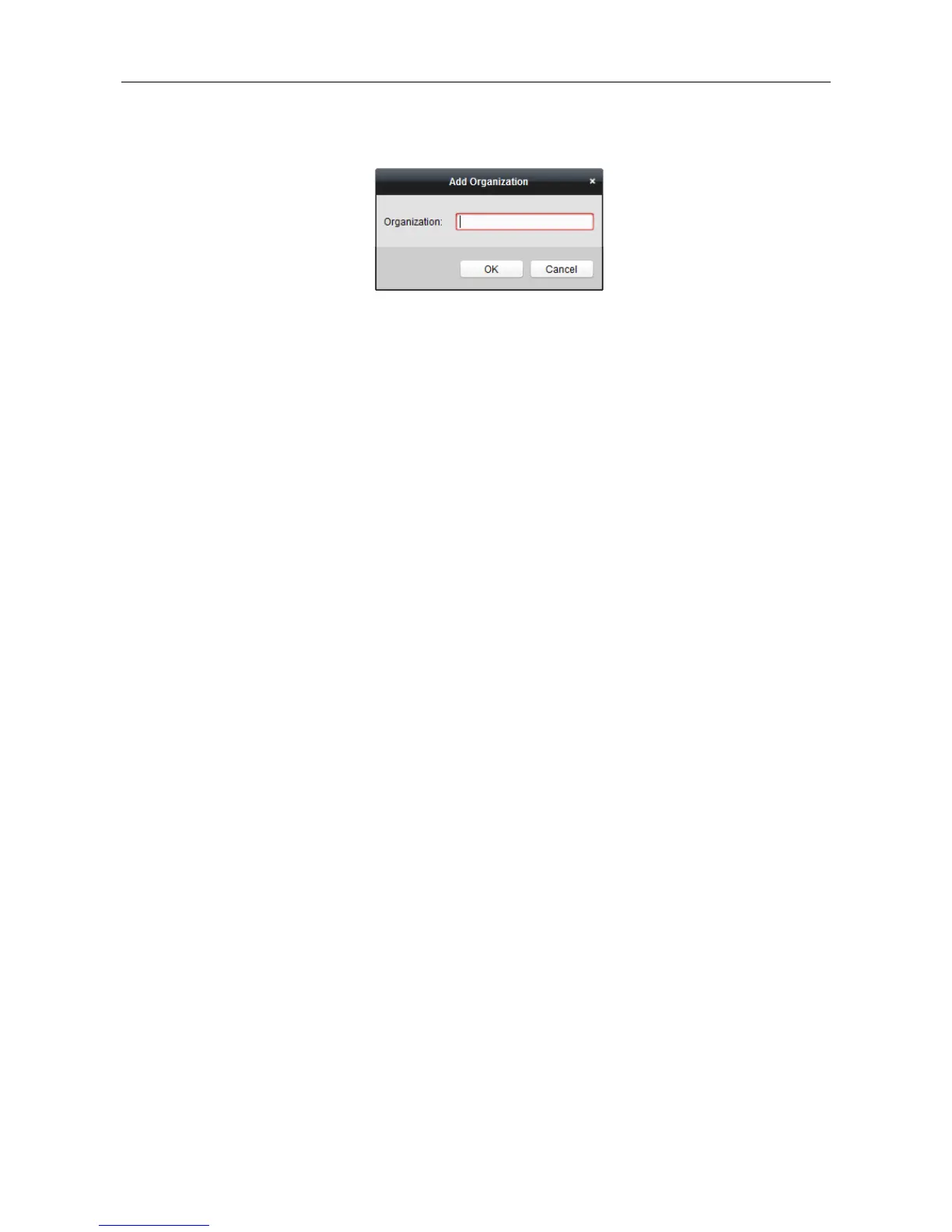

Click Add button to pop up the adding organization interface.
2. Input the Organization Name as desired.
3. Click OK to save the adding.
4. You can add multiple levels of organizations according to the actual needs.
To add sub organizations, select the parent organization and click Add.
Repeat Step 2 and 3 to add the sub organization.
Then the added organization will be the sub-organization of the upper-level organization.
Note: Up to 10 levels of organizations can be created.
7.5.2 Modifying and Deleting Organization
You can select the added organization and click Modify to modify its name.
You can select an organization, and click Delete button to delete it.
Notes:
The lower-level organizations will be deleted as well if you delete an organization.
Make sure there is no person added under the organization, or the organization cannot be
deleted.
7.6 Person Management
After adding the organization, you can add person to the organization and manage the added
person such as issuing cards in batch, importing and exporting person information in batch, etc.
Note: Up to 10,000 persons or cards can be added.
7.6.1 Adding Person
Adding Person (Basic Information)
Steps:
1. Select an organization in the organization list and click Add button on the Person panel to pop
up the adding person dialog.

Table of Contents

Other manuals for HIKVISION DS-K1T501SF

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-K1T501SF and is the answer not in the manual?

HIKVISION DS-K1T501SF Specifications

General IconGeneral
TypeBasic access control reader
Product colorGray
Cards capacity50000 cards
Housing materialMetal
Keypad integratedNo
Fingerprint readerYes
Authentication typeAccess chip/card, Biometric, Face recognition
Transaction capacity200000
Fingerprint sensor typeOptical
Identification (1:N) time1.5 s
False Rejection Rate (FRR)0.01 %
False Acceptance Rate (FAR)0.001 %
Access chip/card reader typeContactless
International Protection (IP) codeIP65
DC current (max)600 A
DC voltage range12 V
Total megapixels2 MP
Front camera typeSingle camera
PC connected-
RS-485 ports1
Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth218 mm
Width78 mm
Height41 mm
