Video Access Control Terminal·User Manual
92

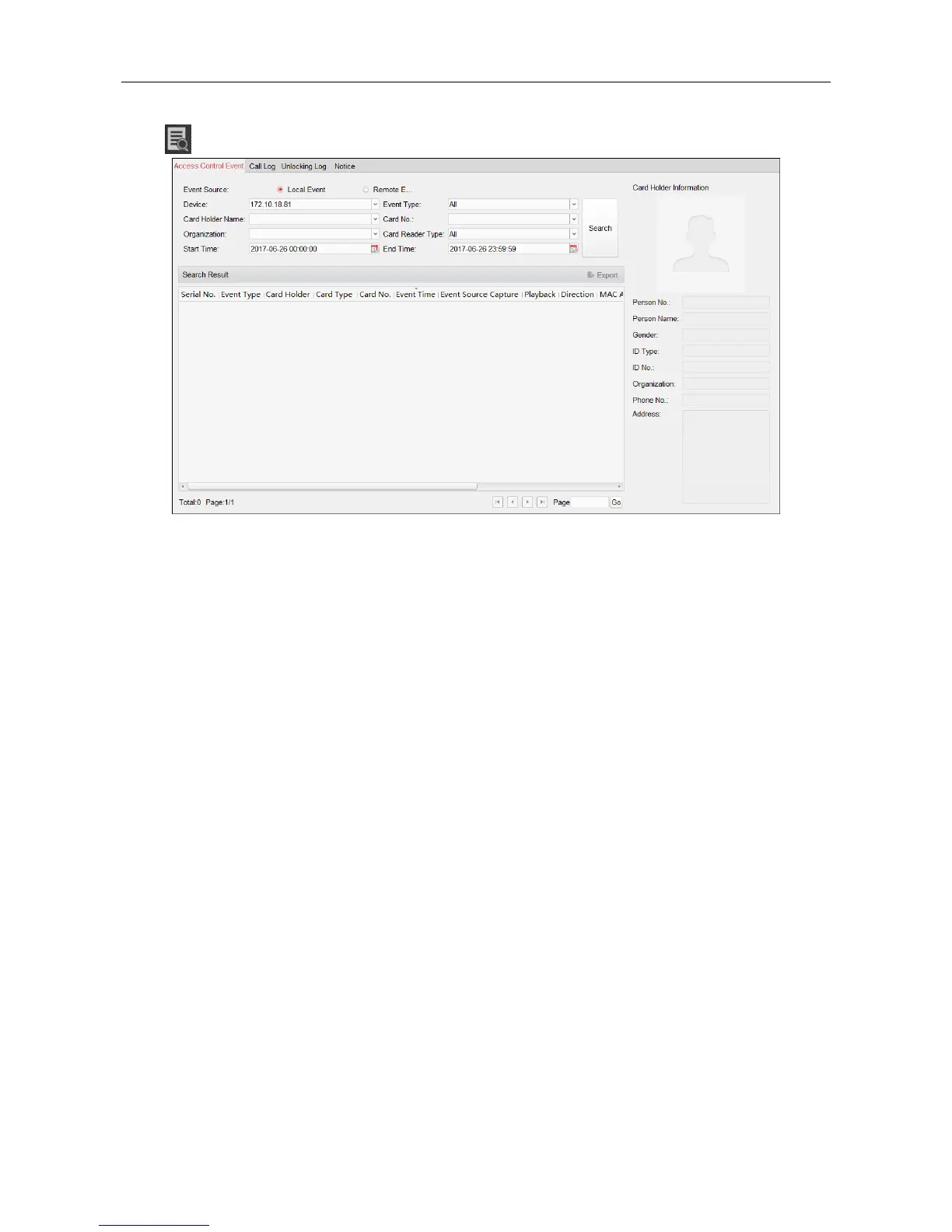

Click icon and click Access Control Event tab to enter the following interface.
7.10.1 Searching Local Access Control Event
Steps:
1. Select the Event Source as Local Event.
2. Input the search condition according to actual needs.
3. Click Search. The results will be listed below.
4. For the access control event which is triggered by the card holder, you can click the event to
view the card holder details, including person No., person name, organization, phone number,
contact address and photo.
5. (Optional) If the event contains linked pictures, you can click in the Capture column to view the
captured picture of the triggered camera when the alarm is trigged.
6. (Optional) If the event contains linked video, you can click in the Playback column to view the
recorded video file of the triggered camera when the alarm is trigged.
Note: For setting the triggered camera, refer to Chapter 7.11.1 Access Control Event Linkage.
7. You can click Export to export the search result to the local PC in *.csv file.
7.10.2 Searching Remote Access Control Event
Steps:
1. Select the Event Source as Remote Event.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
