HIKVISION DS-K1T501SF User Manual

Video Access Control Terminal·User Manual
51

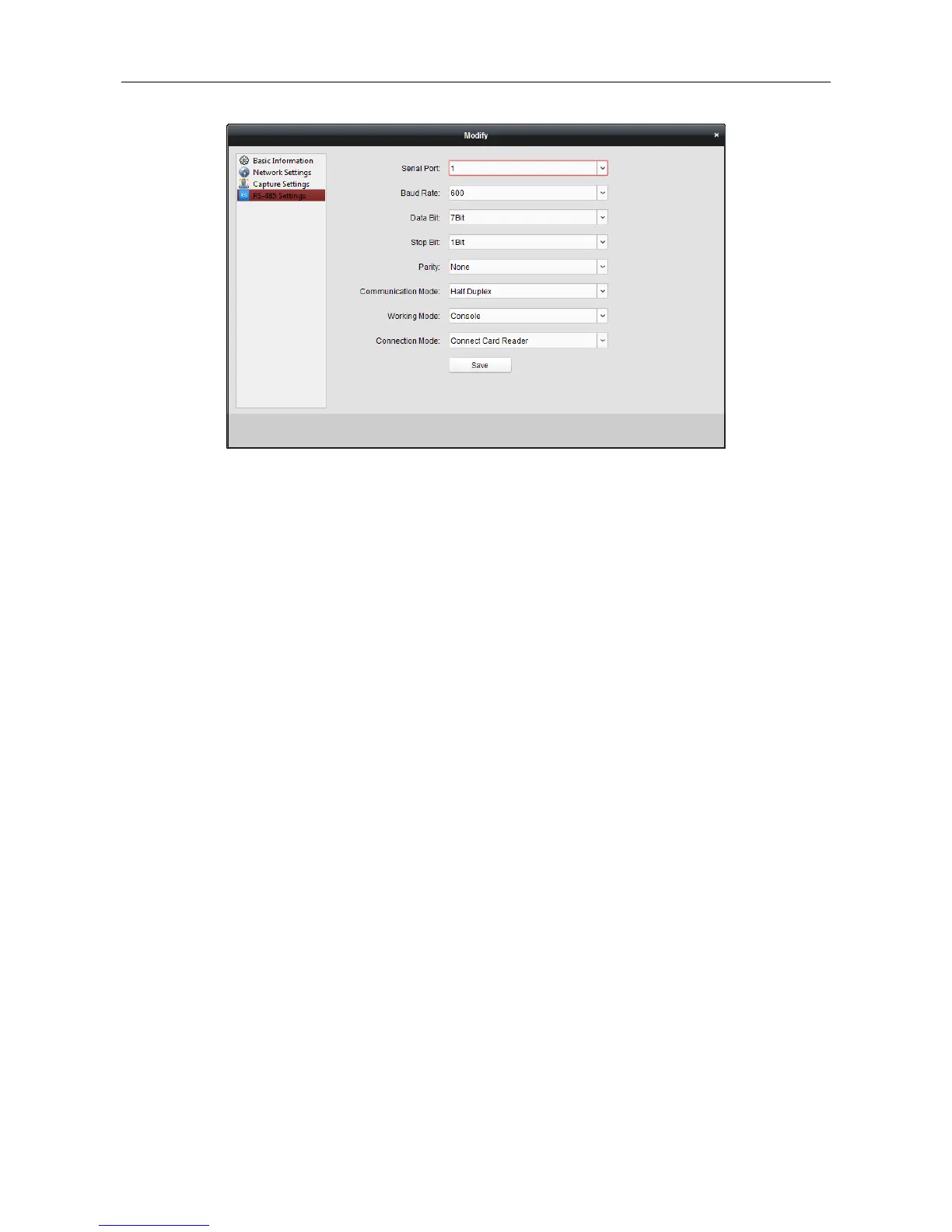

2. Select the serial No. of the port from the dropdown list to set the RS-485 parameters.
3. Set the baud rate, data bit, the stop bit, parity type, communication mode, work mode, and the
connection mode in the dropdown list.
4. Click Save to save the settings and the configured parameters will be applied to the device
automatically.
Note: After changing the working mode, the device will be rebooted. A prompt will be popped up
after changing the working mode.
7.4.7 Remote Configuration
Purpose:
In the device list, select the device and click Remote Configuration button to enter the remote
configuration interface. You can set the detailed parameters of the selected device.
Checking Device Information
Steps:
1. In the device list, you can click Remote Configuration to enter the remote configuration
interface.
2. Click System -> Device Information to check the device basic information and the device
version information.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
