User Manual of DS-TCG227-A Series Entrance/Exit Capture Unit
49
configured according to the actual conditions.
 RS-485
1) Select the Picture Mode. Scene Picture and Scene Picture + Close-up
Picture are selectable.
2) Select the Scene Mode. Entrance and Exit, Toll Station, and Entrance
and Exit of Underground Parking Lot are selectable.
3) Enter the Linked Lane No. ranging from 1 to 99. The lane No. will be
overlaid on the captured picture.
4) Enter the RS-485 Linked Camera No. ranging from 1 to 16. The No.
refers to the RS-485 serial port connected channel No. of the vehicle
detector.
3. Click Draw LPR Area to enter the License Plate Recognition System
Configuration page. A default LPR area is displayed on the screen.

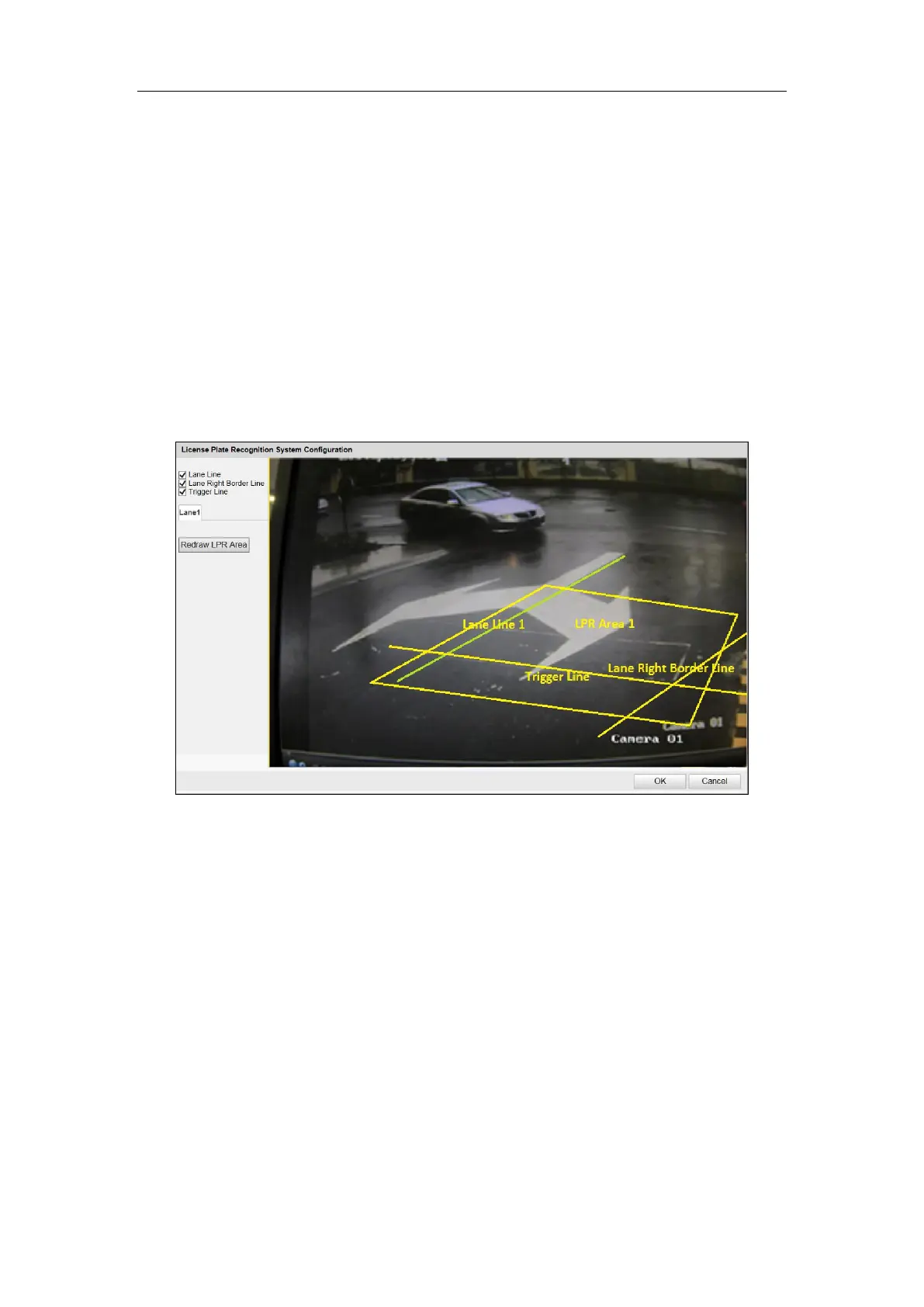

Figure 6-36 Draw LPR Area
1) Check the lines to be displayed.
2) (Optional) Click Redraw LPR Area. Refer to Chapter 2.7.2 Adjust Image
for reference
3) Click OK to save the settings.
4. (Optional) Click Get Recommended Value to get the default value.
5. Click Save to save the settings.
6.7 Configure Capture Parameters
6.7.1 Configure License Plate Recognition Parameters
Purpose:
You can configure the license plate type for recognition.
