Network load control
Basic - L3P
Release
4.0
11/07
8.6
VLANs
41
8.6.3 Example of a simple VLAN
The following example provides a quick introduction to configuring a VLAN
as it is often done in practice.
The configuration is performed step by step.

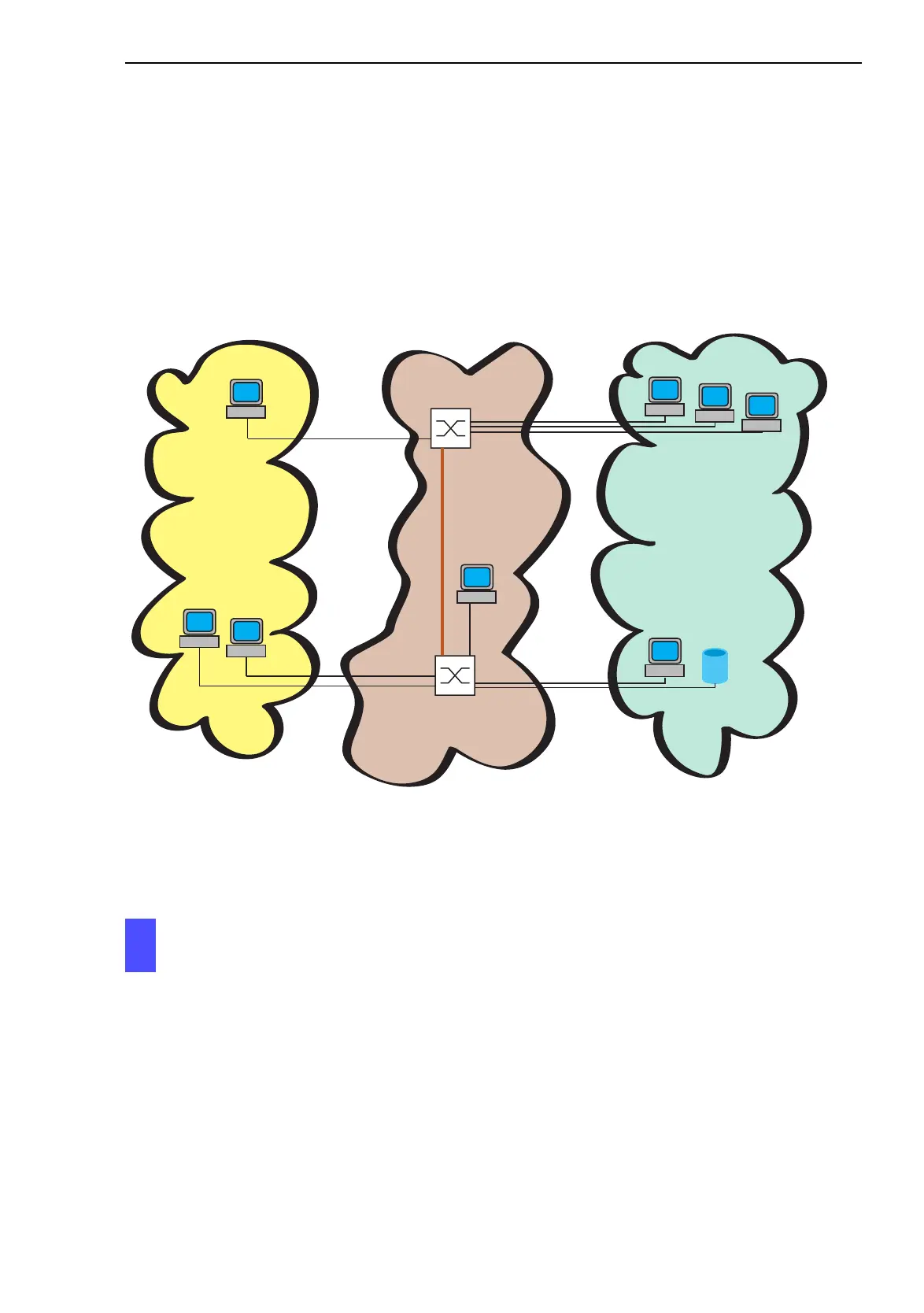

Figure 42: Example of a VLAN
Select the Switching:VLAN:Static
dialog.
149.218.112.208
149.218.112.76
VLAN Yellow
VLAN Green
VLAN Brown
ID = 1
Network
Management
Station
