Hirschmann MACH 4000 User Manual

Operation diagnosis
Basic - L3P
Release 4.0 11/07
9.3 Out-of-band signaling
13
9.3.3 Monitoring the device status via the signal
contact
The "Device Status" option enables you, like in the operation monitoring, to
monitor the device state (see on page 7 "Monitoring the device status") via
the signal contact.

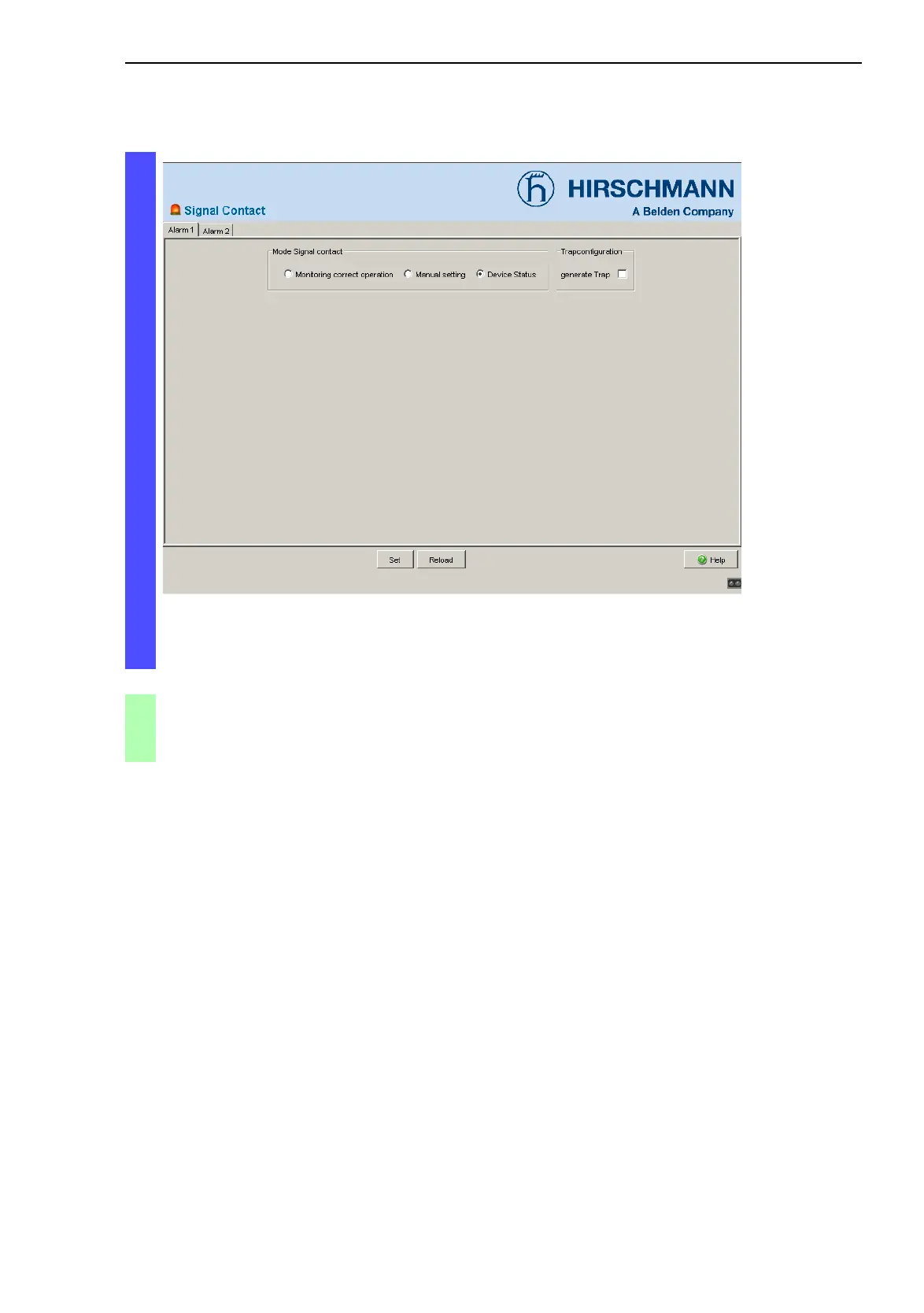

Figure 53: Signal contact dialog
exit Switch to the Priviledged EXEC mode.
show signal-contact 1 Displays the status of the operation monitoring
and the setting for the status determination.
