A B C D
IEC06000147 V5 EN-US

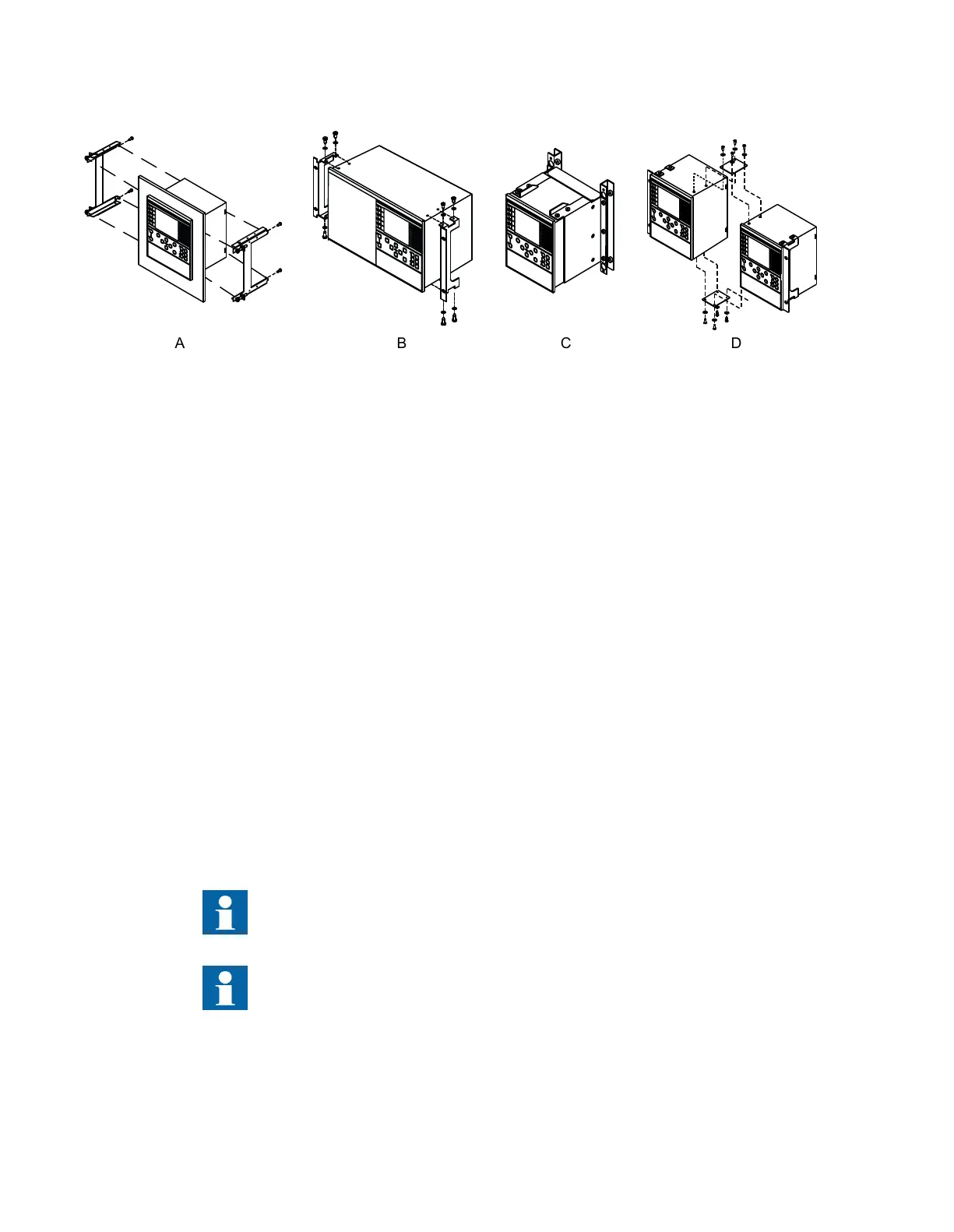

Figure 2: Different mounting methods
Description
A Flush mounting
B 19” Panel rack mounting
C Wall mounting
D Side-by-side rack mounting
5.3.1 Flush mounting
IP10303-1 v1
5.3.1.1 Overview
M11967-3 v5
The flush mounting kit can be used for case sizes:
• 1/2 x 19”
• 3/4 x 19”
• 1/1 x 19”
• 1/4 x 19” (RHGS6 6U)
Only a single case can be mounted in each cut-out on the cubicle panel, for class IP54 protection. The
screws from the IED shall be used to fasten the fasteners to the IED.
Flush mounting cannot be used for side-by-side mounted IEDs when IP54 class must be
fulfilled. Only IP20 class can be obtained when mounting two cases side-by-side in one (1)
cut-out.
To obtain IP54 class protection, an additional factory mounted sealing must be ordered when
ordering the IED.
Section 5 1MRK514026-UUS Rev. P
Mounting
20 670 series
Installation manual
