5.3.5.2 Mounting procedure for side-by-side 19" rack mounting
M12730-6 v5
1
2
3
4
IEC06000181 V3 EN-US

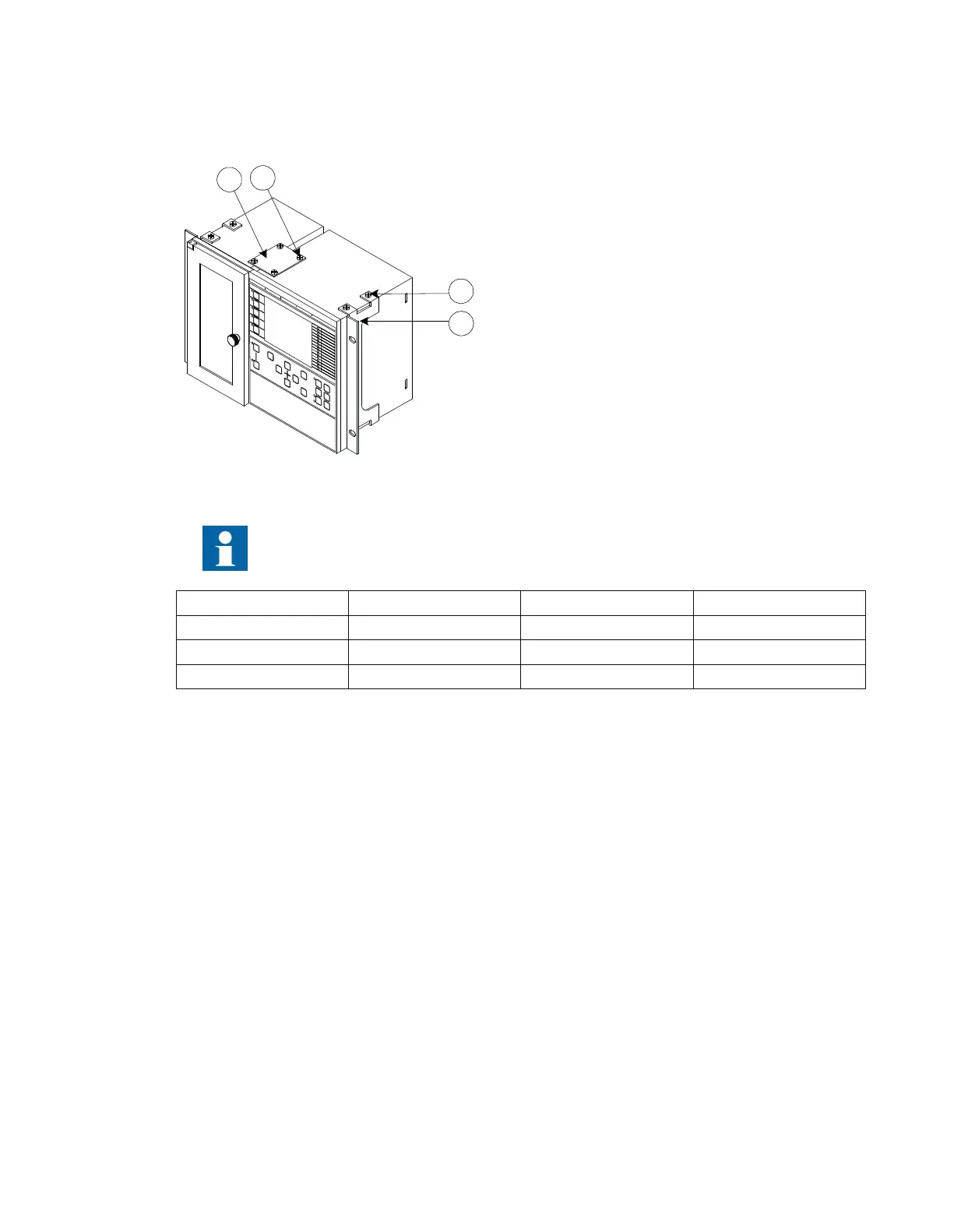

Figure 9: Side-by-side rack mounting details (RHGS6 side-by-side with 1/2 x 19” IED).
The required torque for the screws is 3.5 Nm.
PosNo Description Quantity Type
1 Mounting plate 2 -
2, 3 Screw, washer 16 M4x6
4 Mounting angle 2 -
5.3.6 Mounting the injection unit REX060 (REG670 only)
GUID-264732AC-6C84-44E6-9F86-2065AD0B7D5B v3
The injection unit REX060 case size is 6U, 1/2 x 19”. REX060 can be rack, wall or flush mounted in the
same way as the IED. For guidance, see instructions for rack mounting, wall mounting or flush mounting
the IED in this manual.
REX060 shall be mounted close to the IED. It is recommended that they are mounted in the same
cubicle.
Section 5 1MRK514026-UUS Rev. P
Mounting
28 670 series
Installation manual
© 2017 - 2023 Hitachi Energy. All rights reserved
