5.3.1.2 Mounting procedure for flush mounting
M11942-2 v6
IEC16000080 V2 EN-US

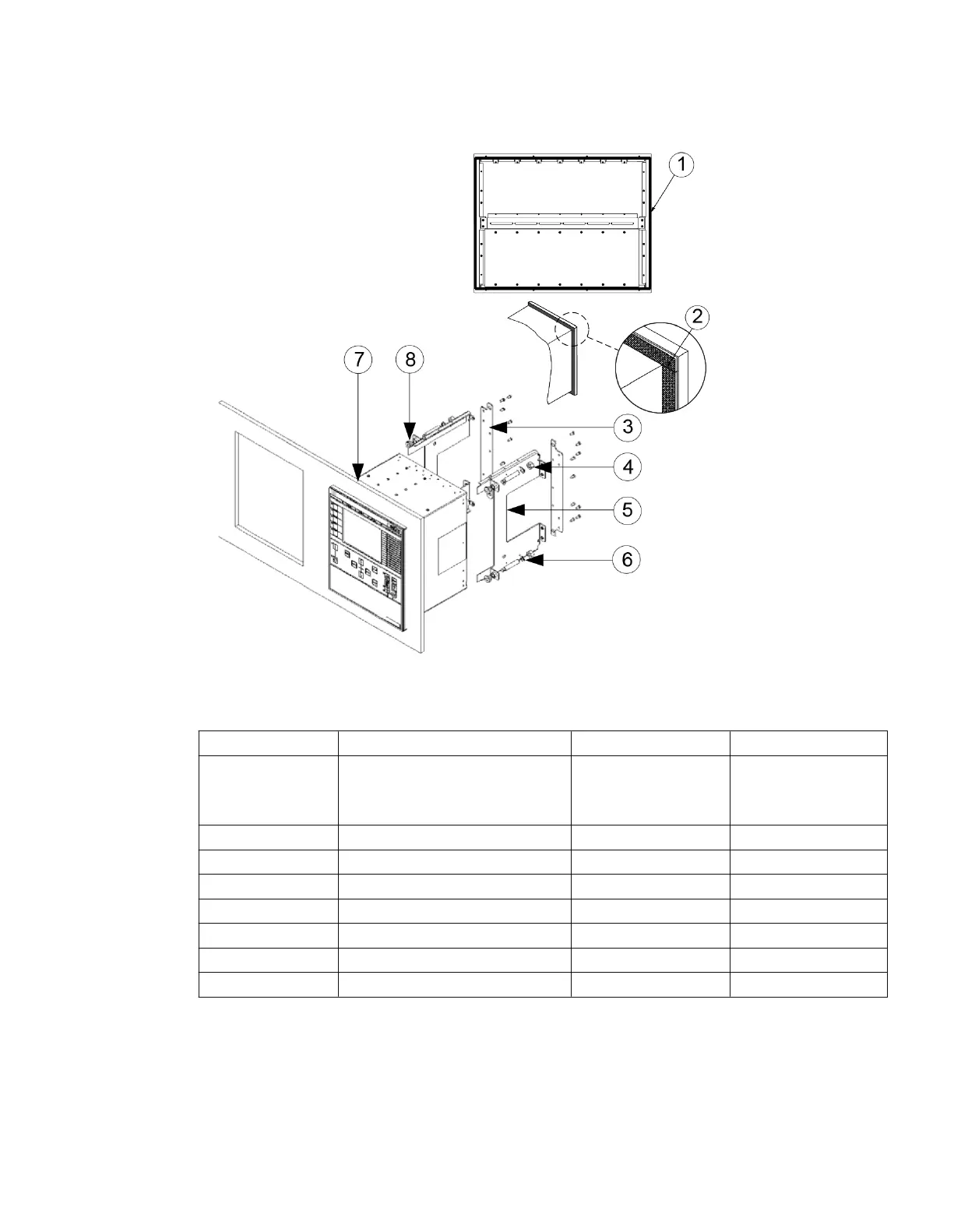

Figure 3: Flush mounting details.
PosNo
Description Quantity Type
1 Sealing strip, used to obtain IP54
class. The sealing strip is factory
mounted between the case and front
plate.
- -
2 Joining point of sealing strip - -
3 Flush mounting rail 2 -
4 Nut 4 M8
5 Mounting kit 2 -
6 Spring lock washer 4 M8
7 Panel 1 -
8 Fastening foot 4 -
1MRK514026-UUS Rev. P Section 5
Mounting
670 series 21
Installation manual
© 2017 - 2023 Hitachi Energy. All rights reserved
