5.3.7 Mounting the coupling capacitor unit REX061 and shunt resistor
unit REX062 (REG670 only)
5.3.7.1 Coupling capacitor unit REX061
GUID-59726B2B-0888-4CC1-8DEA-209F77CA5173 v5
IEC11000019 V2 EN-US

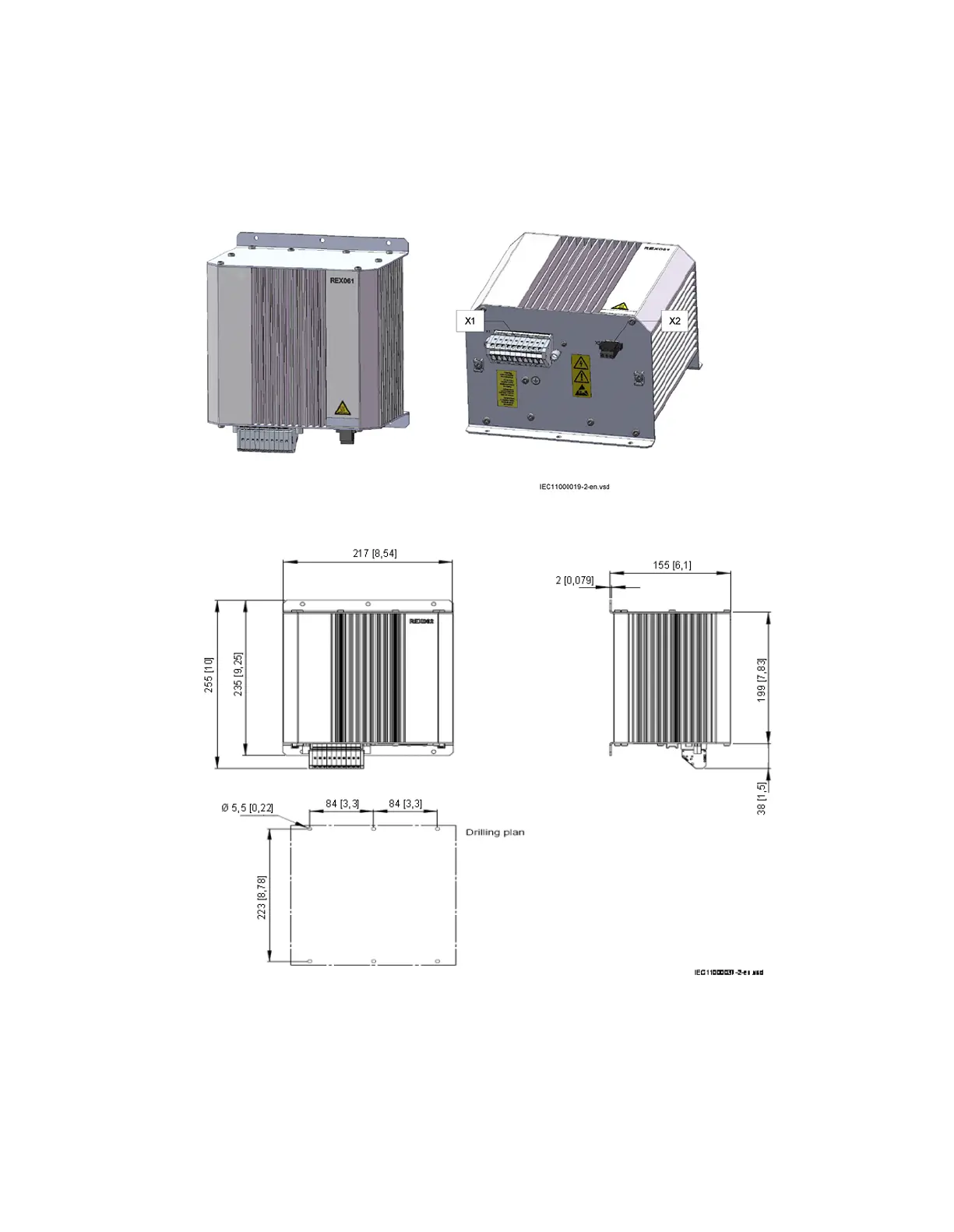

Figure 10: Coupling capacitor unit REX061
IEC11000037 V3 EN-US
Figure 11: Measure and drilling plan
REX061 shall be mounted close to the generator in order to limit the exposure of the field circuit.
Alternatively it can be located in the excitation cubicle.
1MRK514026-UUS Rev. P Section 5
Mounting
670 series 29
Installation manual
