Hitachi 670 Series User Manual

9.1.4 Side-by-side flush mounting dimensions
M11984-3 v6
IEC06000182 V3 EN-US

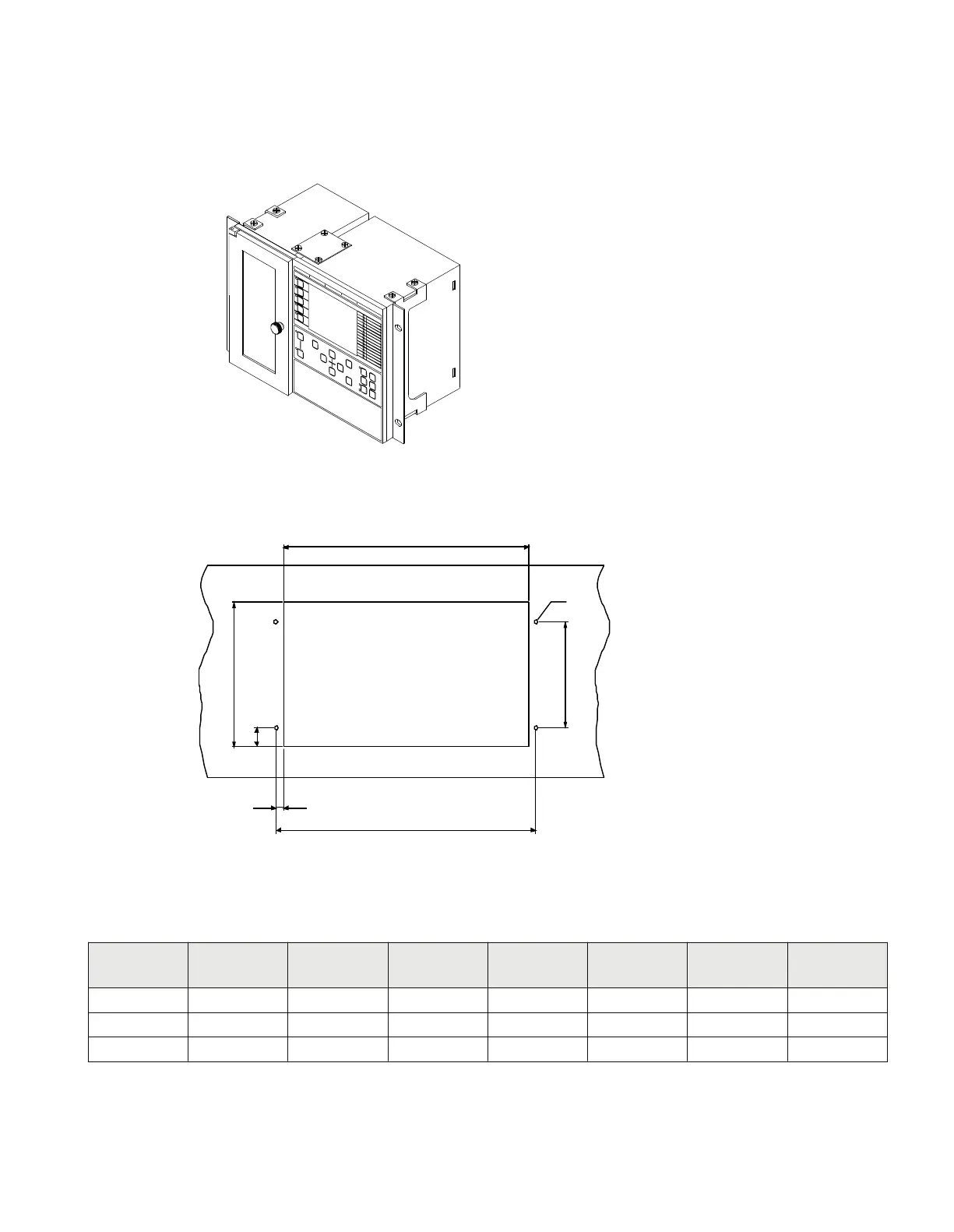

Figure 55: A 1/2 x 19” size IED side-by-side with RHGS6
xx05000505.vsd
B
A
C
G
D
E
F
IEC05000505 V1 EN-US
Figure 56: Panel-cut out dimensions for side-by-side flush mounting
Case size
(inches)
Tolerance
A
±0.04
B
±0.04
C
±0.04
D
±0.04
E
±0.04
F
±0.04
G
±0.04
6U, 1/2 x 19” 8.42 10.21 9.46 7.50 1.35 0.52 0.25 diam
6U, 3/4 x 19” 12.85 10.21 13.89 7.50 1.35 0.52 0.25 diam
6U, 1/1 x 19” 17.27 10.21 18.31 7.50 1.35 0.52 0.25 diam
1MRK514026-UUS Rev. P Section 9
Technical data
670 series 85
Installation manual
