The surface of REX061 unit may be temporarily very hot due to heat dissipation, up to about
50° C above the ambient temperature. It must be installed to get a open air convection and
prevent contact with combustible material to the surface.
Example 1
5.3.7.2 Shunt resistor unit REX062
GUID-184D9033-33F3-4F85-8847-E9FDC95C3C41 v5
IEC11000038 V2 EN-US

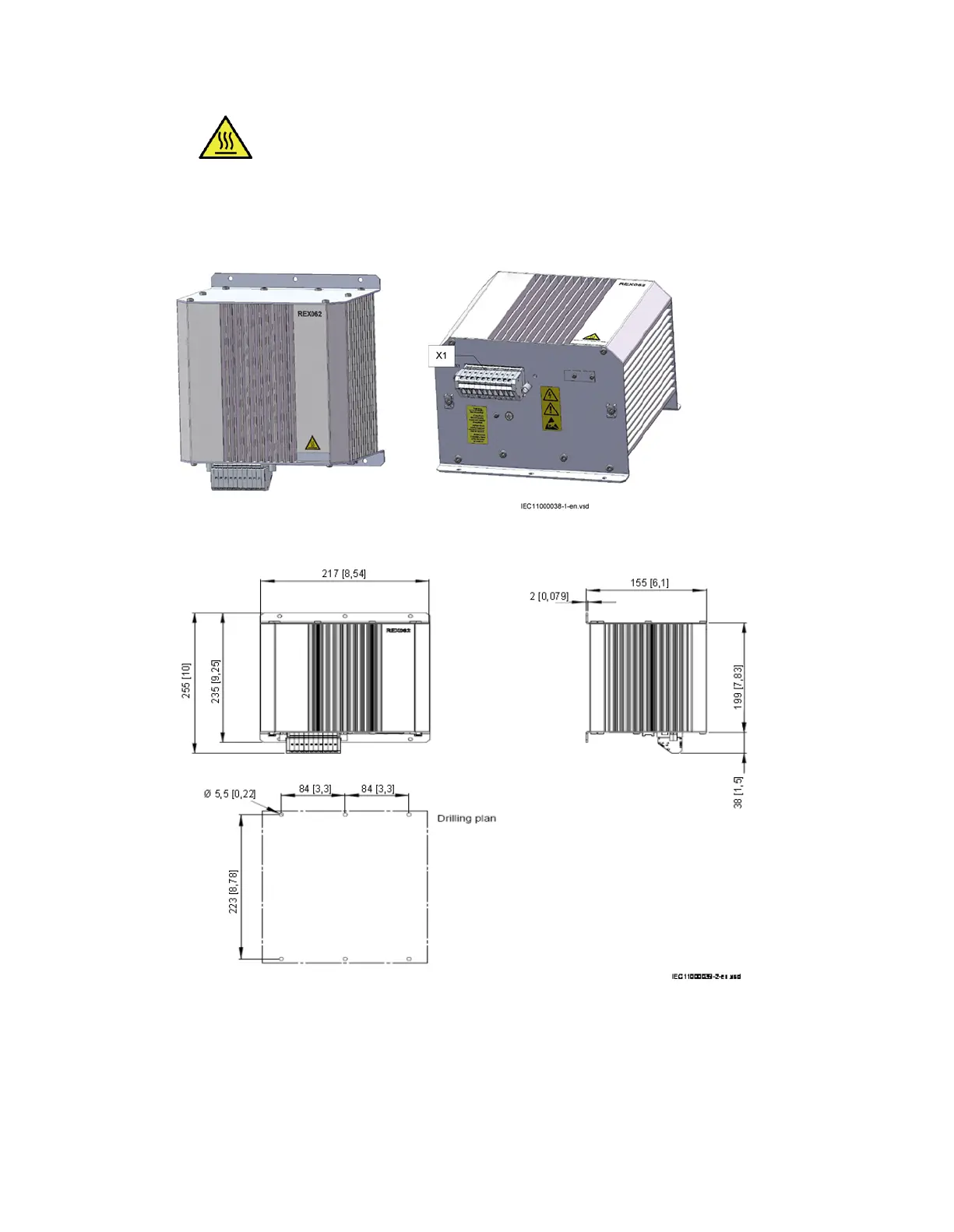

Figure 12: Shunt resistor unit REX062
IEC11000039 V3 EN-US
Figure 13: REX062 measures and drilling plan
REX062 shall be mounted close to the IED. It is recommended that REX060 and REX062 are mounted
in the same cubicle as the IED.
Section 5 1MRK514026-UUS Rev. P
Mounting
30 670 series
Installation manual
