6.1.1.3 Rear side connectors
SEMOD129387-1 v2
M16105-3 v11

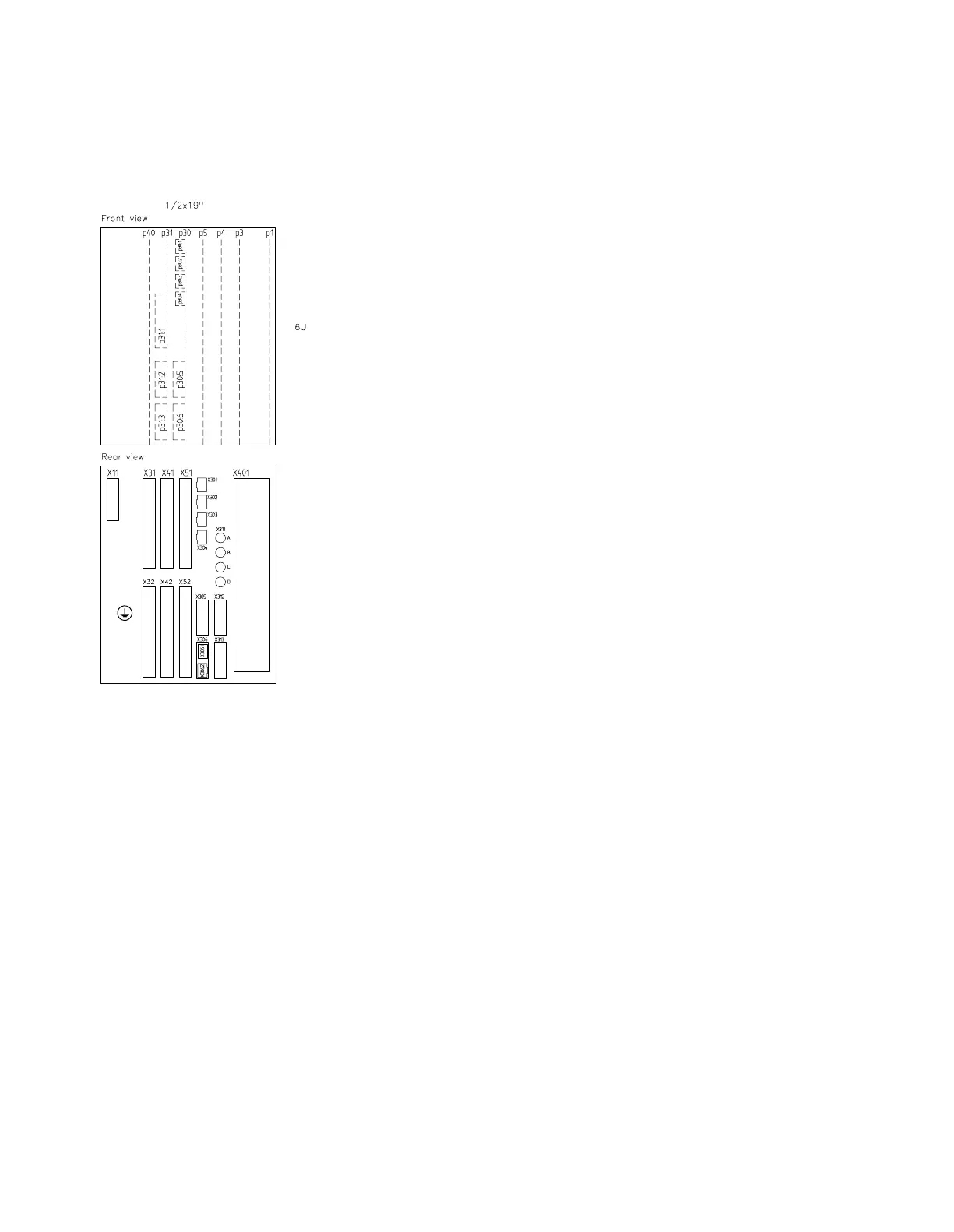

Table 4: Designations for 1/2 x 19” casing with 1 TRM slot
1MRK002801-AC-2-670-1.2-PG V.3 EN
1/1A
2/1B
3/3A
4/3B
5/5A6/5B
1MRK002801-AC-2-670-1.2-PG V5 EN-US
Rear position Module
X11 PSM
X31 and X32 etc. to X51 and X52 BIM, BOM, SOM, IOM or MIM
X301, X302, X303, X304 SFP
X305
LDCM
1)
X306
LDCM
1)
or OEM
X3061, X3062 SFP if OEM is selected
X311: A, B, C, D SLM
X312
LDCM
2)
, IRIG-B, GTM
X313
LDCM
2)
, IRIG-B, GTM, RS485
X401 TRM
1) SR LDCM, MR LDCM and LR LDCM
2) SR LDCM, MR LDCM, LR LDCM and X21 LDCM
1MRK514026-UUS Rev. P Section 6
Connecting
670 series 35
Installation manual
© 2017 - 2023 Hitachi Energy. All rights reserved
