23 EN

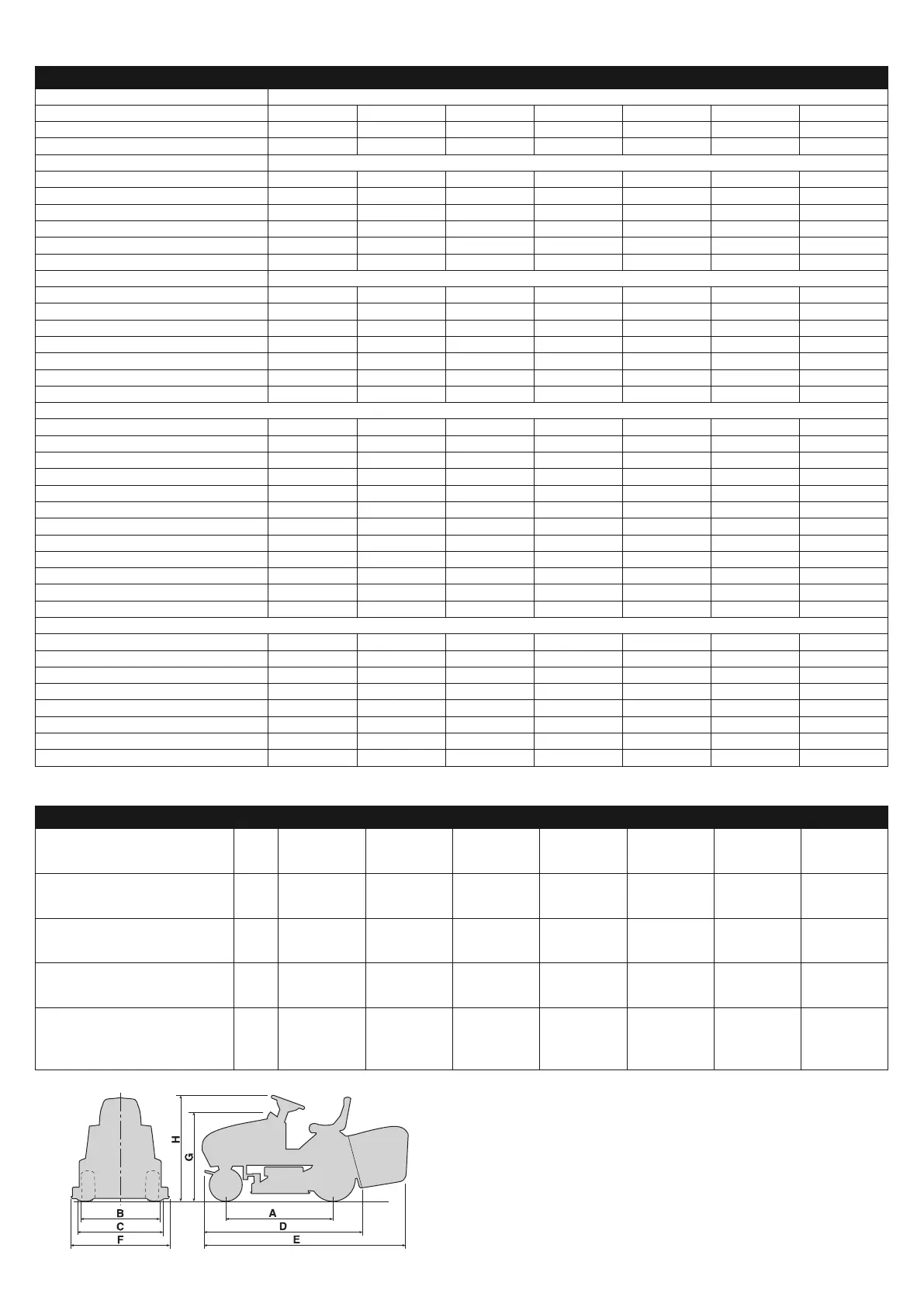

10. SPECIFICATIONS
(*) The power rating of the engine indicated in this document is the net power
output tested on a production engine for the engine models GCV520, GCV530
and GXV660H and and measured in accordance with SAE J1349 at 3600
r.p.m. (Net Power) and at 2800 r.p.m.(Net Torque). Mass production engines
may vary from this value. Actual power output for the engine installed in the
final machine will vary depending on numerous factors, including the operat-
ing speed of the engine in application, environmental conditions, mainte-
nance, and other variables.
MODELS HF2315SB• HF2315HM• HF2417HB• HF2417HM• HF2417HT• HF2622HM• HF2622HT•
Function Cutting of grass
Electric system 12 V 12V 12 V 12 V 12 V 12 V 12 V
Battery 24 Ah 24 Ah 24 Ah 24 Ah 24 Ah 24 Ah 24 Ah
Engine: HONDA type GCV520 GCV520 GCV530 GCV530 GCV530 GXV660H GXV660H
Cooling system Forced cooled air
Cylinder arrangement (4 stroke) 2 / 90 ° V 2 / 90 ° V 2 / 90 ° V 2 / 90 ° V 2 / 90 ° V 2 / 90 ° V 2 / 90 ° V
Valve arrangement OHC OHC OHC OHC OHC OHV OHV
Total displacement 530 cm
3
530 cm
3
530 cm
3
530 cm
3
530 cm
3
688 cm
3
688 cm
3
Net Engine Power (*) 9.8 kW / 3600 9.8 kW / 3600 11.3 kW / 3600 11.3 kW / 3600 11.3 kW / 3600 16 kW / 3600 16 kW / 3600
Nominal Engine Power 9.4 kW / 2800 9.4 kW / 2800 9.9 kW / 2800 9.9 kW / 2800 9.9 kW / 2800 13.9 kW / 2800 13.9 kW / 2800
Operating engine speed 2800 r.p.m. 2800 r.p.m. 2800 r.p.m. 2800 r.p.m. 2800 r.p.m. 2800 r.p.m. 2800 r.p.m.
Fuel type Unleaded
Oil capacity 1.2 liters 1.2 liters 1.2 liters 1.2 liters 1.2 liters 2.2 liters 2.2 liters
Front tyres 13 x 5.00-6 13 x 5.00-6 15 x 6.00-6 15 x 6.00-6 15 x 6.00-6 15 x 6.00-6 15 x 6.00-6
Rear tyres 18 x 8.50-8 18 x 8.50-8 18 x 8.50-8 18 x 8.50-8 18 x 8.50-8 18 x 8.50-8 18 x 8.50-8
Front tyres pressure 1.5 bar 1.5 bar 1.0 bar 1.0 bar 1.0 bar 1.0 bar 1.0 bar
Rear tyres pressure 1.2 bar 1.2 bar 1.2 bar 1.2 bar 1.2 bar 1.2 bar 1.2 bar
Fuel tank capacity 5.4 liters 5.4 liters 5.4 liters 8.5 liters 8.5 liters 8.5 liters 8.5 liters
Weight 216 kg 215 kg 230 kg 234 kg 245 kg 255 kg 264 kg
Forward speed
in Forward drive – 0 - 8.2 km/h 0 - 8.2 km/h 0 - 8.2 km/h 0 - 8.2 km/h 0 - 8.2 km/h 0 - 8.2 km/h
in 1
st
2.1 km/h – – – – – –
in 2
nd
3.5 km/h – – – – – –
in 3
nd
5.4 km/h – – – – – –
in 4
th
6.0 km/h – – – – – –
in 5
th
9.0 km/h – – – – – –
in reverse 2.6 km/h 0 - 4.2 km/h 0 - 4.2 km/h 0 - 4.2 km/h 0 - 4.2 km/h 0 - 4.2 km/h 0 - 4.2 km/h
Inside turning circle left inside 1.8 m 1.8 m 1.8 m 1.8 m 1.8 m 1.6 m 1.6 m
Cutting height 30 ÷ 80 mm 30 ÷ 80 mm 30 ÷ 90 mm 30 ÷ 90 mm 30 ÷ 90 mm 29 ÷ 90 mm 29 ÷ 90 mm
Cutting width 91 cm 91 cm 101 cm 101 cm 101 cm 122 cm 122 cm
Grass-catcher capacity 280 liters 280 liters 300 litri 300 liters 300 liters 350 liters 350 liters
Grass catcher system manual manual manual manual electric manual electric
Dimensions (mm)
A 1150 1150 1150 1150 1150 1150 1150
B 835 835 880 880 880 880 880
C 950 950 950 950 950 950 950
D 1790 1870 1870 1870 1870 1870 1870
E 2400 2480 2480 2480 2480 2480 2480
F 960 960 1050 1050 1050 1260 1260
G 980 980 990 990 990 990 990
H 1110 1110 1120 1120 1120 1120 1120
MODELS HF2315SB• HF2315HM•
HF2417HB•
HF2417HM• HF2417HT• HF2622HM• HF2622HT•
Guaranteed acoustic power level
(2000/14/EC. 2005/88/EC)
dB(A) 100 100 100 100 100 105 105
Measured acoustic power level
(2000/14/EC. 2005/88/EC)
Measuring uncertainty
dB(A)
dB(A)
99.30
1.09
99.30
1.09
99.91
0.34
99.91
0.34
99,91
0.34
104.67
0.38
104.67
0.38
Sound pressure level at the ear
(EN836:1997+A4:2011)
Measuring uncertainty
dB(A)
dB(A)
85
0.8
85
0.8
86
1.6
86
1.59
86
1.6
89
0.4
89
0.4
Real measured value
of acceleration on seat (EN 1032)
Measuring uncertainty
m/sec
2
m/sec
2
0.8
0.3
0.8
0.3
1.3
0.3
1.3
0.3
1.3
0.3
0.8
0.3
0.8
0.3
Real value of acceleration
onsteeringwheel
Measuring uncertainty
m/sec
2
m/sec
2
2.9
0.3
2.9
0.3
2.8
0.4
2.8
0.4
2.8
0.4
4.0
0.5
4.0
0.5
Maximum noise and vibration levels
(EN836:1997+A4:2011)
