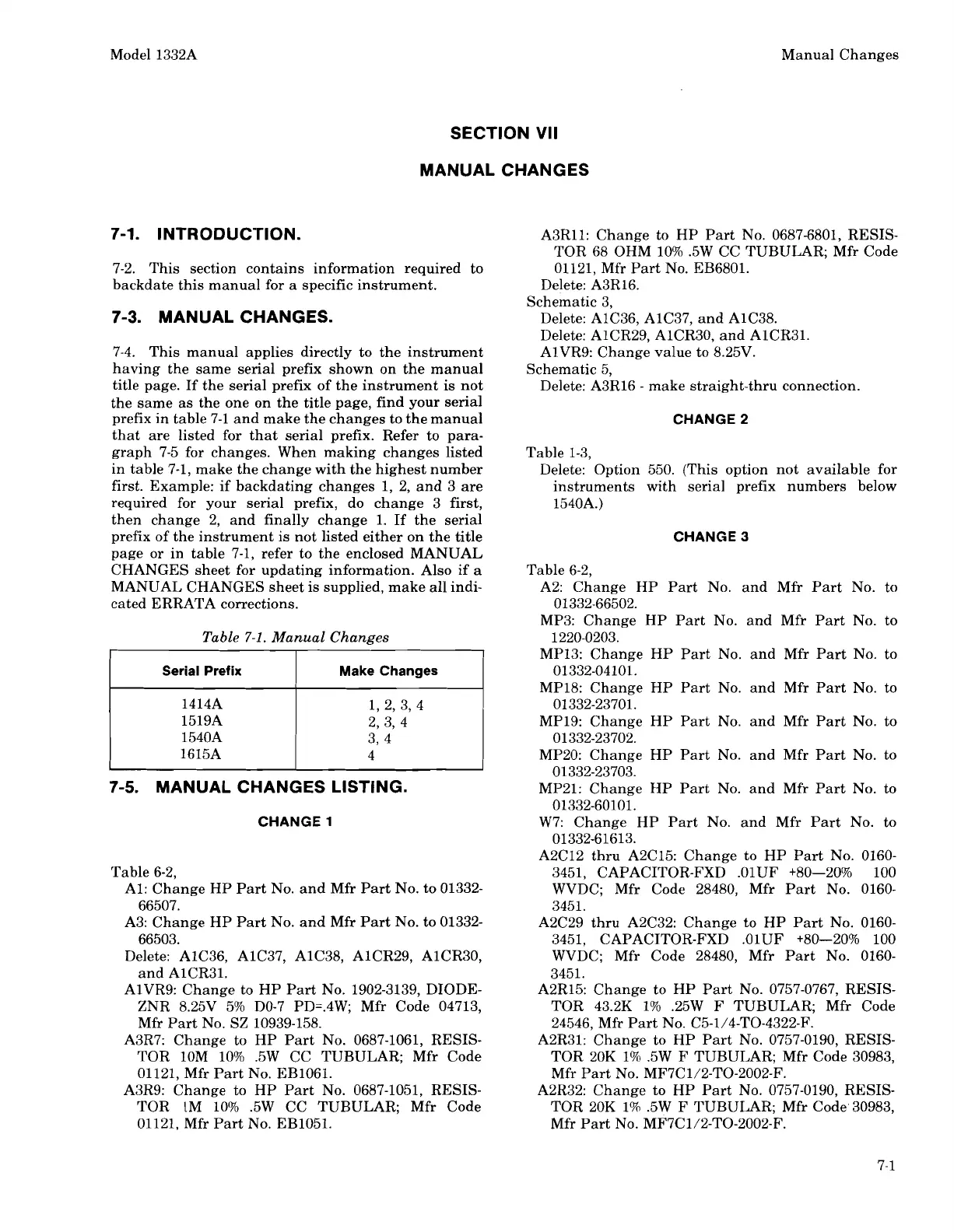

Model 1332A
SECTION VII
MANUAL CHANGES
Manual Changes
7-1.
INTRODUCTION.
7-2. This section contains information required to
backdate this manual for a specific instrument.
7-3.
MANUAL CHANGES.
7-4. This manual applies directly to the instrument
having the same serial prefix shown on the manual
title page. If the serial prefix of the instrument
is
not
the same as the one on the title page, find your serial
prefix in table 7-1 and make the changes to the manual
that are listed for that serial prefix. Refer to para-
graph 7-5 for changes. When making changes listed
in table 7-1, make the change with the highest number
first. Example: if backdating changes 1, 2, and 3 are
required for your serial prefix, do change 3 first,
then change 2, and finally change
1.
If the serial
prefix of the instrument is not listed either on the title
page or in table 7-1, refer to the enclosed MANUAL
CHANGES sheet for updating information. Also if a
MANUAL CHANGES sheet
is
supplied, make all indi-
cated ERRATA corrections.
Table
7-1.
Manual Changes
I
I
I
Serial Prefix
I
Make Changes
I
-
-
-
--
7-5.
MANUAL CHANGES LISTING.
CHANGE
1
Table 6-2,
Al: Change HP Part No. and
Mfr Part No. to 01332-
66507.
A3: Change HP Part No. and Mfr Part No. to
01332-
66503.
Delete:
AlC36, AlC37, AlC38, AlCR29, AlCR30,
and AlCR31.
AlVR9: Change to HP Part No. 1902-3139, DIODE-
ZNR 8.25V 5% DO-7 PD=.4W; Mfr Code 04713,
Mfr Part No. SZ 10939-158.
A3R7: Change to HP Part No. 0687-1061, RESIS-
TOR
10M 10% .5W CC TUBULAR; Mfr Code
01121, Mfr Part No.
EB1061.
A3R9: Change to HP Part No. 0687-1051, RESIS-
TOR
IM 10% .5W CC TUBULAR; Mfr Code
01121, Mfr Part No. EB1051.
A3Rll: Change to HP Part No. 0687-6801, RESIS-
TOR 68 OHM 10%
.5W CC TUBULAR; Mfr Code
01121, Mfr Part No.
EB6801.
Delete: A3R16.
Schematic 3,
Delete:
AlC36, AlC37, and AlC38.
Delete: AlCR29, AlCR30, and AlCR31.
AlVR9: Change value to 8.25V.
Schematic 5,
Delete:
A3R16
-
make straight-thru connection.
CHANGE
2
Table 1-3,
Delete: Option 550. (This option not available for
instruments with serial prefix numbers below
1540A.l
CHANGE
3
Table 6-2,
A2: Change HP Part No. and Mfr Part No. to
01332-66502.
MP3: Change HP Part No. and Mfr Part No. to
1220-0203.
MP13: Change HP Part No. and Mfr Part No. to
01332-04101.
MP18: Change HP Part No. and Mfr Part No. to
01332-23701.
MP19: Change HP Part No. and Mfr Part No. to
01332-23702.
MP20: Change HP Part No. and Mfr Part No. to
01332-23703.
MP21: Change HP Part No. and Mfr Part No. to
01332-60101.
W7: Change HP Part No. and Mfr Part No. to
01332-61613.
A2C12 thru A2C15: Change to HP Part No. 0160-
3451, CAPACITOR-FXD .OlUF +80-20% 100
WVDC; Mfr Code 28480, Mfr Part No.
0160-
3451.
A2C29 thru A2C32: Change to HP Part No. 0160-
3451, CAPACITOR-FXD .OlUF +80-20% 100
WVDC; Mfr Code 28480, Mfr Part No. 0160-
3451.
A2R15: Change to HP Part No. 0757-0767, RESIS-
TOR
43.2K 1% .25W
F
TUBULAR; Mfr Code
24546, Mfr Part No.
C5-1/4-TO-4322-F.
A2R31: Change to HP Part No. 0757-0190, RESIS-
TOR 20K
1% .5W
F
TUBULAR, Mfr Code 30983,
Mfr Part No.
MF7C1/2-TO-2002-F.
A2R32: Change to HP Part No. 0757-0190, RESIS-
TOR 20K
1% .5W F TUBULAR; Mfr Code 30983,
Mfr Part No. MF7C1/2-TO-2002-F.
