General Information
Model
1332A
Table

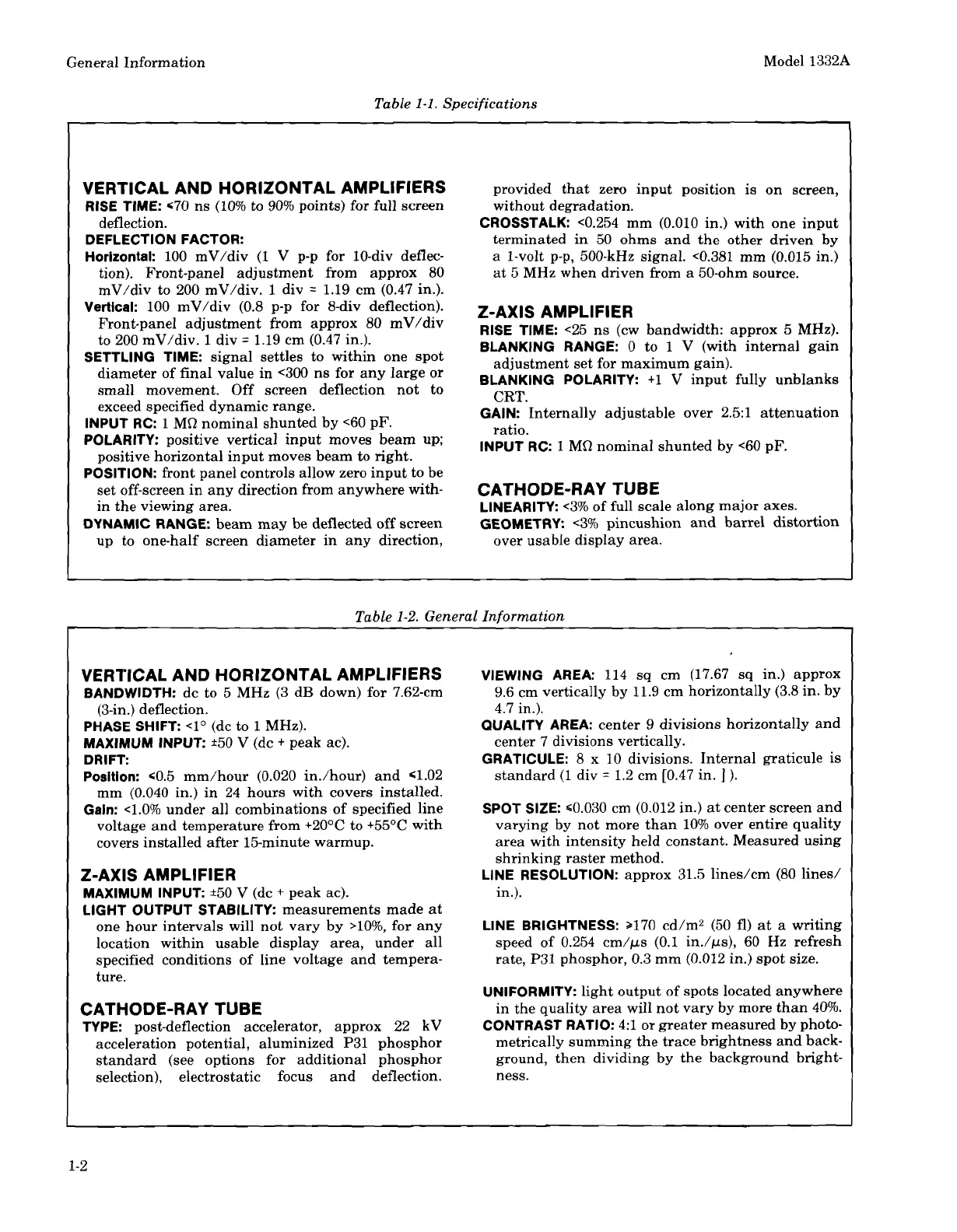

1-1.
Specifications
VERTICAL AND HORIZONTAL AMPLIFIERS
provided that zero input position is on screen,
RISE TIME:
c70 ns (10% to 90% points) for full screen without degradation.
deflection.
CROSSTALK:
<0.254 mm (0.010 in.) with one input
DEFLECTION FACTOR:
terminated in 50 ohms and the other driven by
Horizontal:
100 mV/div (1 V p-p for 10-div deflec-
a 1-volt p-p, 500-kHz signal. <0.381
mm
(0.015 in.)
tion). Front-panel adjustment from approx 80 at 5 MHz when driven from a 50-ohm source.
mV/div to 200 mV/div.
1
div
=
1.19 cm (0.47 in.).
Vertical:
100 mV/div (0.8 p-p for 8-div deflection).
Z-AXIS
AMPLIFIER
Front-panel adjustment from approx 80 mV/div
RISE TIME:
<25
ns
(cw bandwidth:
approx
5
MH~).
to 200 mV/div. 1 div
=
1.19 cm (0.47 in.).
BLANKING RANGE:
0 to 1 V (with internal gain
SETTLING TIME:
signal settles to within one spot
adjustment set for maximum gain).
diameter of final value
in <300 ns for any large or
POLARITY:
v
input
fully unblanks
small movement. Off screen deflection not to
exceed specified dynamic range.
CRT.
GAIN:
Internally adjustable over 2.5:l attenuation
INPUT RC:
1 MQ nominal shunted by <60 pF.
ratio.
POLARITY:
positive vertical input moves beam up;
RC:
MQ
nominal
shunted
by
<60
pF.
positive horizontal input moves beam to right.
POSITION:
front panel controls allow zero input to be
set off-screen in any direction from anywhere with-
CATHODE-RAY TUBE
in the viewing area.
LINEARITY:
<3% of full scale along major axes.
DYNAMIC RANGE:
beam may be deflected off screen
GEOMETRY:
<3%
pincushion and barrel distortion
up to one-half screen diameter in any direction,
over usable display area.
Table
1-2.
General Information
VERTICAL AND HORIZONTAL AMPLIFIERS
BANDWIDTH:
dc to 5
MHz
(3
dB
down) for 7.62-cm
(%in.) deflection.
PHASE SHIFT:
<lo
(dc to
1
MHz).
MAXIMUM INPUT:
*50 V (dc
+
peak ac).
DRIFT:
Position:
c0.5 mm/hour (0.020 in./hour) and s1.02
mm (0.040 in.) in 24 hours with covers installed.
Galn:
4.0% under all combinations of specified line
voltage and temperature from
+20°C to +55OC with
covers installed after 15-minute
warmup.
Z-AXIS AMPLIFIER
MAXIMUM INPUT:
*50
V
(dc
+
peak ac).
LIGHT OUTPUT STABILITY:
measurements made at
one hour intervals will not vary by
>lo%, for any
location within usable display area, under all
specified conditions of line voltage and tempera-
ture.
CATHODE-RAY TUBE
TYPE:
post-deflection accelerator, approx 22 kV
acceleration potential, aluminized P31 phosphor
standard (see options for additional phosphor
selection), electrostatic focus and deflection.
VIEWING AREA:
114 sq cm (17.67 sq in.) approx
9.6 cm vertically by 11.9 cm horizontally (3.8 in. by
4.7 in.).
QUALITY AREA:
center 9 divisions horizontally and
center 7 divisions vertically.
GRATICULE:
8
x 10 divisions. Internal graticule is
standard (1 div
=
1.2 cm [0.47 in.
]
).
SPOT SIZE:
c0.030 cm (0.012 in.) at center screen and
varying by not more than 10% over entire quality
area with intensity held constant. Measured using
shrinking raster method.
LINE RESOLUTION:
approx 31.5 lines/cm (80 lines/
in.).
LINE BRIGHTNESS:
,170 cd/m2 (50 fl) at a writing
speed of 0.254
cm/ps (0.1 in./ps), 60 Hz refresh
rate, P31 phosphor, 0.3 mm (0.012 in.) spot size.
UNIFORMITY:
light output of spots located anywhere
in the quality area will not vary by more than 40%.
CONTRAST RATIO:
4:1 or greater measured by photo-
metrically summing the trace brightness and back-
ground, then dividing by the background bright-
ness.
