HP ProLiant DL320 Generation 2 User Manual

Removal and Replacement Procedures
Optical Device/Diskette Drive Assembly Backplane
To remove the optical device/diskette drive assembly backplane:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Server Access Panel” in this chapter.
3. Remove the shipping/ejector key. See “Shipping/Ejector Key” in this chapter.
4. Remove the optical device/diskette drive assembly or bezel blank. See
“Optical Device/Diskette Drive Assembly” or “Bezel Blank” in this chapter.
5. Disconnect the optical device/diskette drive assembly cable from the
optical device/diskette drive assembly backplane (1).
6. Carefully pull back and hold the plastic retaining clip (2).
7. Lift the backplane vertically until it unseats from the drive bracket and user interface
board (3).

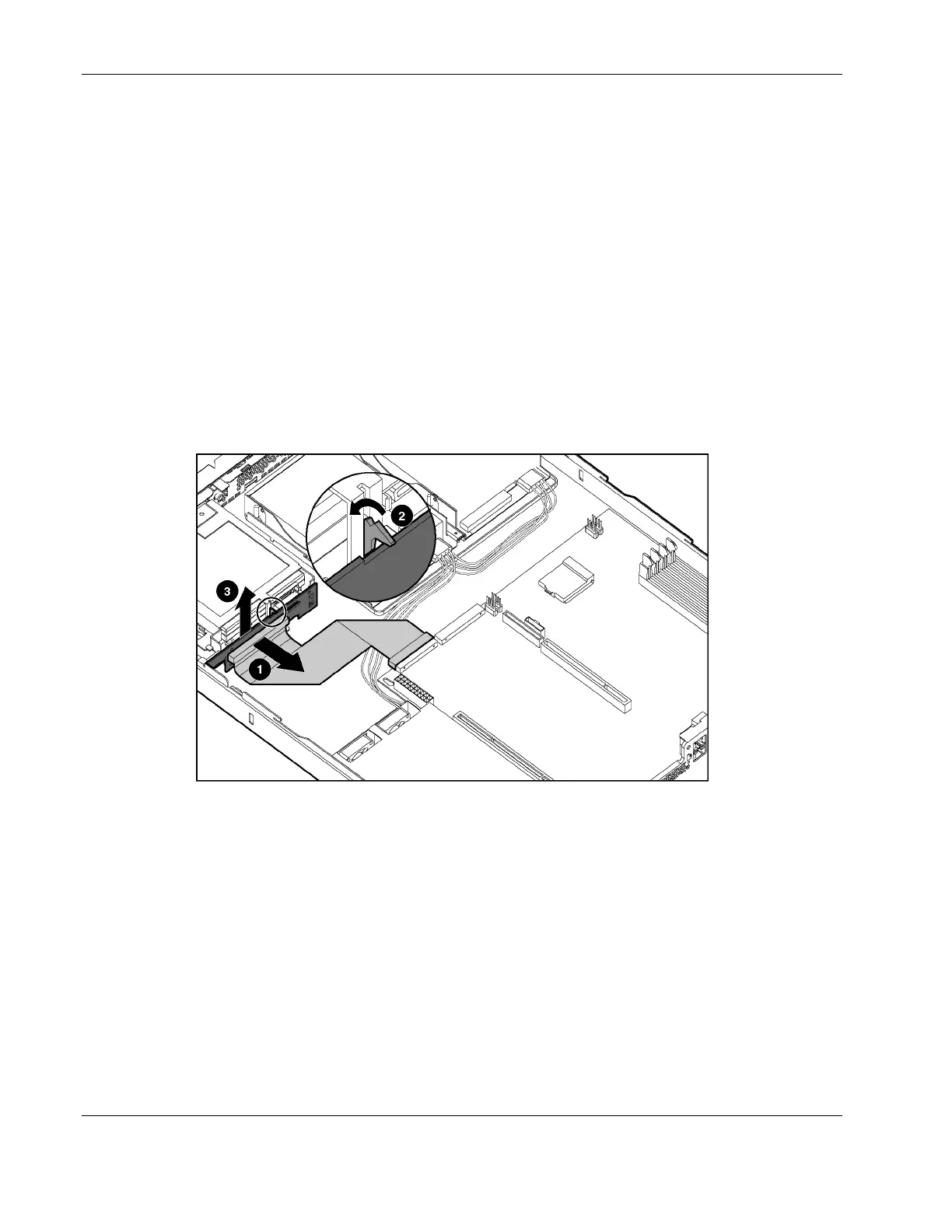

Figure 2-14: Removing the optical device/diskette drive assembly
backplane (center wall removed for clarity)
Reverse steps 1 through 7 to replace the optical device/diskette drive assembly backplane.
