HP ProLiant DL320 Generation 2 User Manual

Removal and Replacement Procedures
PCI Card Guide
To remove a PCI card guide:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
3. Remove the PCI riser board assembly. See “PCI Riser Board Assembly” in this chapter.
4. Remove the expansion board. See “Expansion Board” in this chapter.
5. Press and hold the guide latch to release the PCI card guide (1).
6. Slide the PCI card guide toward the open end of the riser board assembly for removal (2).

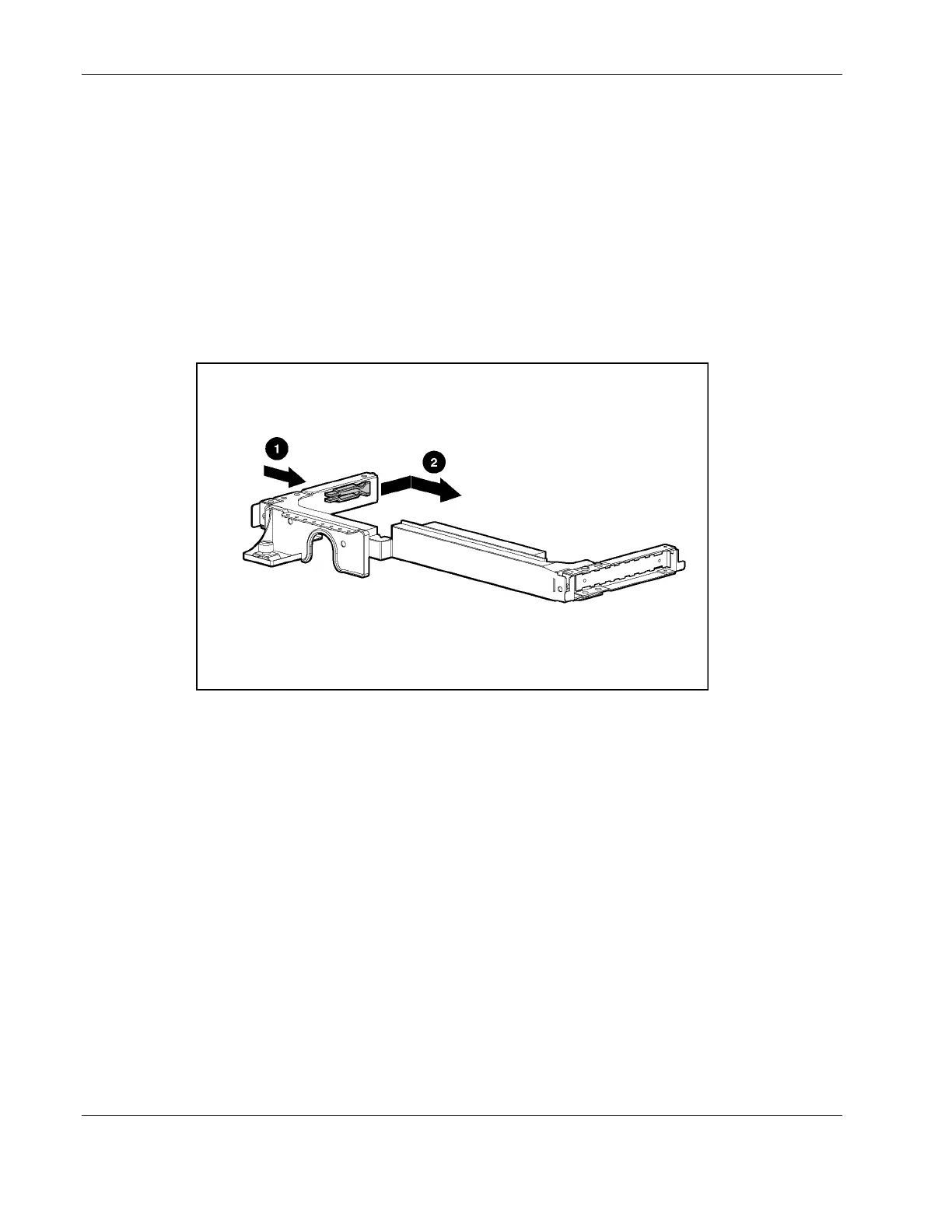

Figure 2-18: Removing the PCI card guide
Reverse steps 1 through 6, omitting step 5, to replace a PCI card guide.
2-24 HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide
