HP ProLiant DL320 Generation 2 User Manual

Removal and Replacement Procedures
14. Remove all Phillips head screws that secure the system board to the chassis (1).
15. Slide the system board 0.7 mm (0.25 in) toward the front of the chassis, ensuring that the
board unseats from all the alignment keys, and lift the board up and away from the
keys (2).

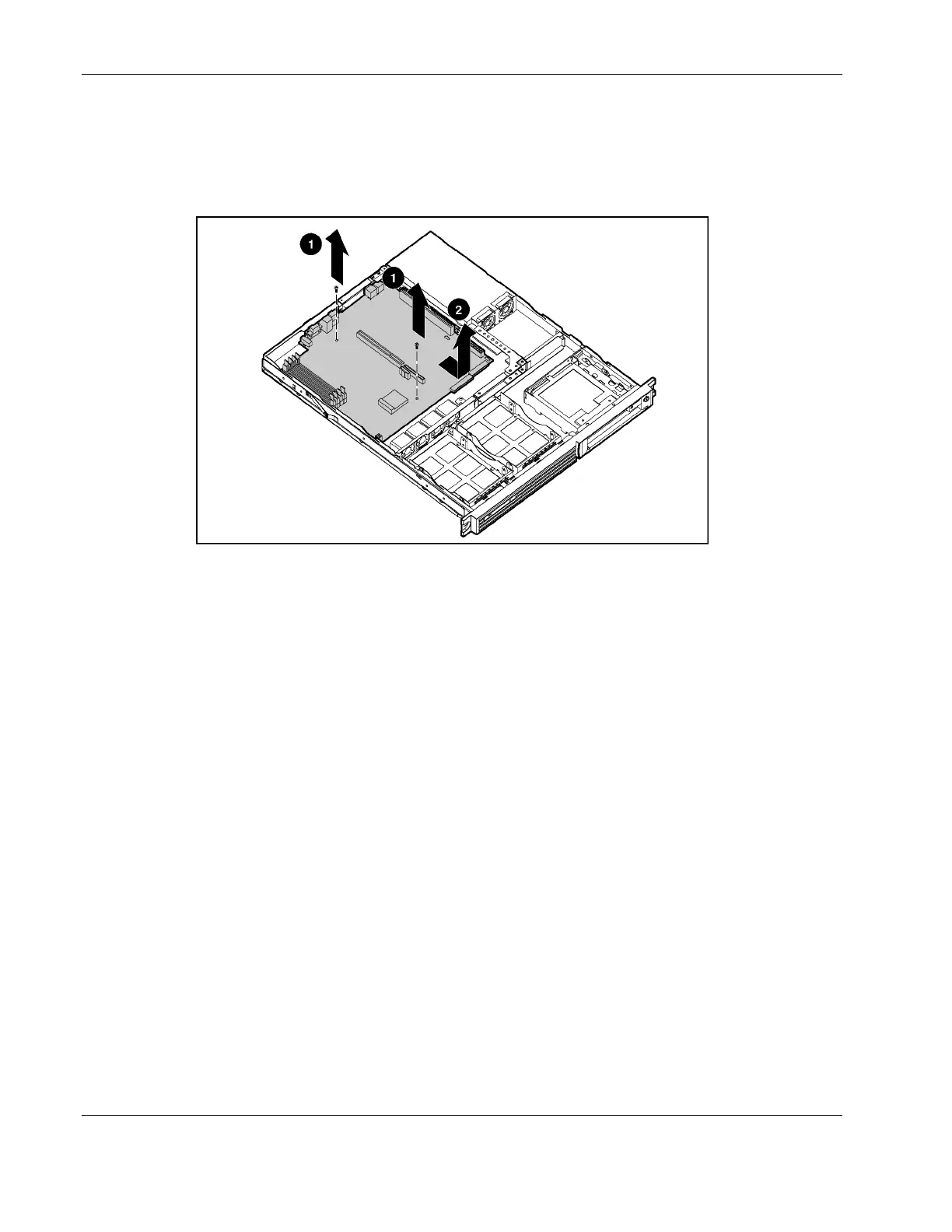

Figure 2-36: Removing the system board
Reverse steps 1 through 14 to replace the system board.
IMPORTANT: The server serial number must be re-entered through RBSU after replacing the system
board. Refer to “Re-entering the Server Serial Number” in this chapter.
Re-entering the Server Serial Number
After replacing the server host module or clearing the NVRAM, the server serial number
must be re-entered. To re-enter the serial number:
During the server startup sequence, press the F9 key to access RBSU.
1. Select the System Options menu.
2. Select Serial Number. The following warning is displayed:
WARNING! WARNING! WARNING! The serial number is loaded into the
system during the manufacturing process and should NOT be
modified. This option should ONLY be used by qualified service
personnel. This value should always match the serial number
sticker located on the chassis.
Press the Enter key to clear the warning.
3. Enter the serial number and press the Enter key.
4. Press the Escape key to close the menu.
2-42 HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide
