Internal LED Indicator
The system board contains an internal power status LED for use during troubleshooting
operations. When the LED is illuminated, adequate power is available to the system from the
power supply. If the LED is not illuminated, either the power cord is not connected or the
power supply has failed.

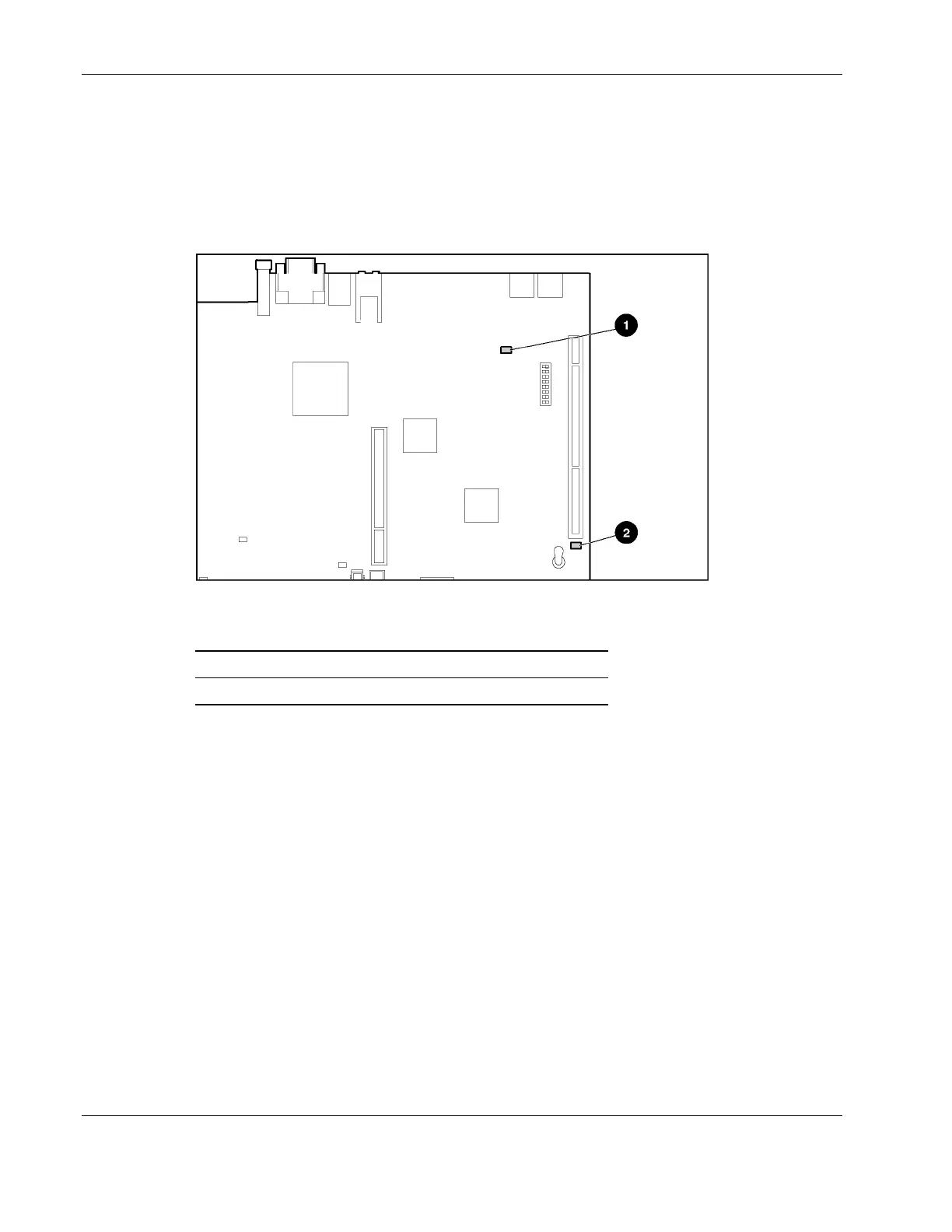

Figure 4-7: Power status LEDs
Item Description
1 Power supply
2 Auxiliary power supply
