Removal and Replacement Procedures
ATA Cables
To remove the ATA cables:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
3. Remove the PCI riser board assembly. See “PCI Riser Board Assembly” in this chapter.
4. Remove the center wall. See “Center Wall” in this chapter.
5. Disconnect the ATA cable from the secondary ATA controller (1) and hard drive
connector (2).
6. Disconnect the ATA cable from the primary ATA controller (3) and hard drive
connector (4).

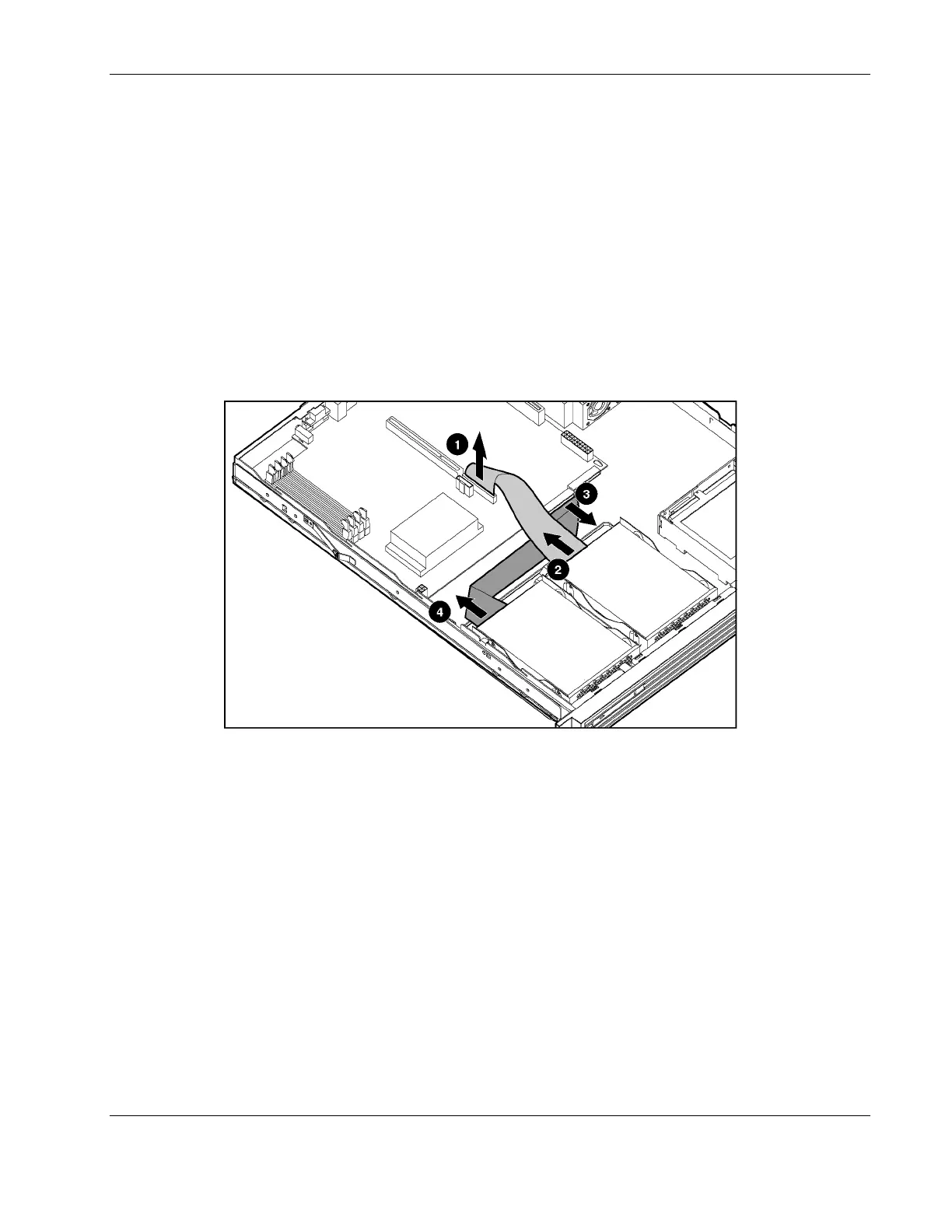

Figure 2-24: Disconnecting the ATA cables
Reverse steps 1 through 6 to replace the ATA cables.
HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide 2-29
