Removal and Replacement Procedures
Cables
The following sections of this guide contain removal and replacement procedures for the
standard cables that ship with the server:
•
•
•
Two-Device Terminated SCSI cable
ATA cables
Optical Device/Diskette Drive Assembly cable
Two-Device Terminated SCSI Cable
To remove the two-device terminated SCSI cable:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
3. Remove the PCI riser board assembly. See “PCI Riser Board Assembly” in this chapter.
4. Remove the center wall. See “Center Wall” in this chapter.
5. Disconnect the SCSI cable from the hard drives (1).
6. Disconnect the SCSI cable from the SCSI module (2).

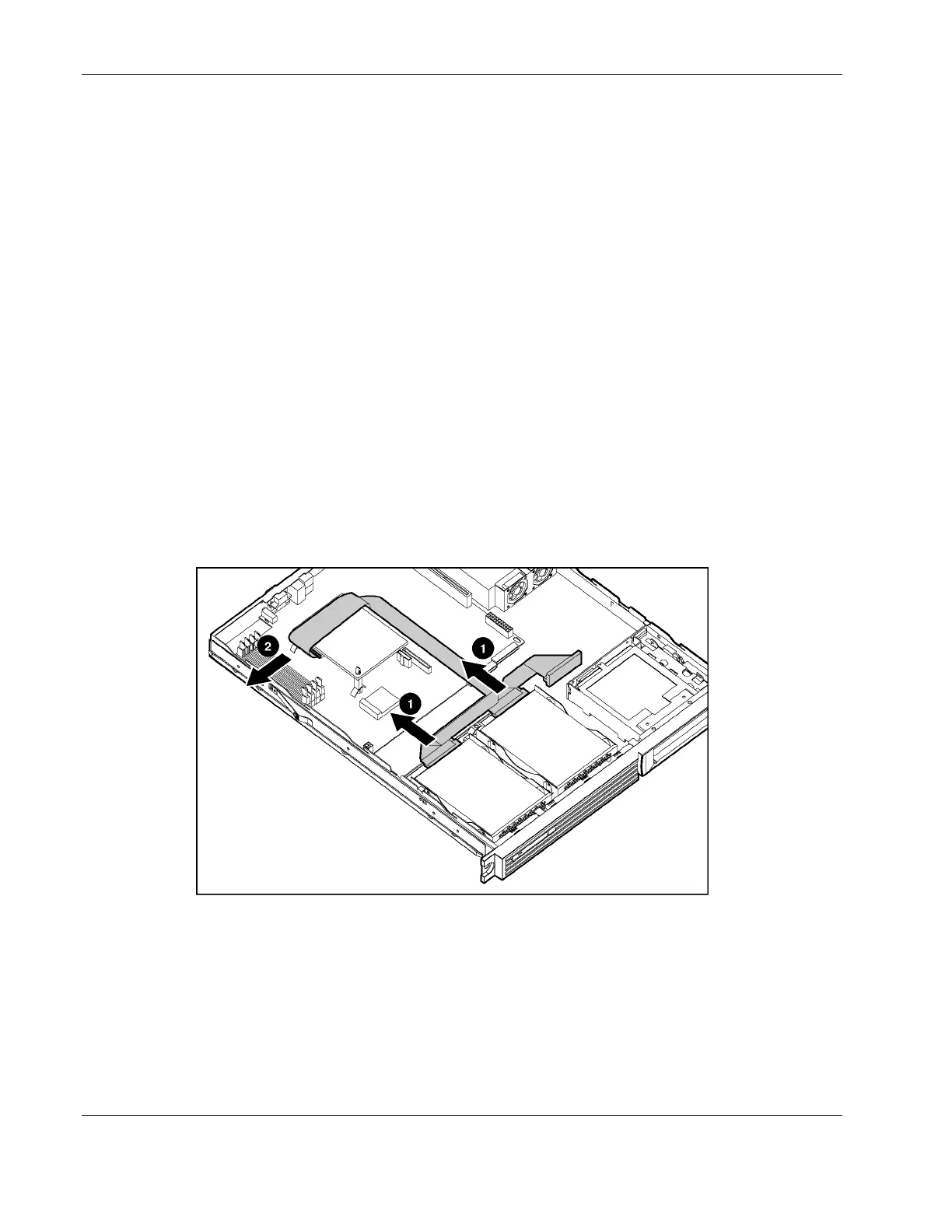

Figure 2-23: Disconnecting the two-device terminated SCSI cable
Reverse steps 1 through 6 to replace the two-device terminated SCSI cable.
2-28 HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide
