HP ZBook 17 G5 User Manual

Connector types
IMPORTANT: Connector pins and connector gold ngers should not be touched directly with bare hands.
There are several dierent types of connectors on the system board with dierent requirements for cable
removal or insertion.

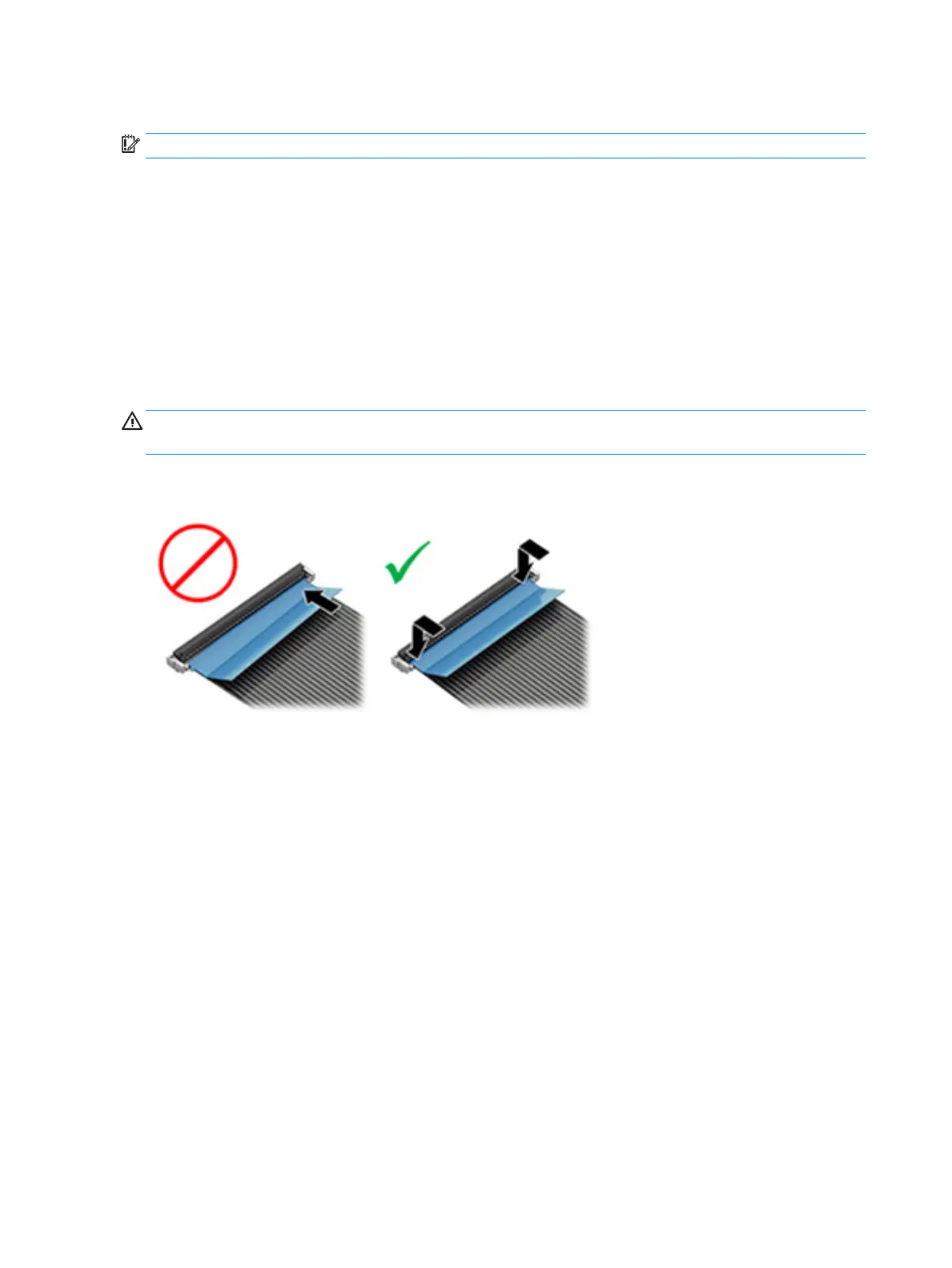

Flex cable
When connecting ex cables to a ZIF connector, rotate the latch to 90 degrees, push the cable completely,
evenly into the connector, and then close the latch.
When removing ex cables from a ZIF connector on the system board, the latch must be released before the
cable can be removed. Always follow these steps:
1. Flip the connector latch 90 degrees to release the cable.
2. Grasp the cable end of the connector and pull it straight out.
CAUTION: Always release connector latch before removing the cable. Otherwise, pulling the cable could
damage the cable pins and result in a failed device.
Horizontal installation cable
Use at tool to pull connector evenly. Do not pull on cable to remove.
Slide connector into receptacle on same horizontal plane as board and use at tool to push evenly into
receptacle.
174 Chapter 7 Troubleshooting guide
