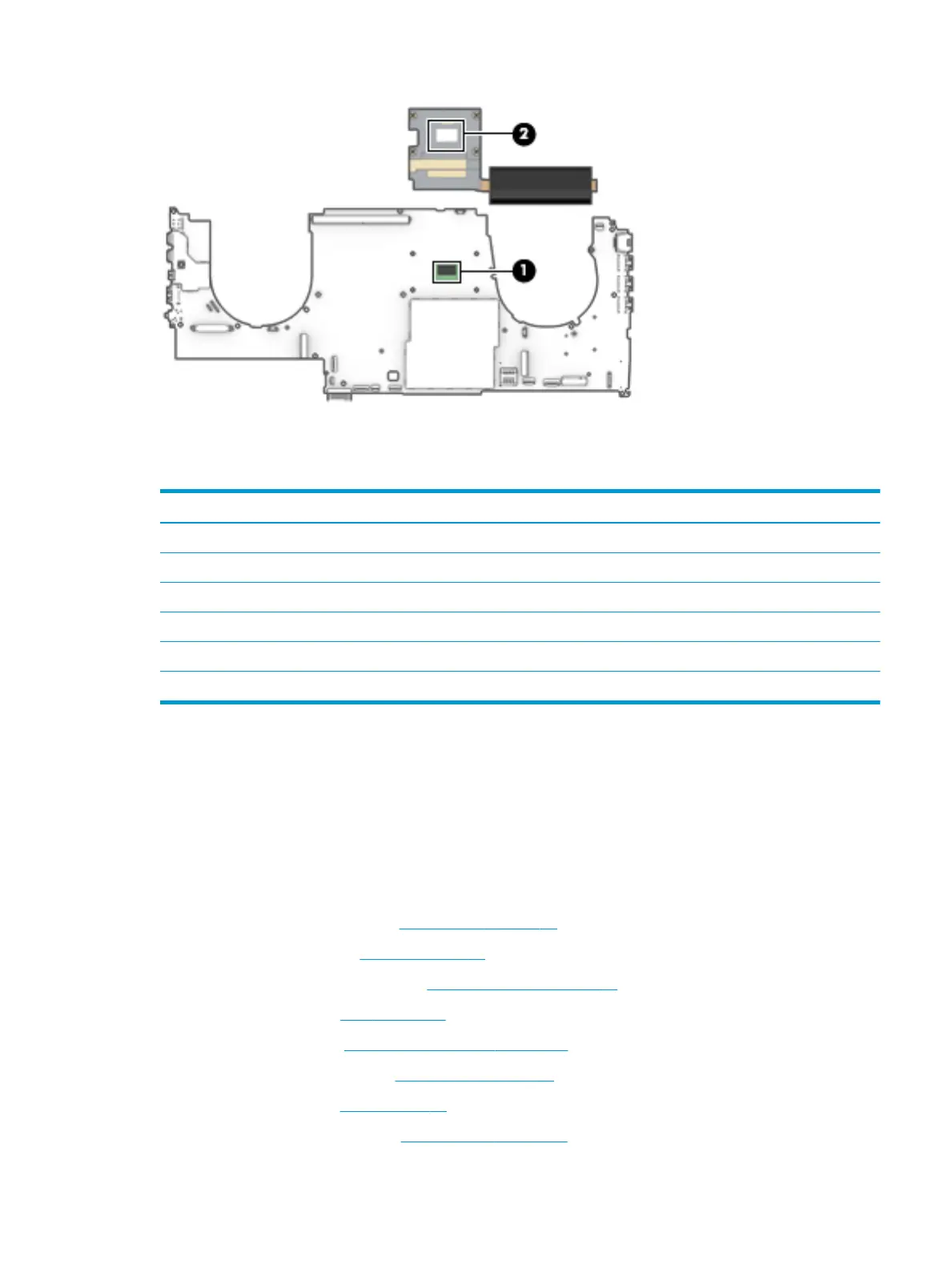

Reverse this procedure to install the heat sink.
Discrete MXM daughter card
Description Spare part number
AMD Radeon Pro WX 4170 4 GB L30654-001
NVIDIA Quadro P1000 4 GB L30655-001
NVIDIA Quadro P2000 4 GB L30656-001
NVIDIA Quadro P3200 6 GB L30657-001
NVIDIA Quadro P4200 8 GB L30658-001
NVIDIA Quadro P5200 16 GB L30659-001
Before removing the discrete MXM daughter card, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the any smart cards and memory cards.
5. Remove the bottom cover (see Service door on page 41).
6. Remove the battery (see Battery on page 43).
7. Remove the memory modules (see Memory modules on page 51).
8. Remove the ODD (see ODD on page 48).
9. Remove the SSDs (see Solid-state drive (SSD) on page 46).
10. Remove the middle cover (see Middle cover on page 61).
11. Remove the fans (see Fans on page 70).
12. Remove the system board (see System board on page 72).
Component replacement procedures 77
