NFC module
Description Spare part number
NFC module (includes antenna and TouchPad foam) L02249-001
Before removing the NFC module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the any smart cards and memory cards.
5. Remove the bottom cover (see Service door on page 41).
6. Remove the battery (see Battery on page 43).
7. Remove the memory modules (see Memory modules on page 51).
8. Remove the ODD (see ODD on page 48).
9. Remove the SSDs (see Solid-state drive (SSD) on page 46).
10. Remove the middle cover (see Middle cover on page 61).

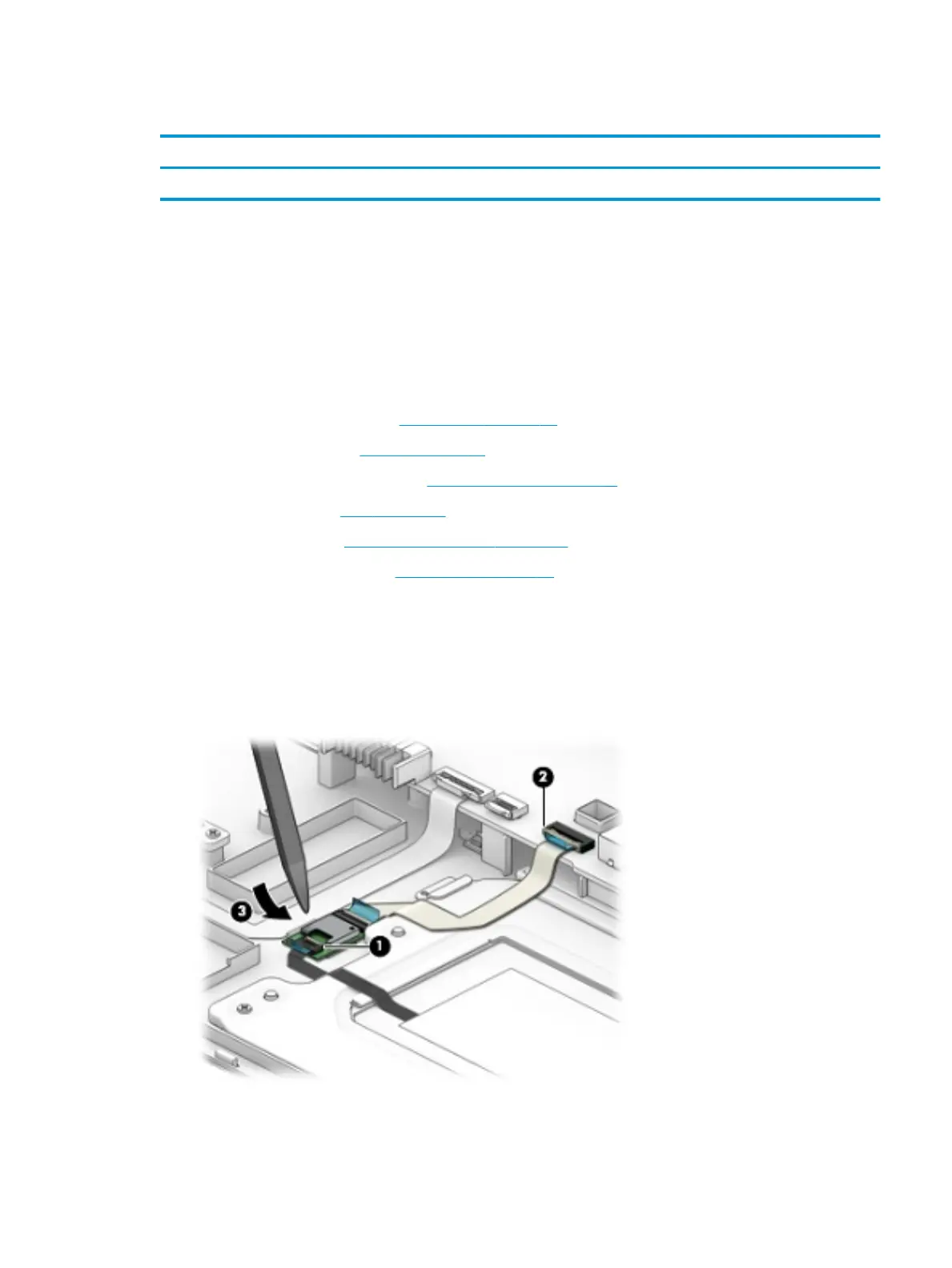

Remove the NFC module:
1. Disconnect the TouchPad cable (1) from the NFC module.
2. Disconnect the NFC cable (2) from the system board.
3. Use a tool (3) to release the NFC module from the adhesive securing it to the computer, and then remove
the module from the computer.
Reverse the removal procedures to install the NFC module.
Component replacement procedures 67
