ANTI-VIBRATION SYSTEM
Dismantling
Description
The anti-vibration system reduces the vibra-
tions which pass from the engine and cutting
equipment to the handles. The anti-vibration
system consists either of rubber elements or
coil springs.
The system’s movement limitation consists
of side absorbers and/or stop screws.

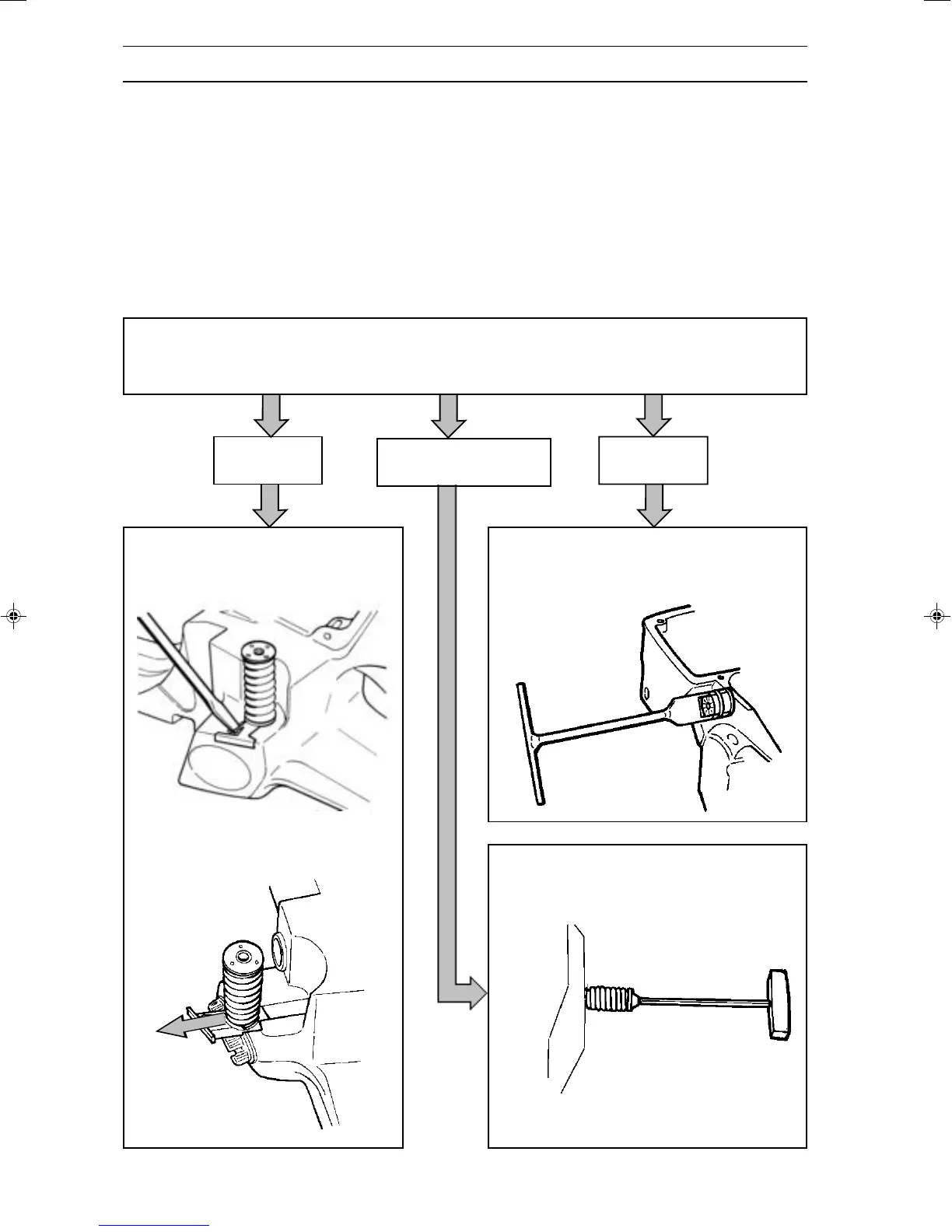

Remove the rubber element using re-
spective tools as shown in the figure
below.
Saws 40, 45 and 3120
Saw 394
Other saws
The tank unit must be removed from the engine sub-assembly to access the anti-vibration system.
See the previous pages.
Release the catch on the plastic key.
Remove the spring element using an allen
key as shown below.
Slide off the spring and its holder.
Eng, p 83-124 96-09-13, 11.15106
