Husqvarna 268 User Manual

English – 83
CARBURETTOR
Description
The diagrams in this description do not
correspond with the carburettor fitted on
the chain saws. They serve only to show
the principles of design and operation.

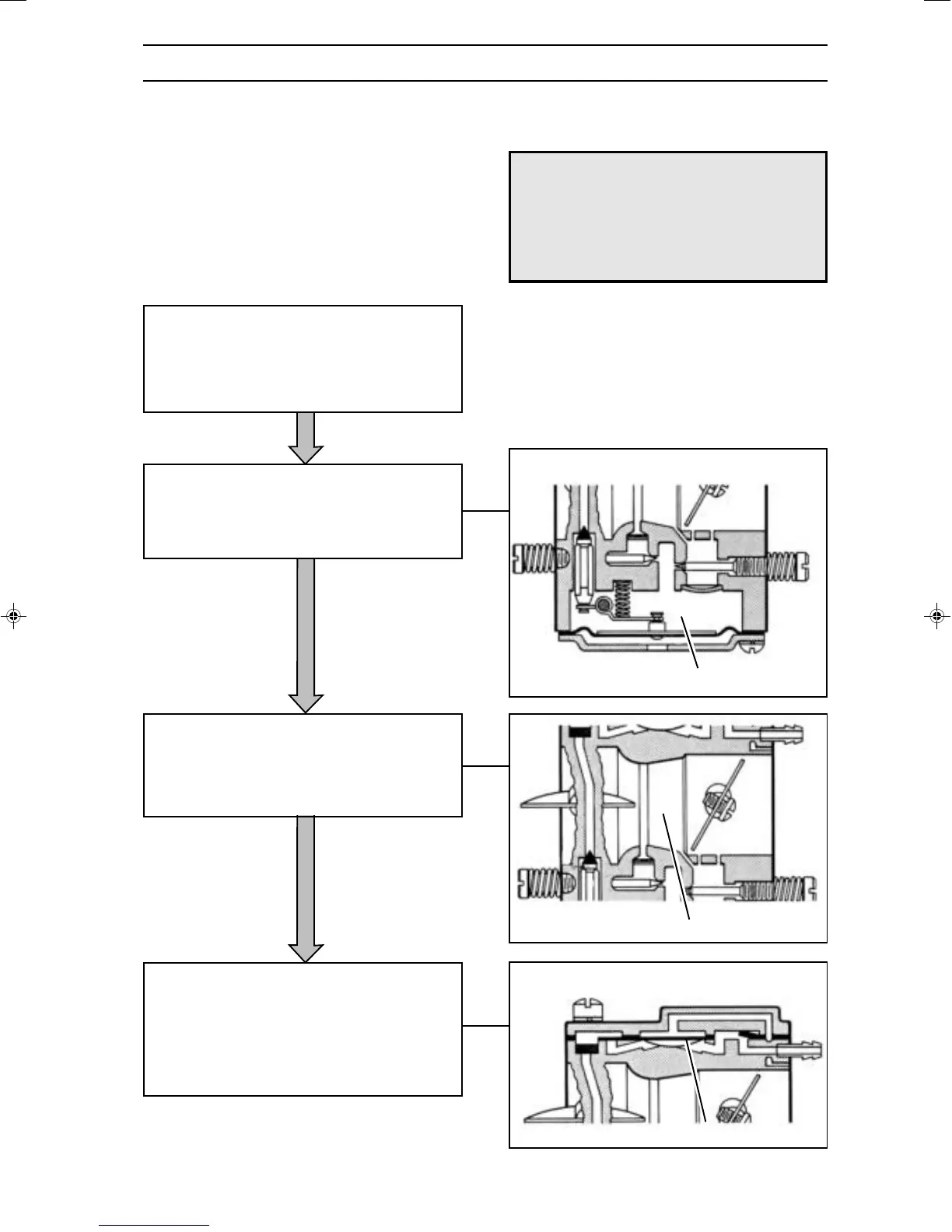

Design
B
C
A
The metering unit (A) contains the jets and
fuel control functions. It is here the correct
amount of fuel for the given engine speed
and power is metered.
The mixing venturi (B) houses the choke,
throttle valve and diffuser jets. Here air is
mixed with the fuel to give a fuel/air
mixture that can be ignited by the ignition
spark.
The carburettor consists of three sub-systems:
• Metering unit, A.
• Mixing venturi, B.
• Pump unit, C.
In the pump unit (C), fuel is pumped from the
fuel tank to the metering unit. One side of the
pump diaphragm is connected to the crankcase
and pulses in time with the pressure changes in
the crankcase. The other side of the diaphragm
pumps the fuel.
WARNING!
The fuel used in the chain saw poses
the following hazards:
1. The liquid and its vapours are
poisonous.
2. Can cause skin irritation.
3. Is highly inflammable.
!
Eng, p 83-124 96-09-13, 11.0883

Husqvarna 268 Specifications

General

Engine displacement	66.7 cc
Weight	6.2 kg (without cutting equipment)
Fuel tank volume	0.75 liters
Oil tank volume	0.4 liters
Chain pitch	3/8 inch
Bar length	40-70 cm (16-28 in)
