Husqvarna 268 User Manual

English – 67
Dismantling
Remove the bar and chain. See the operat-
ing instructions.
On 268K and 272K, remove the cutting
attachment. See the operating instructions.
On 272S, remove the grinder attachment.
See the operating instructions.
Use a spanner and remove the clutch. On
saws 36 and 41 use the service tool no. 530
03 11-12.
Note! Left-hand thread.
Saws with three
coil springs.
Remove the spring by first
lifting a shoe using a suitable
spacer (A).
Then remove the clutch
shoes.
Remove the springs using a
screwdriver.
Then remove the clutch
shoes.
Saws with one
long spring.
Prise out the spring heels
using a screwdriver. Remove
the springs from the other
side using circlip pliers. Then
remove the clutch shoes.

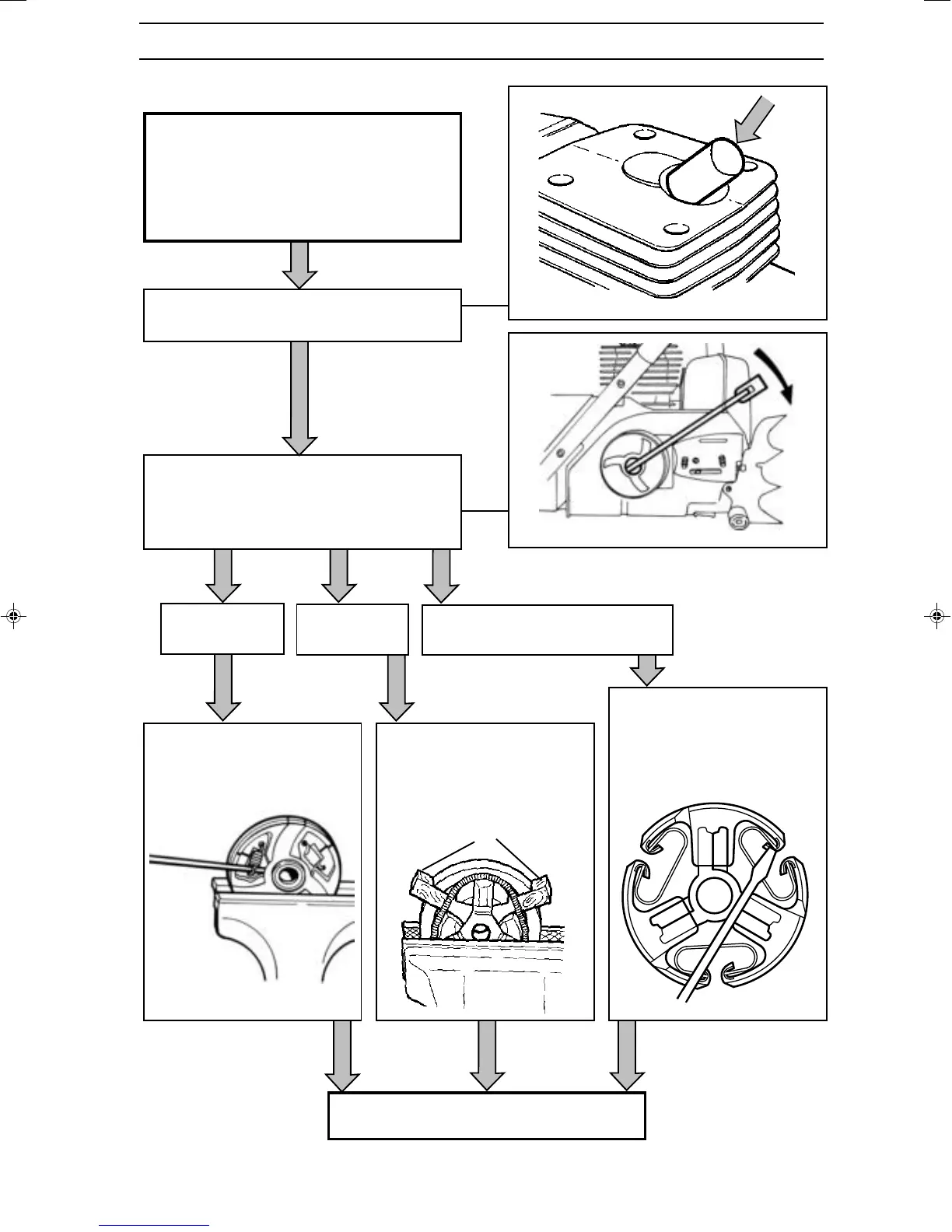

CENTRIFUGAL CLUTCH
A
Remove the spark plug and insert the piston
stop.
Saws with three C-springs.
Remove the clutch drum and needle bearing.
Eng, p 40-82 96-09-13, 10.2667

Husqvarna 268 Specifications

General

Engine displacement	66.7 cc
Weight	6.2 kg (without cutting equipment)
Fuel tank volume	0.75 liters
Oil tank volume	0.4 liters
Chain pitch	3/8 inch
Bar length	40-70 cm (16-28 in)
