70 – English

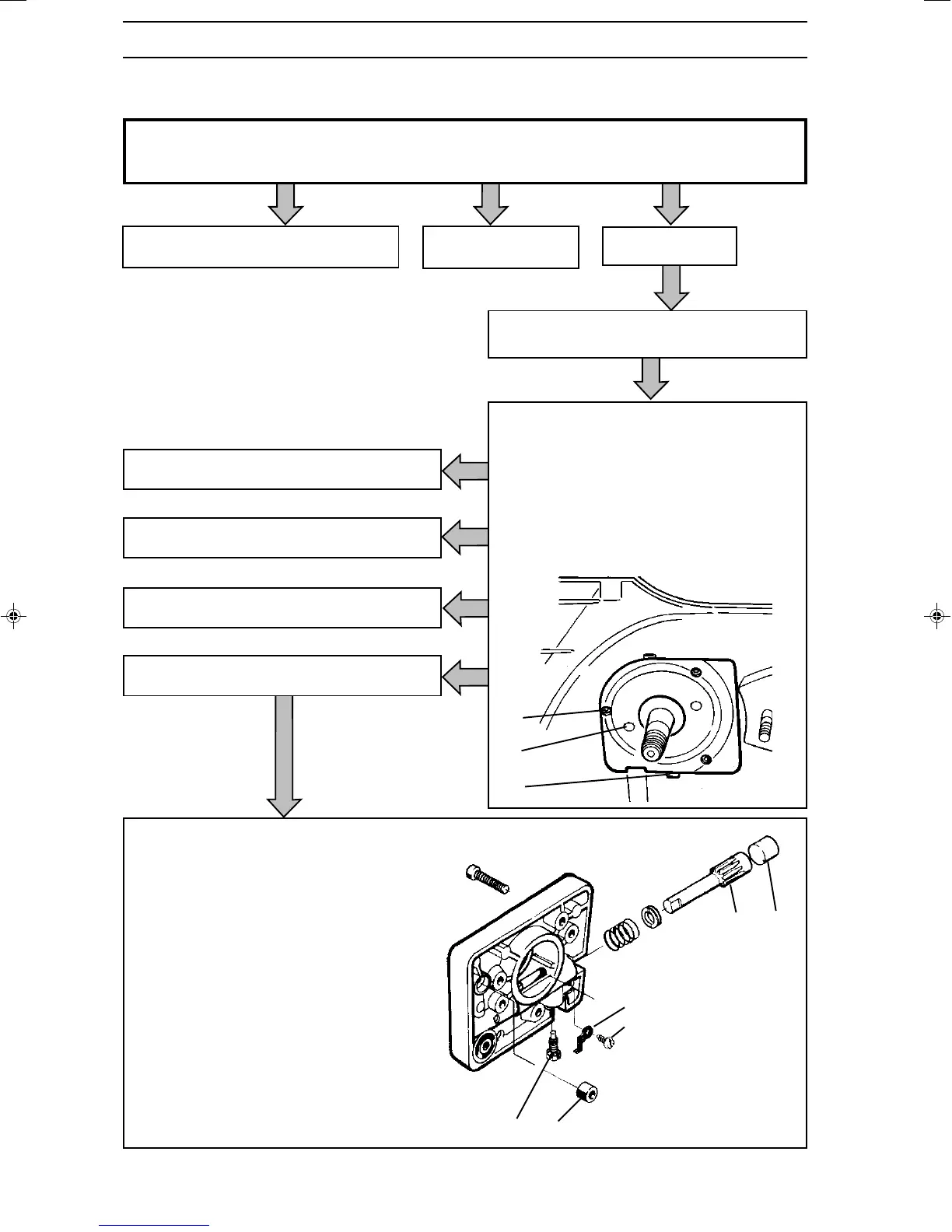

LUBRICATION SYSTEM
Dismantling
Saws 36, 40, 41, 45, 51 and 55. See page 72
Other saws.
Remove the pump drive and washer.
Undo the three bolts (A) and remove the
oil pump. Some pumps have to be
removed by using extractor screws. M5
screws should be inserted into the 2
threaded holes in the pump body and
tightened equally to lift the pump and
thrust washer. Other pumps have a cut-out
(C) for a screwdriver to prise off the pump.
Both types are shown below.
Saws 42, 242XP, 246, 254XP, 262XP and 257.
Saws 61, 268, 272XP. See next page.
Saws 281XP and 288 XP. See next page.
Saw 394. See page 72.
Dismantle the oil pump as follows:
1. Unscrew screw (A) and remove locking
clip (B).
2. Undo screw (C).
3. Lever out the pump piston (D) and
plastic plug (E) using a screwdriver.
4. Remove the seal (F).
CF
B
A
DE
Dismantle the following parts: • Starter. See the operating instructions
• Centrifugal clutch. See page 67.
Saw 3120. See page 72
A
B
C
Eng, p 40-82 96-09-13, 10.2770
