Husqvarna 268 User Manual

84 – English
Operation

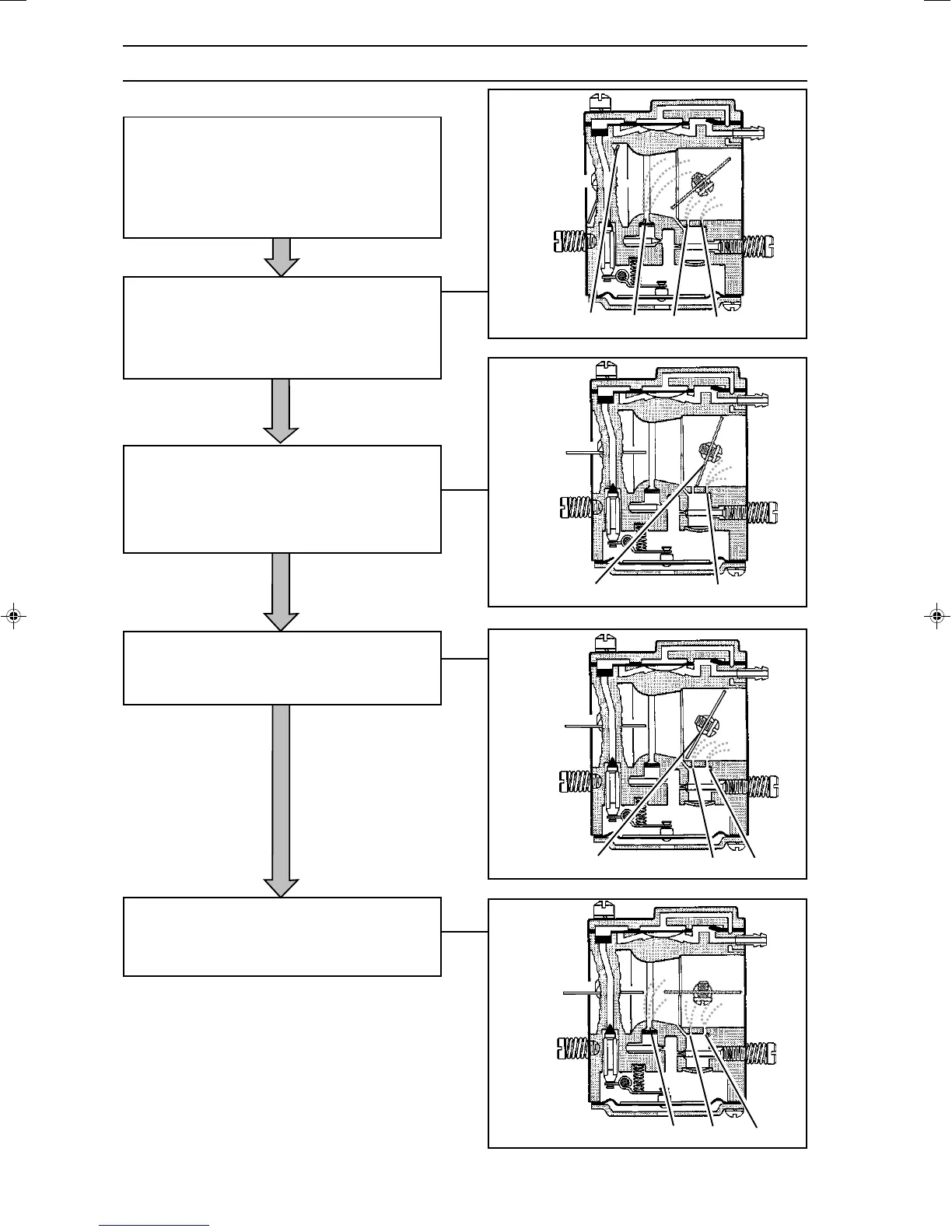

The carburettor operates differently in the
following modes:
• Cold start
• Idling
• Part throttle
• Full throttle
DEFG
HG
HFG
EFG
In the idling mode (H) the throttle valve is
closed. Air is sucked in through an
aperture in the throttle valve and a small
amount of fuel is supplied through the
diffuser jet (G).
In the part throttle mode the throttle valve
(H) is partially open. Fuel is supplied
through the diffuser jets (F and G).
In the full throttle mode both valves are
open and fuel is supplied through all three
diffuser jets (E, F and G).
CARBURETTOR
In the cold start mode the choke valve (D)
is fully closed. This increases the vacuum
in the carburettor and fuel is easier to suck
from all the diffuser jets (E, F and G). The
throttle valve (H) is partly open.
Eng, p 83-124 96-09-13, 11.0884

Husqvarna 268 Specifications

General

Engine displacement	66.7 cc
Weight	6.2 kg (without cutting equipment)
Fuel tank volume	0.75 liters
Oil tank volume	0.4 liters
Chain pitch	3/8 inch
Bar length	40-70 cm (16-28 in)
