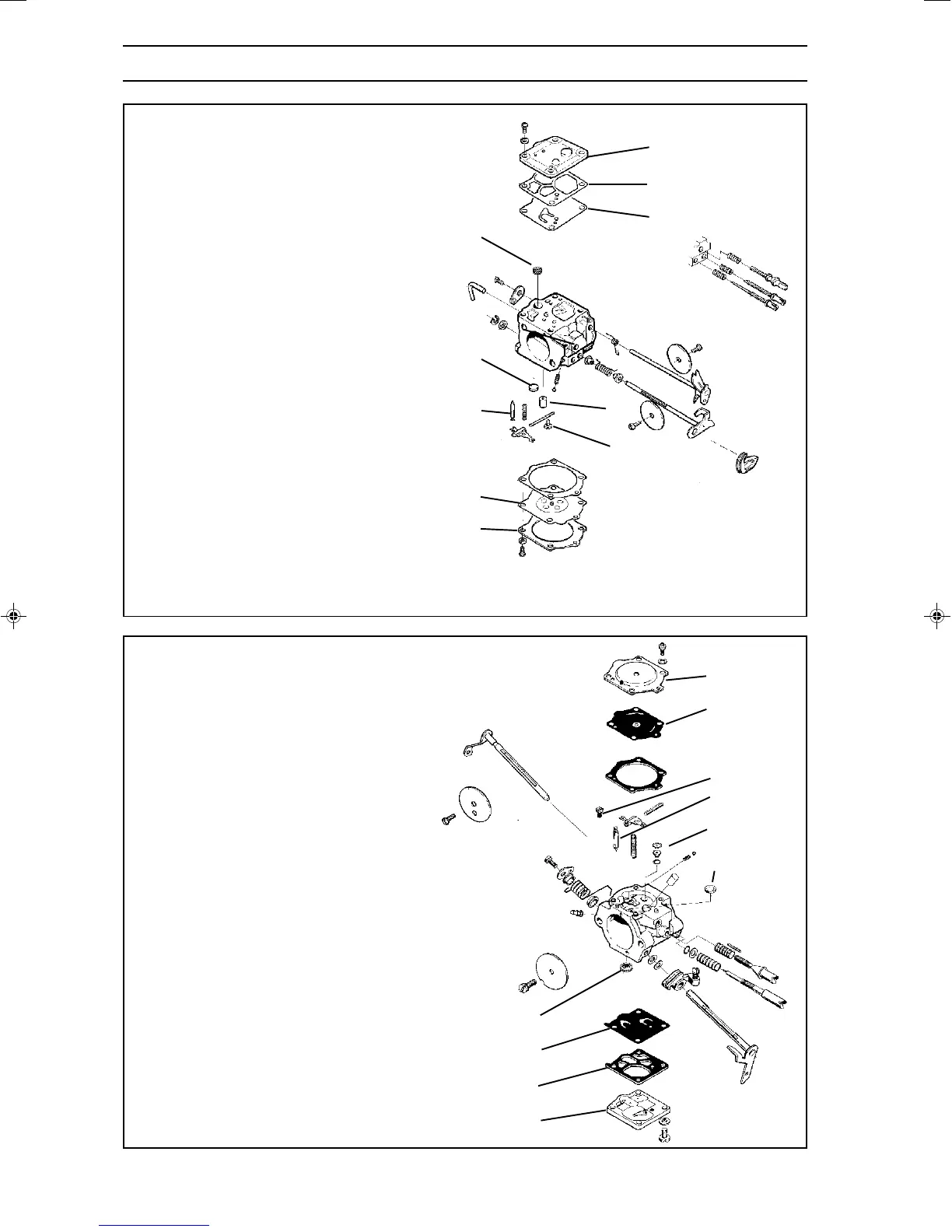

CARBURETTOR
Walbro WG
1. Remove the cover (A) over the metering
unit and carefully remove the control
diaphragm (B) with the gasket.
2. Undo the screw (H) and take out the
needle valve (C) with lever arm, shaft and
spring.
3. Remove the cover (E) over the pump unit
and carefully remove the gasket (F) and
the pump diaphragm (G).
4. Using a needle or the like carefully remove
the fuel screen (D).
5. Unscrew the low speed jet screws.
6. Remove the plugs (J). See page 85.
7. If necessary remove the throttle and choke
valves as well as the shafts, lever arms
and springs.
8.
Remove the ”semi fixed jet” (K). See page 85.
Walbro WJ
A
B
H
E
F
G
J
CK
1. Remove the cover (A) over the metering
unit and carefully remove the control
diaphragm (B) with the gasket.
2. Undo the screw (H) and take out the
needle valve (C) with lever arm, shaft and
spring.
3. Remove the cover (E) over the pump unit
and carefully remove the gasket (F) and
the pump diaphragm (G).
4. Using a needle or the like carefully remove
the fuel screen (D).
5. Unscrew the high and low speed jet
screws.
6. Remove the plug (J). See page 85.
7. If necessary remove the throttle and choke
valves as well as the shafts, lever arms
and springs.
8. Remove the ”semi fixed jet” (K). See page 85.
D
D
G
F
E
A
B
H
C
K
J
Eng, p 83-124 96-09-13, 11.0988

Husqvarna 268 Specifications

General

Engine displacement	66.7 cc
Weight	6.2 kg (without cutting equipment)
Fuel tank volume	0.75 liters
Oil tank volume	0.4 liters
Chain pitch	3/8 inch
Bar length	40-70 cm (16-28 in)
