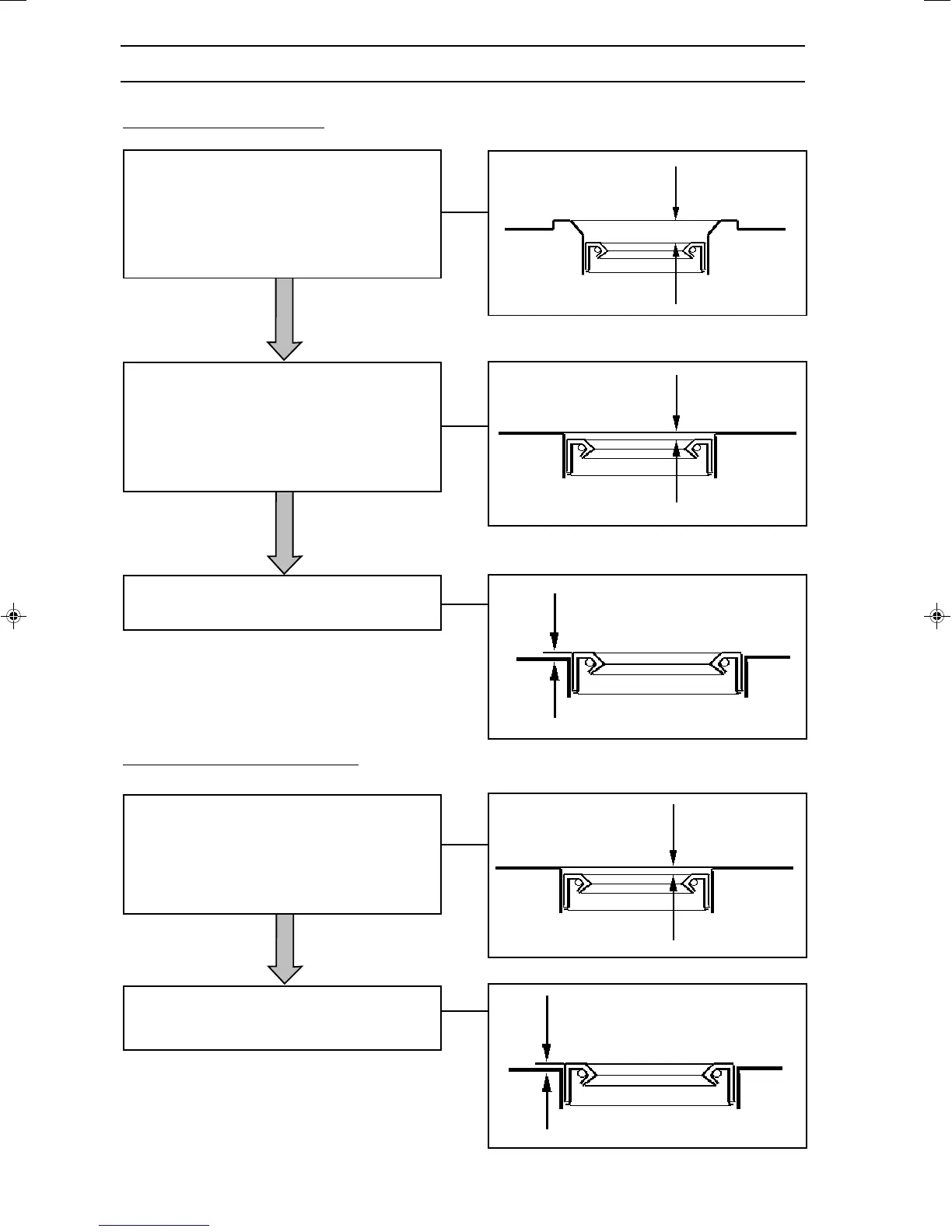

Assembly positions starter side
1 mm
Assembly position on the clutch side
254, 257, 262 1.5 mm above the
crankcase plane.
B
CRANKCASE AND CRANKSHAFT
C
1.5 mm
Measurement A should be as in the table below
for resp. saws (Under the crankcase plane).
61, 268 4-4.5 mm
272 2 mm
281, 288 3.5 mm
Measurement B should be as in the table below
for resp. saws (Under the crankcase plane).
42, 242, 246 1 mm
394 5 mm
3120 0-0.5 mm
51, 55 1 mm above the
crankcase plane
Measurement C should be as in the table below
for resp. saws (Under the crankcase plane).
51, 55 1 mm
394 0.5 mm
Eng, p 83-124 96-09-13, 11.40124

Husqvarna 268 Specifications

General

Engine displacement	66.7 cc
Weight	6.2 kg (without cutting equipment)
Fuel tank volume	0.75 liters
Oil tank volume	0.4 liters
Chain pitch	3/8 inch
Bar length	40-70 cm (16-28 in)
