ELECTRICAL SYSTEM 15

109

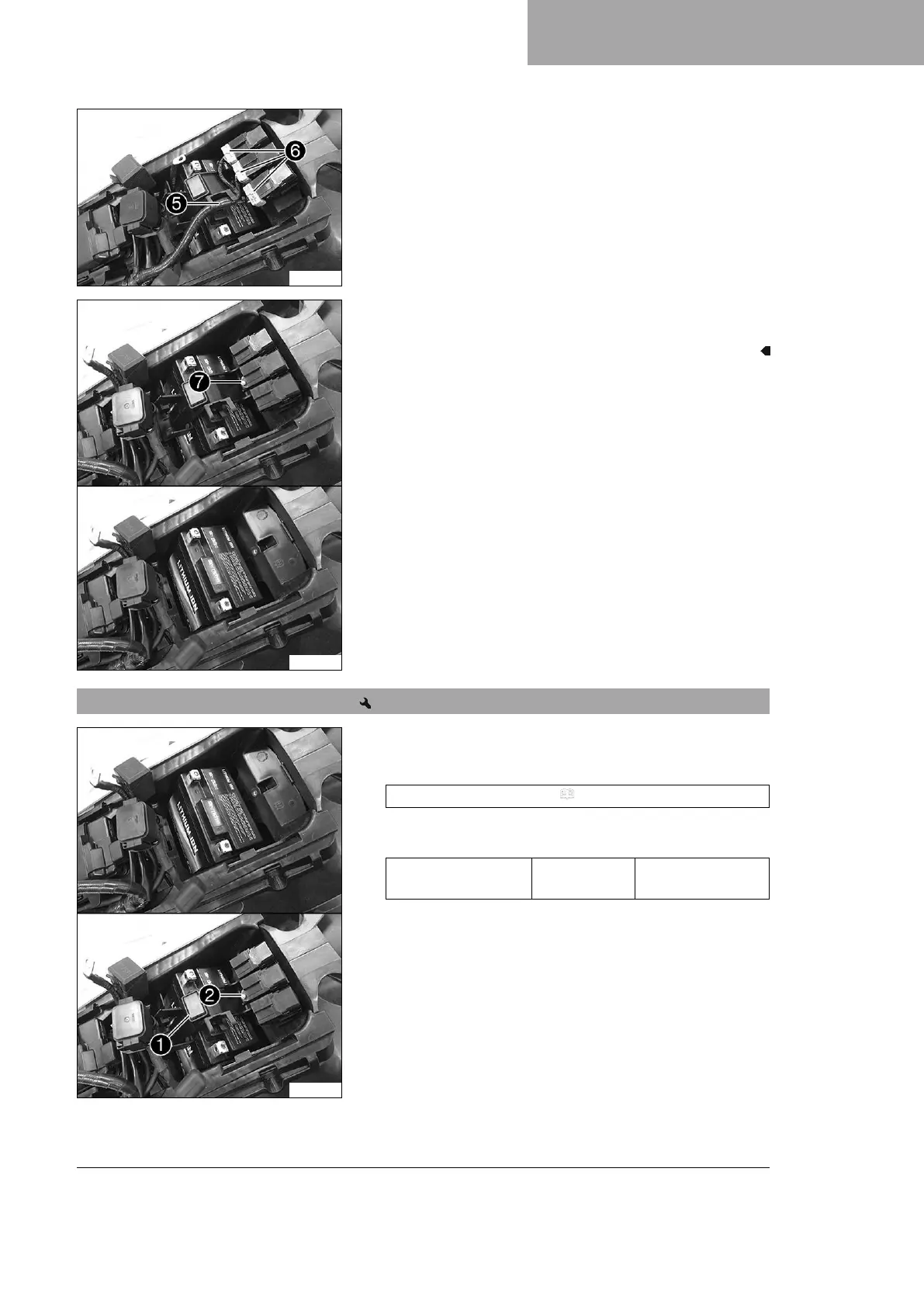

S03579-10

–

Detach wiring harness

, disconnect relays

and hang

them to the side.

S03582-10

–

Remove screw

and unhook the holding bracket.

– Lift out the 12-V battery.

15.2 Installing the 12-V battery

S03583-10

Main work

– Insert the 12-V battery into the battery compartment with the

terminals facing forward and secure with holding bracket

12 V battery (HJTZ5S-FP) ( p. 150)

–

Mount and tighten screw

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)
