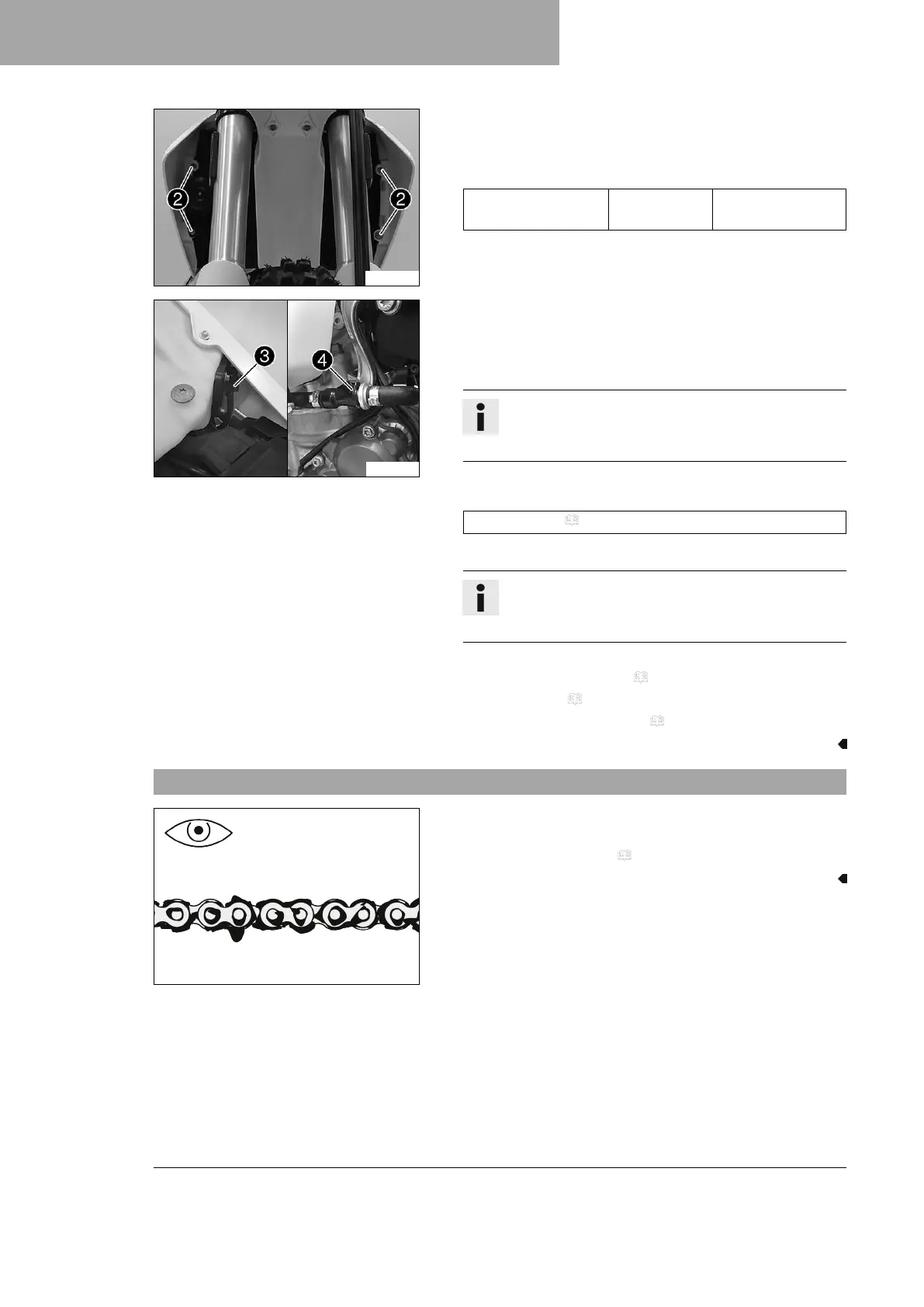

12 SERVICE WORK ON THE CHASSIS
78
H03705-11
(FE EU)
– Position the horn with the horn bracket.
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
S03562-11
–
Plug in connector
3
for the fuel pump.
– Remove the wash cap set.
– Clean the quick release coupling thoroughly with compressed
air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
– Spray silicone spray onto a lint-free cleaning cloth and lightly
lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 157)
–
Join quick release coupling
4
.
Info
Route the cable and fuel line at a safe distance from
the exhaust system.
Finishing work
– Install the right side cover. ( p. 71)
– Mount the seat. ( p. 67)
– Install the air filter box cover. ( p. 68)
12.33 Checking for chain dirt accumulation
400678-01
– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 79)
