ELECTRICAL SYSTEM 15
113

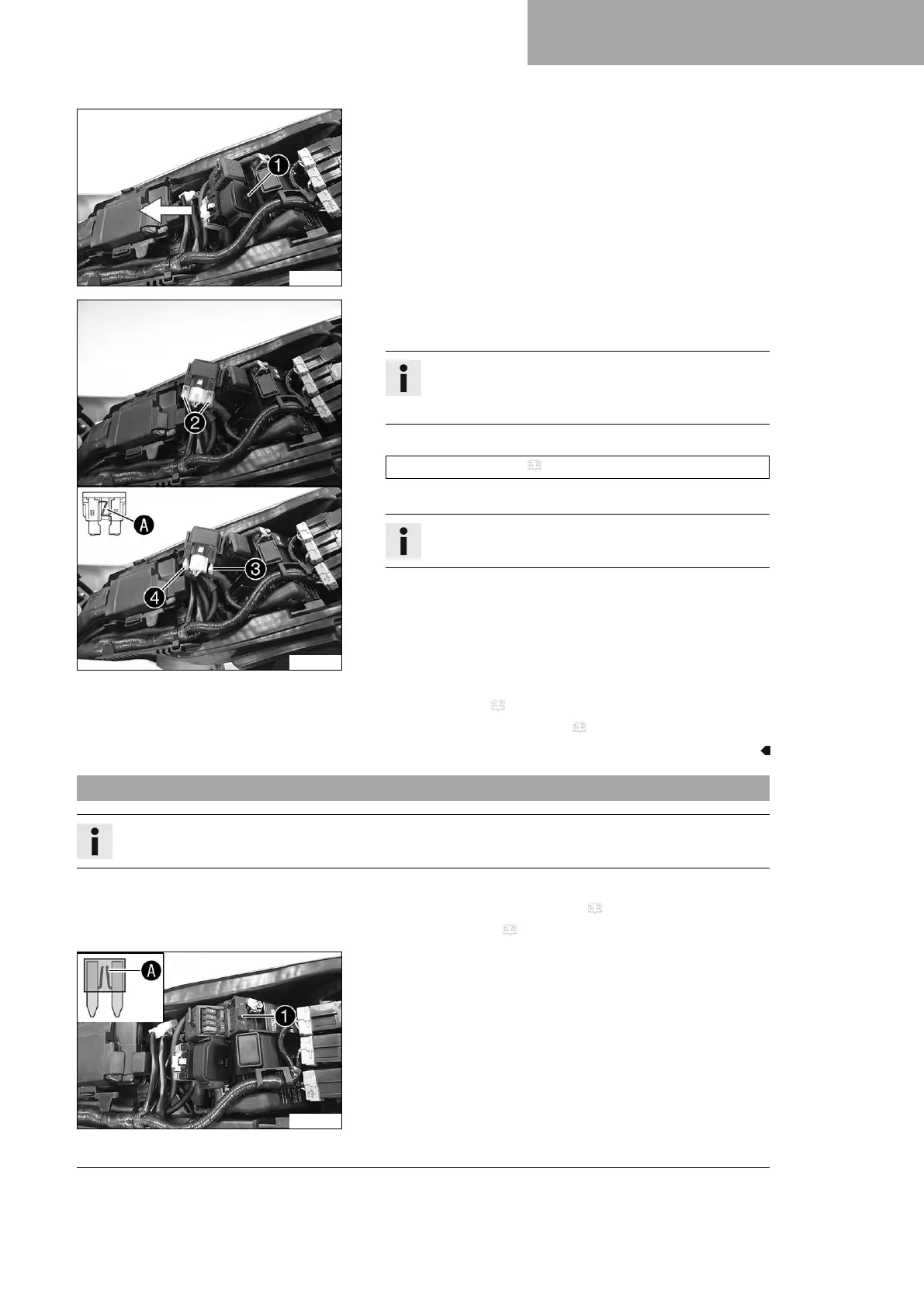

S03588-10
Main work
–
Pull starter relay
1
from the holder.
S03589-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109120) ( p. 150)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Mount the seat. ( p. 67)
– Install the air filter box cover. ( p. 68)
15.5 Changing the fuses of individual electrical power consumers
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
– Remove the air filter box cover. ( p. 68)
– Remove the seat. ( p. 66)
S03587-10
Main work
–
Open fuse box cover
1
.
– Remove the faulty fuse.
