ELECTRICAL SYSTEM 15
115

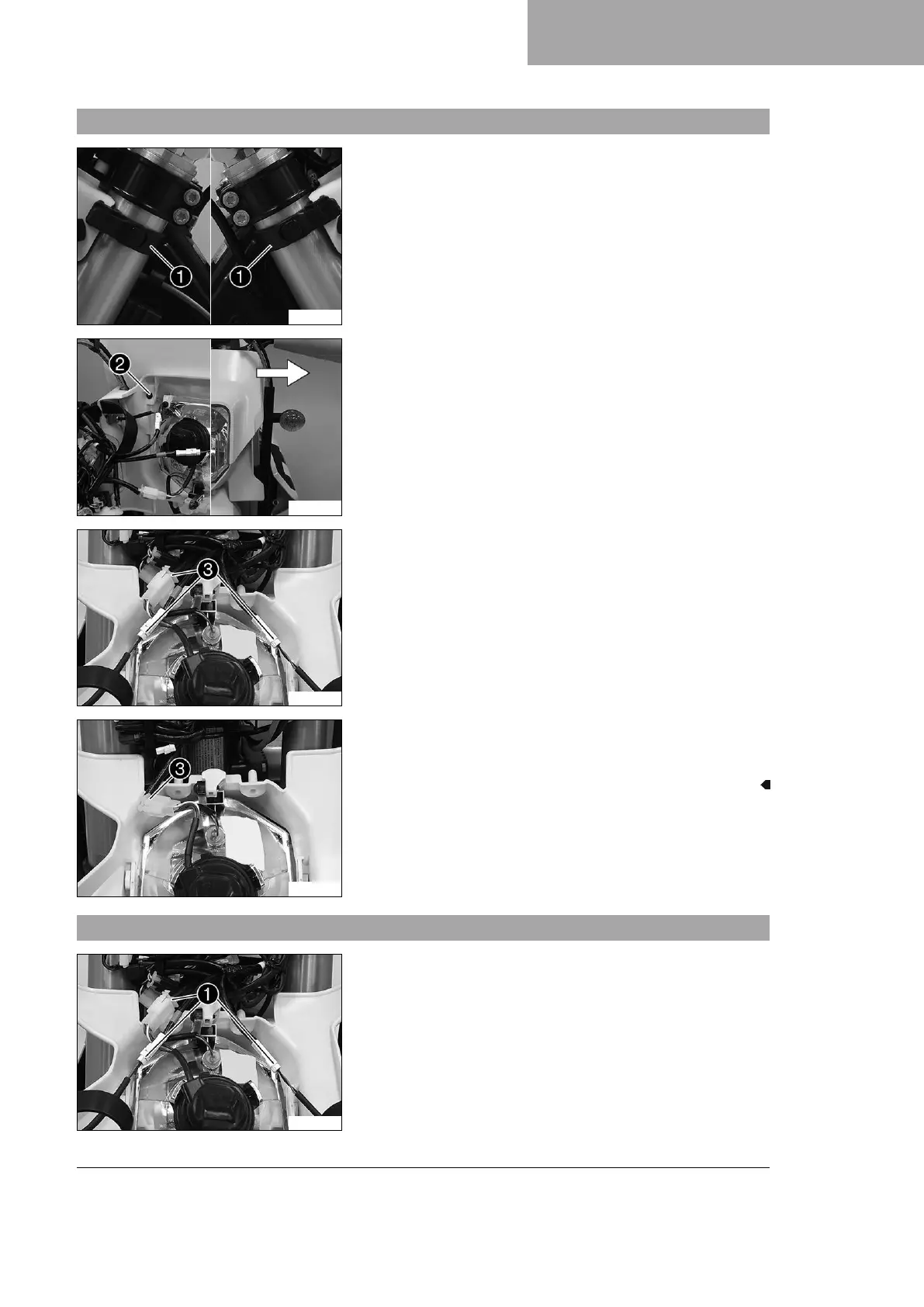

15.6 Removing the headlight mask with the headlight
H03749-10
–
Loosen rubber straps
1
. Slide the headlight mask up and
swing it forward.
H03748-10
–
Remove screw
2
.
– Detach the brake line and wiring harness from the headlight
mask.
– Pivot the headlight mask forwards and place it on the fender.
H03750-10
(FE EU)
–
Detach plug-in connectors
3
and take off the headlight
mask with the headlight.
H03751-10
(FE US)
–
Disconnect plug-in connector
3
and take off the head-
light mask together with the headlight.
15.7 Installing the headlight mask with the headlight
H03750-11
Main work
(FE EU)
–
Join plug-in connectors
1
.
