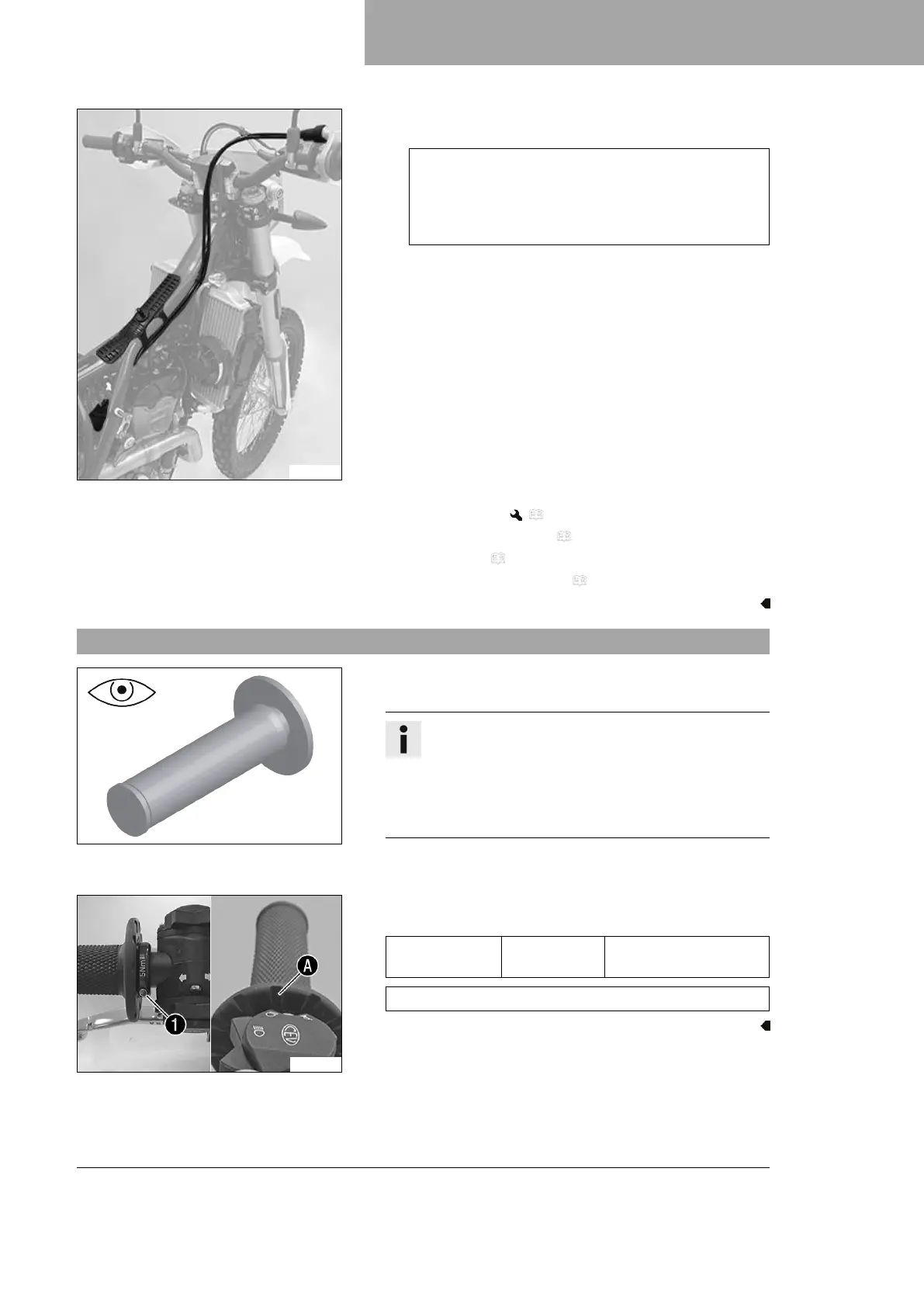

SERVICE WORK ON THE CHASSIS 12
85
S03604-01
(FE US)
– Check the throttle cable routing.
Both throttle cables must be routed, side by side, on
the back of the handlebars and above the fuel tank
bracket, to the throttle valve body. Both throttle cables
must be secured behind the rubber strap of the fuel
tank support.
» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 77)
– Install the right side cover. ( p. 71)
– Mount the seat. ( p. 67)
– Install the air filter box cover. ( p. 68)
12.41 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage, wear,
and looseness.
Info
The rubber grips are vulcanized onto a sleeve on the
left and onto the handle tube of the throttle grip on the
right. The left sleeve is clamped onto the handlebar.
The rubber grip can only be replaced with the sleeve
or the throttle tube.
» If a rubber grip is damaged, worn, or loose:
– Change the rubber grip.
F00323-10
–
Check that screw
1
is firmly seated.
Guideline
Screw, fixed
grip
M4 5 Nm (3.7 lbf ft)
Loctite
®
243™
Diamond
A
must be located at the top.
