12 SERVICE WORK ON THE CHASSIS
72

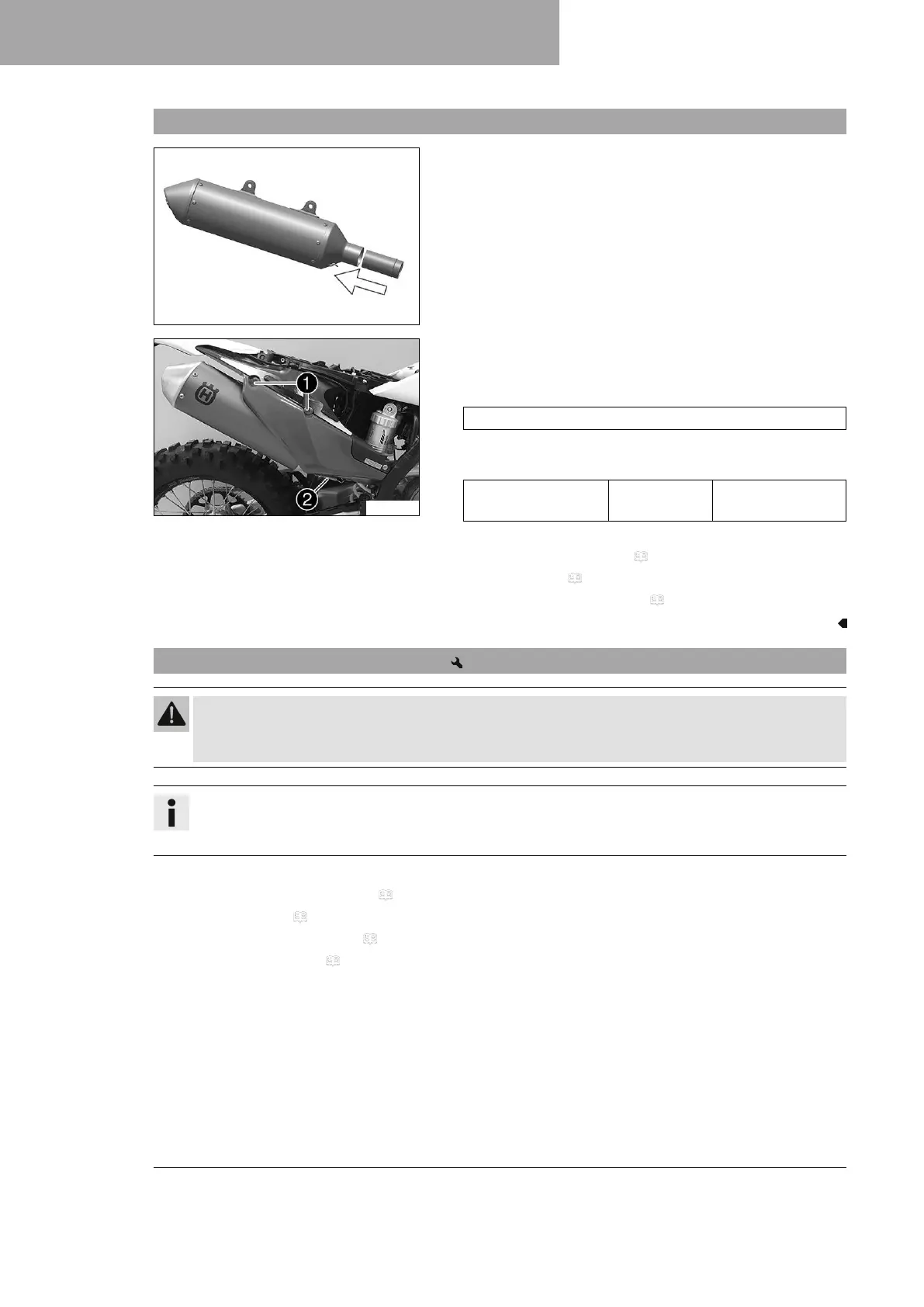

12.28 Installing the main silencer
S02101-10
Main work
(FE EU)
– Position the catalytic converter in the main silencer.
S03561-11
– Position the main silencer.
–
Mount screws
1
, but do not tighten yet.
–
Attach spring
2
.
Spring hook (50305017000C1)
–
Tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the right side cover. ( p. 71)
– Mount the seat. ( p. 67)
– Install the air filter box cover. ( p. 68)
12.29 Cleaning the spark arrestor (FE US)
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down before performing any work on the vehicle.
Info
Soot particles accumulate on the screen of the spark arrestor over time.
This changes the performance characteristics.
Preparatory work
– Remove the air filter box cover. ( p. 68)
– Remove the seat. ( p. 66)
– Remove the right side cover. ( p. 70)
– Remove main silencer. ( p. 71)
