Installation
DynaMAX 550P/560P/575P Waterjet Pump Operator Manual 811390 195

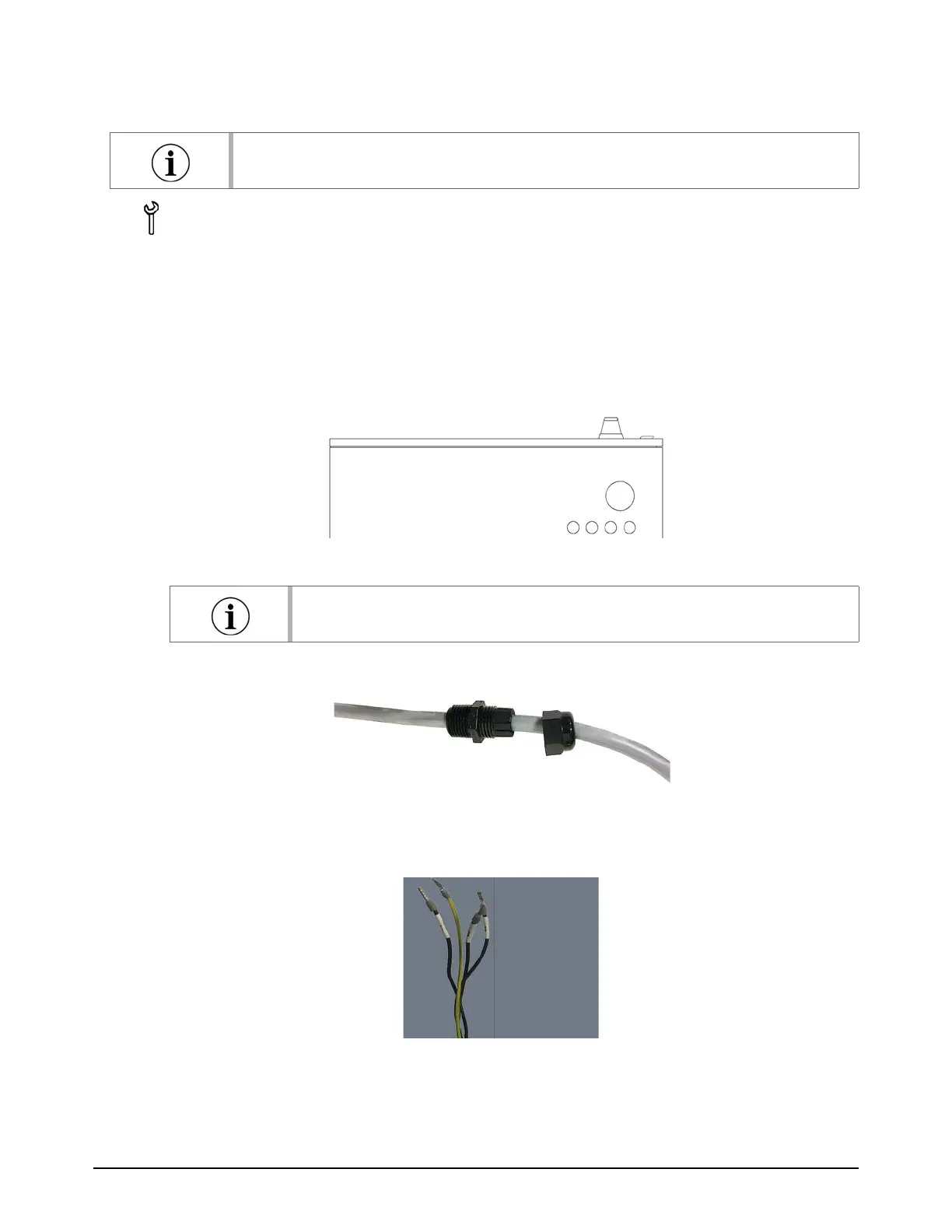

Install the external heat exchanger (optional)
Parts, tools, and materials
1. Use the attached mounting bars to secure the heat exchanger to the ground or on an elevated
platform.
2. Locate the wiring access hole in the bottom of the electrical enclosure.
3. Remove the wing nut holding the hole plug.
4. Put the cord grip connector on the cord.
5. Put the cord and the threaded end of the cord grip connector through the wiring access hole.
6. Put the lock nut on the cord grip connector.
7. Connect the motor wires (L1, L2, and L3) to the motor starter. Connect the ground wire to the
grounding lug (PE).
DynaMAX pumps have 1-inch hydraulic hoses with 1-5/8-inch hex fasteners.
Keep these parts to use if the pump is stored or shipped.
Air-cooled system kit
24 mm or 15/16-inch open-ended wrench
(for the cord grip base)
1-1/16-inch open-ended wrench
(for the sealing locknut)
