Installation
DynaMAX 550P/560P/575P Waterjet Pump Operator Manual 811390 199

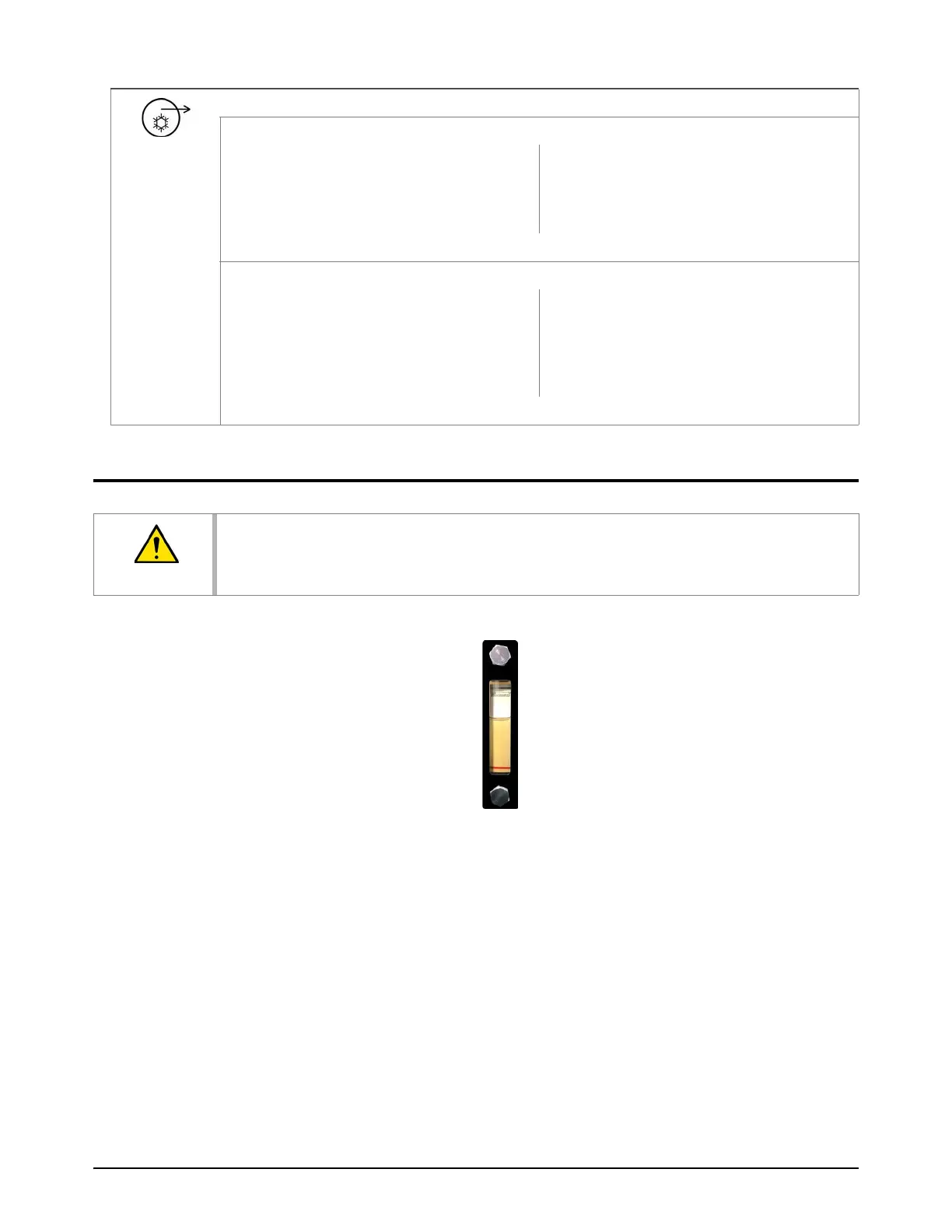

Check the hydraulic fluid
Look at the hydraulic sight gauge to check the fluid level.
Add hydraulic fluid, if necessary. Refer to Do the first start on page 200 and Add hydraulic fluid on
page 79.
COOLING OUT
Water-cooled system
This line carries low-pressure water from the
heat exchanger to the chiller or to the drain.
• Connect 1 end of this line to the chiller or
to the drain.
• Connect the other end to the fitting on the
pump’s utility panel.
Factory-installed fitting: 1-inch NPT female
Air-cooled system
This hose carries hydraulic fluid from the
hydraulic fluid tank to an external heat
exchanger.
• Connect 1 end of this line to the fitting
marked INLET on the external heat
exchanger.
• Connect the other end to the heat
exchanger outlet.
Factory-installed fitting: -16 JIC male
CAUTION
Make sure that hydraulic fluid is available during installation and for the first start.
