Repair Infor
mation
4-9
Bays 1, 2 (5.25-In. Interna
l/External Bay
s)
•
Disconne
ct any cable o
n the drive (
note locat
ion of cabl
es).
•
Remove the s
crews.
WARNING:
For 5.25-In. Har
d Disk Drive
installati
on, it uses diff
erent
screws th
an the 3.5-In Har
d Disk Driv
e.
•
Pull out the dr
ive.
•

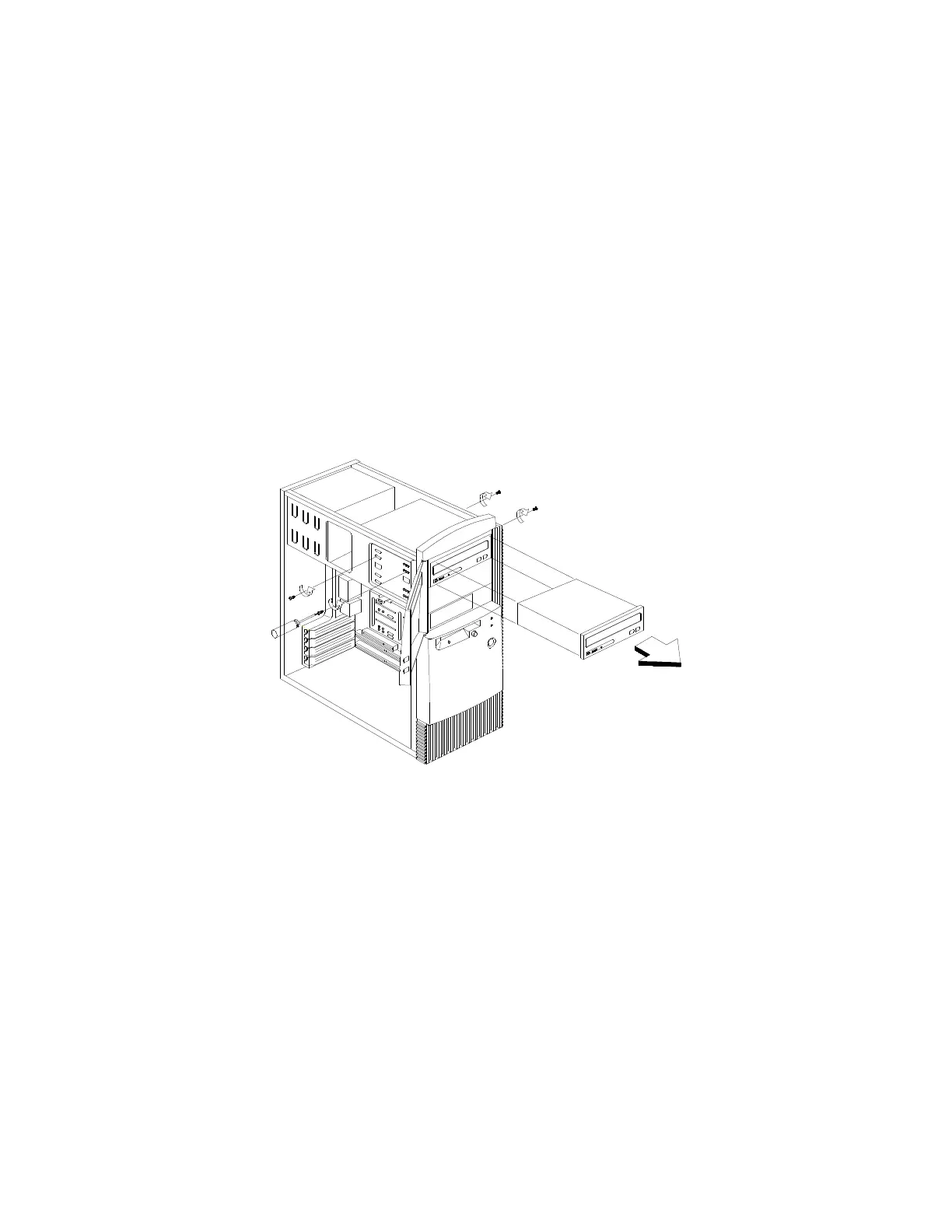

Figure 4- 6
Bay 1 (5.25-
In.)
120
122
Table of Contents
Default Chapter
3
Table of Contents
3
Notices
7
Voltage Supply Switch Settings
7
Safety Information
8
Laser Compliance Statement
38
Trademarks
39
Preface
40
General Information
41
General Information
42
Introduction
42
Product Overview
42
Hardware Interfaces
47
CMOS Reset
48
Power-On Password
49
Flash (BIOS) Update Procedure
50
BIOS-Contained Model Number and Serial Number
51
BIOS Setup Utility
52
Working with the Setup Menus
52
Viewing System Information, Video Information and Model Information1-14
54
Disk Drives
55
Input/Output Ports
57
Power Management
57
Startup Options
58
Date and Time
58
Advanced Options
58
Specifications
62
Operating Requirements
64
Special Tools
64
Check Procedures
67
Start
67
Index of Symptoms, Messages, Error Codes, or Beeps
72
Troubleshooting
88
Factory-Installed Storage Devices
89
Factory-Installed Modem Card
92
Audio (Not Supported by Diagnostics Program)
94
CD/DVD-ROM Drive
96
Memory
97
Keyboard
98
Mouse
99
Power Supply
101
Monitor
104
Undetermined Problems
106
Diagnostic Aids
108
Diagnostic Aids
109
Introduction
109
Power-On Self Test
109
Diagnostic Diskette
110
Using the Diagnostic Diskette
110
Using Diagnostic Program from Recovery CD
111
Diagnostics Program Features
111
Repairing Information
113
Repairing Information
114
Removals and Replacements (Machine Type 2153)
114
Identifying the Parts of the System Unit
115
Cover
117
Bay Panels
119
Bays 1, 2 (5.25-In. Internal/External Bays)
121
Bay 3,4 (3.5-In. Diskette/Hard Disk Drives)
122
Bay 3, 4 (3.5-In. Diskette/Hard Disk Drives)
122
Power Supply
125
Adapter Cards
126
Memory(DIMM)
127
Processor
128
System Backup Battery
134
Indicator LED and Cable
135
System Board
136
Removals and Replacements (Machine Type 2139)
138
Identifying the Parts of the System Unit
139
Cover
141
Bay Panels
144
Bays 1, 2, 3 (5.25-In. Internal/External Bays)
146
Bay 4, 5 (3.5-In. Diskette/Hard Disk Drives)
147
Power Supply
149
Adapter Cards
151
Memory(DIMM)
152
Pentium II Processor Module
153
Installing the Processor Heat Sink and Fan
155
System Backup Battery
158
Indicator LED and Cable
159
System Board
160
Handling ESD-Sensitive Parts
162
Software Recovery Procedure
163
Parts/Test Point Locations
166
Machine Type 2153 System Board Layout
166
Machine Type 2153 System Board Layout
171
2153 Celeron System Board Jumper Settings
172
2153 Celeron System Board Connectors and Functions
173
Machine Type 2139 System Board Layout
175
2139 System Board Jumper Settings
176
2139 System Board Connectors and Functions
177
Power Supply Cable Connector Specifications
178
Factory-Installed Modem Card Layout
180
Factory-Installed Modem Card Connector Functions
180
In. Hard Disk Drive Jumper Locations (for 2153)
181
In. Hard Disk Drive Jumper Locations(for 2153)
181
3.5-In. Hard Disk Drive Jumper Settings
183
In. Hard Disk Drive Jumper Locations (for 2139)
184
In. Hard Disk Drive Jumper Locations(for 2139)
184
3.5-In. Hard Disk Drive Jumper Settings
185
In Hard Disk Drive Jumper Locations (for 2153)
186
In Hard Disk Drive Jumper Locations(for 2153)
186
5.25-In Hard Disk Drive Jumper Settings
186
In Hard Disk Drive Jumper Locations (for 2139)
187
In Hard Disk Drive Jumper Locations(for 2139)
187
5.25-In. Hard Disk Drive Jumper Settings
187
CD-ROM Drive
188
CD-ROM Drive Rear Panel Connectors and Features
190
CD-ROM Drive Jumper Settings
190
DVD-ROM Drive
191
DVD-ROM Drive Rear Panel Connectors and Features
192
DVD-ROM Drive Jumper Settings
192
DIMM Configurations
193
System Board Connector Pin Signals
193
Monitor Port Signals
193
Serial Port Signals
193
Parallel Port Signals
194
Mouse Port Signals
194
Keyboard Port Signals
194
Diskette Drive Cable Connector Signals
195
IDE Cable Connector Signals
196
Safety Inspection Guide
197
General Guidelines
198
Parts Catalog
201
Assembly 1: Machine Type 2153 System Unit
201
Assembly 2: Machine Type 2153 Diskette, Hard Drive
204
Assembly 3: Machine Type 2153 CD/DVD-ROM, Modem Card, Speaker and Microphone
205
Assembly 4: Machine Type 2153 Monitor and Power Cord
207
Assembly 5: Machine Type 2153 Keyboard and Mouse
208
Assembly 6: Machine Type 2153 Software
210
Assembly 1: Machine Type 2139 System Unit - Exterior
211
Assembly 2: Machine Type 2139 System Unit - Interior
213
Assembly 3: Machine Type 2139 Diskette, Hard Disk Drives
216
Assembly 4: Machine Type 2139 CD/DVD-ROM, Modem Card, Speaker and Micropone
218
Assembly 5: Machine Type 2139 Keyboard and Mouse
220
Assembly 6: Machine Type 2139 Zip Drive and Network Adapter
221
Assembly 7: Machine Type 2139 Software
222
Appendix A. FRU Number Index
223
Appendix B. Online Support Information
228
Appendix C. Model/Monitor Configurations and FRU Part Numbers
230
Index
306
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IBM Aptiva 2124 and is the answer not in the manual?
Ask a question
IBM Aptiva 2124 Specifications
General
Brand
IBM
Model
Aptiva 2124
Category
Monitor
Language
