Repair Information 4-41
Pentium II
Processor Module
Follow these steps to remove the Pentium II CPU module from the slot.
NOTE
: Determine the type of processor you are installing and make sure the
jumpers are set correctly. Run the Setup Utility after correctly
installing a processor.
ATTENTION:
Processors are sensitive to static discharge.
•
Unlock the latches that secure the processor module.

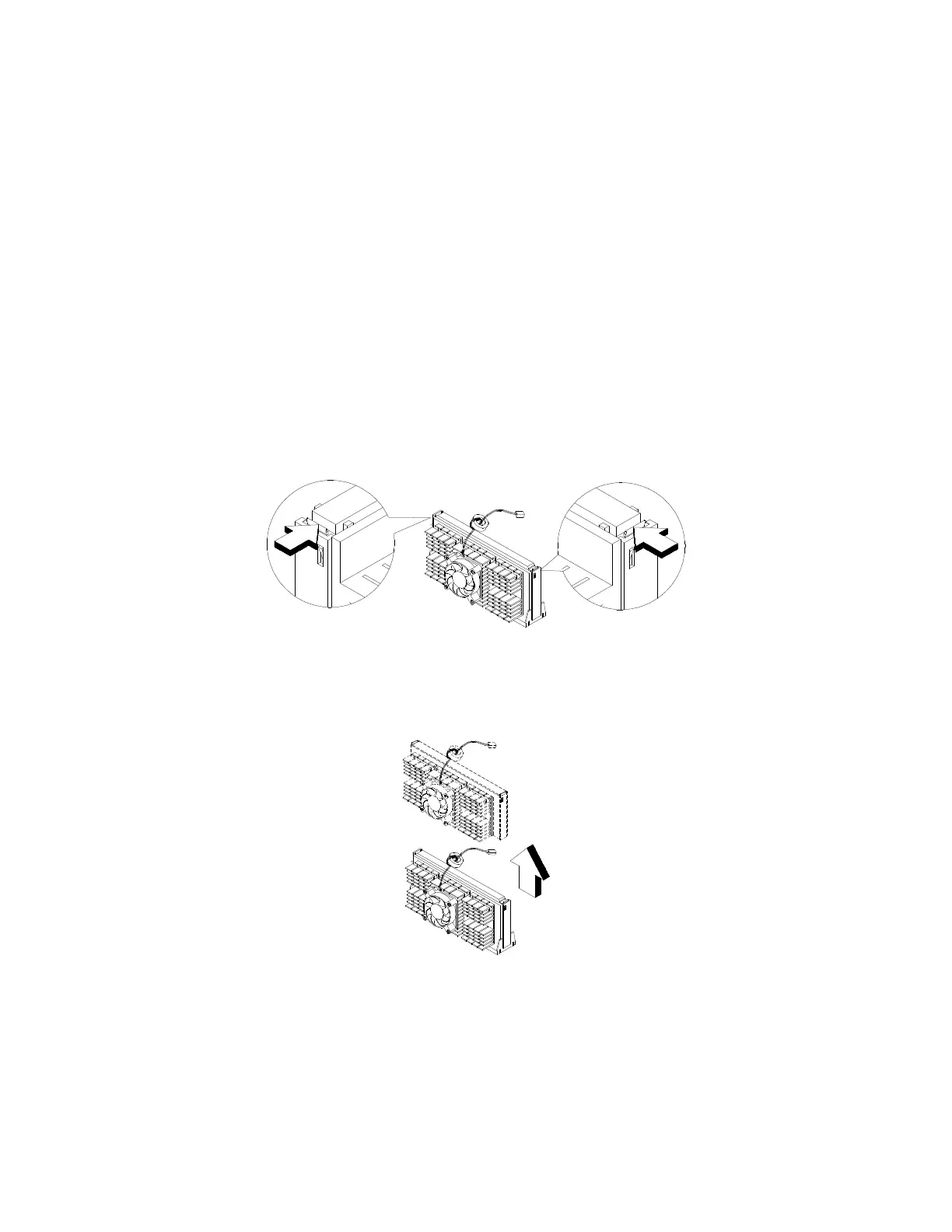

Figure 4- 38 Unlocking the Module Latches
•
Firmly hold the processor module and pull it out of the socket.
Figure 4- 39 Removing the Pentium II Processor
