Parts/Test Point Locations 5-23
5.25-In Hard Disk Drive Jumper Locations (For
2153)

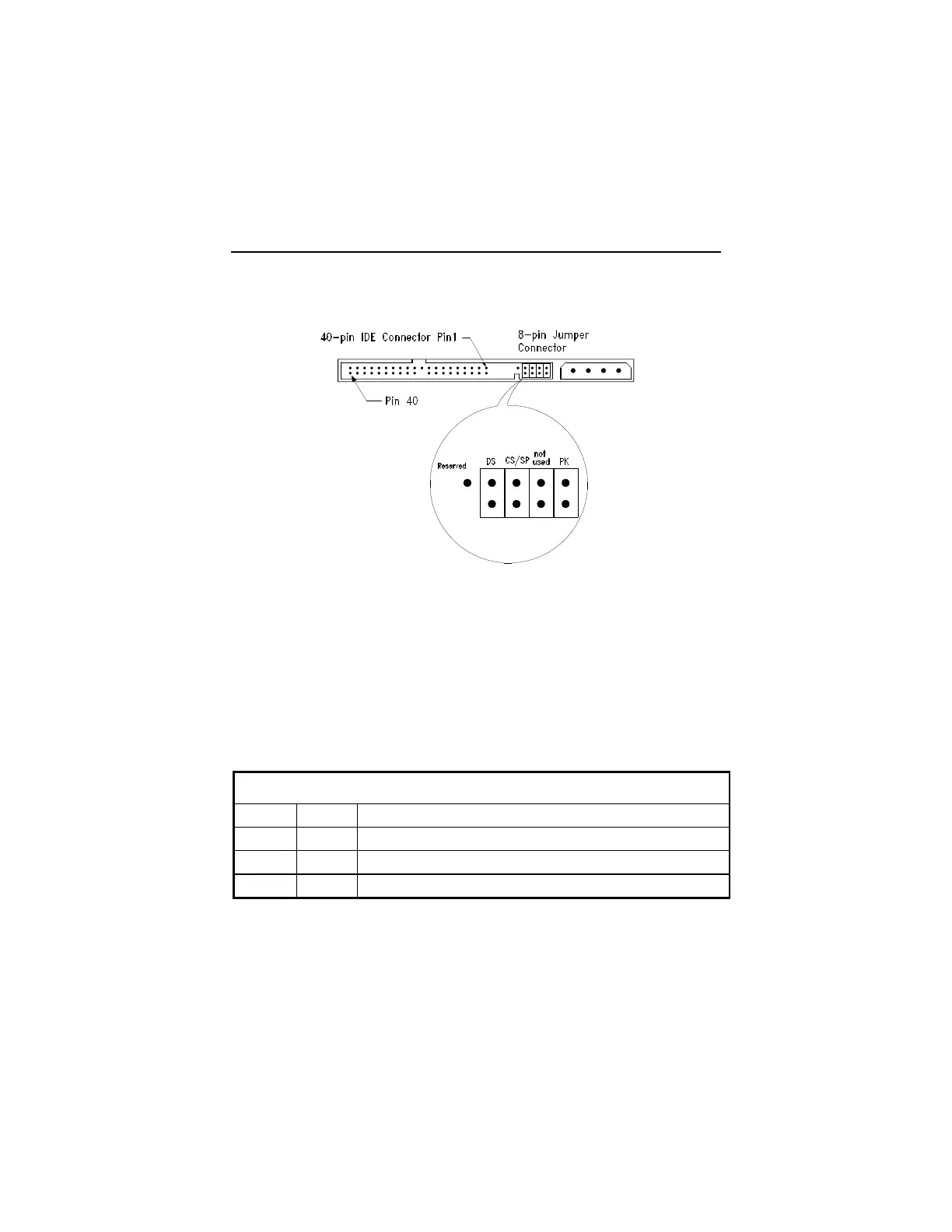

Figure 5- 14 5.25-in Hard Disk Jumper Locations
The configuration of the following four jumpers controls the drive’s mode of
operation:
•
DS – Drive Select
•
CS/ SP–Cable Select / Slave Present
•
PARK – Used as a place to store a jumper
5.25-In Hard Disk Drive Jumper Settings
Table 5-15 5.25-in Hard Disk Drive Jumper Settings
DS CS/SP Description
On Off Drive configured as a Master.
Off Off Drive configured as a Slave.
On On Drive configured as a Master, with an attached Slave
