Parts/Test Point Locations 5-3
Machine Type 2153/K6 System Board Layout
NOTE:
The blackened pin of a jumper represents pin 1.

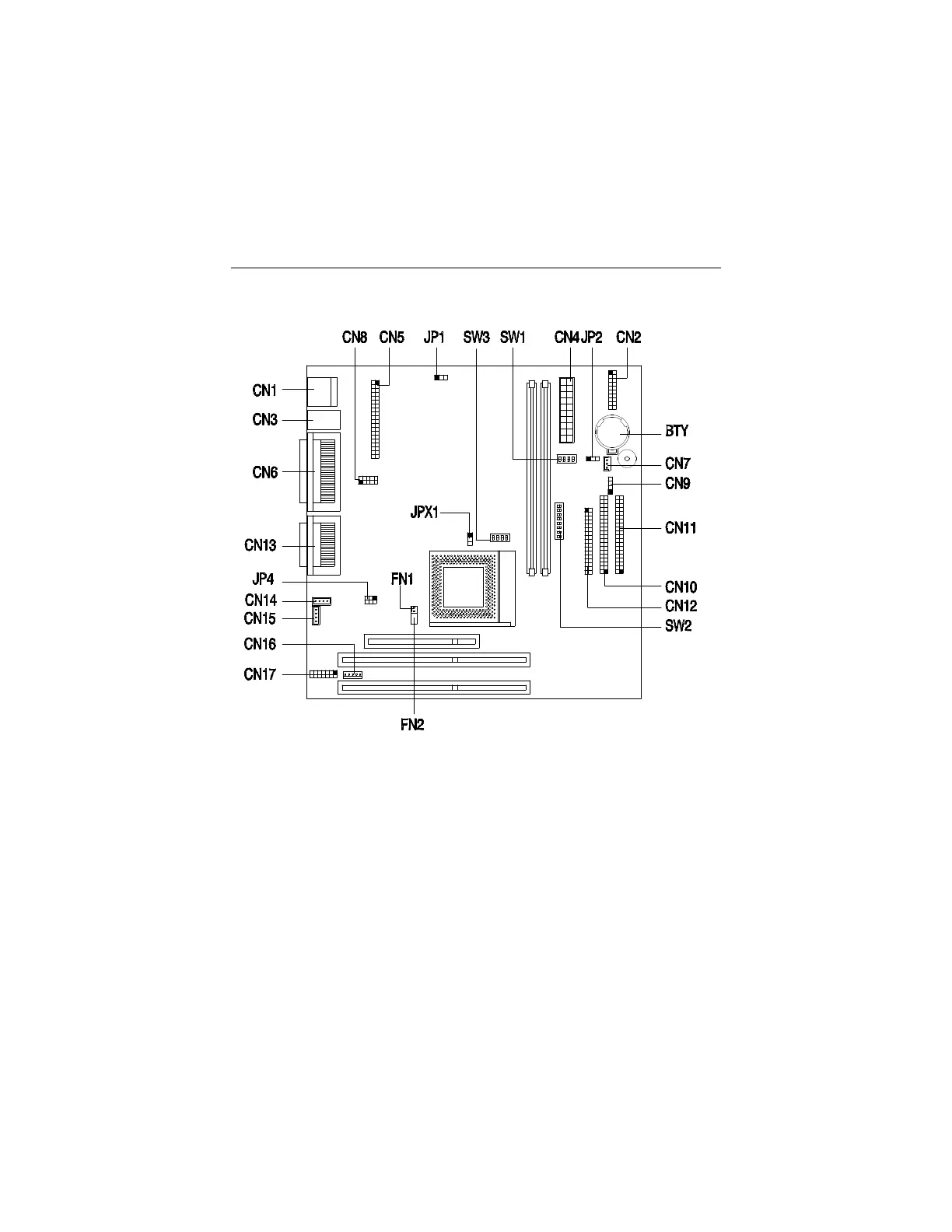

Figure 5- 1 Machine Type 2153 System Board Jumper and Connector
Locations
