IBM Aptiva 2124 User Manual

Parts/Test Point Locations 5-29

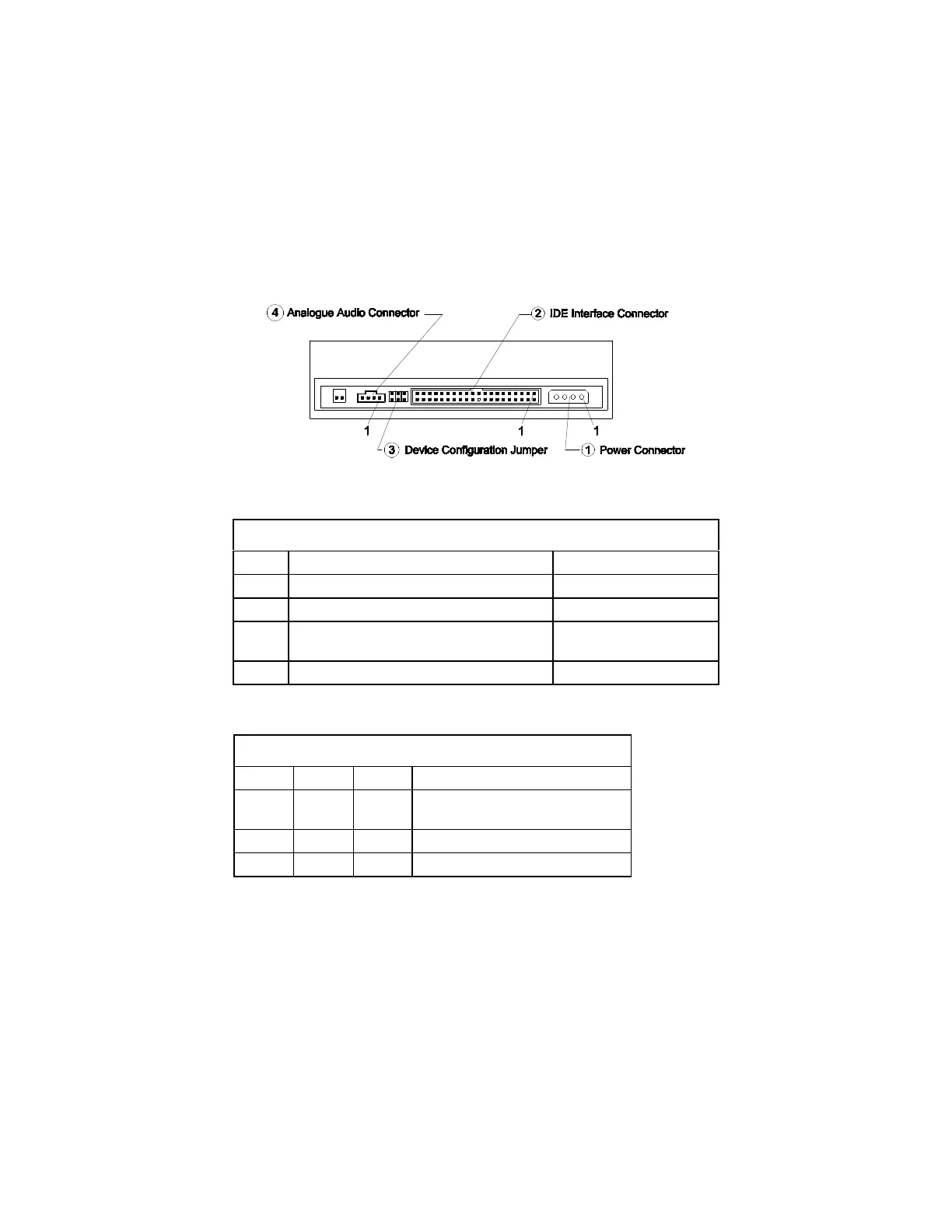

DVD-ROM Drive Rear Panel Connectors and Features
Figure 5- 20 DVD-ROM Rear Panel
Table 5- 22 DVD-ROM Drive Rear Panel Connectors and Features
Item Function Connect to…
1 Power connector Power supply
2 IDE Interface connector System board (CN13)
3 Device Configuration jumper. See
Table 5-20.
--
4 Analogue Audio connector System board (CN9)
DVD-ROM Drive Jumper Settings
Table 5-23 DVD-ROM Drive Jumper Settings
CS SL MA Description
-- -- On
Drive configured as a Master
(default).
-- On -- Drive configured as a Slave.
On -- -- Cable select
