Installing the system into the rack
Use the procedure in this section to install the depopulated system chassis into the rack.
About this task
CAUTION: This system requires at least three people to install the system into the rack. You must
also attach the system-to-rail locking clips to each rail after installing the system onto the rails.
To install the system into the rack, complete the following steps:
Procedure
1. Extend the mounting hardware (1) as shown in Figure 12 on page 14.

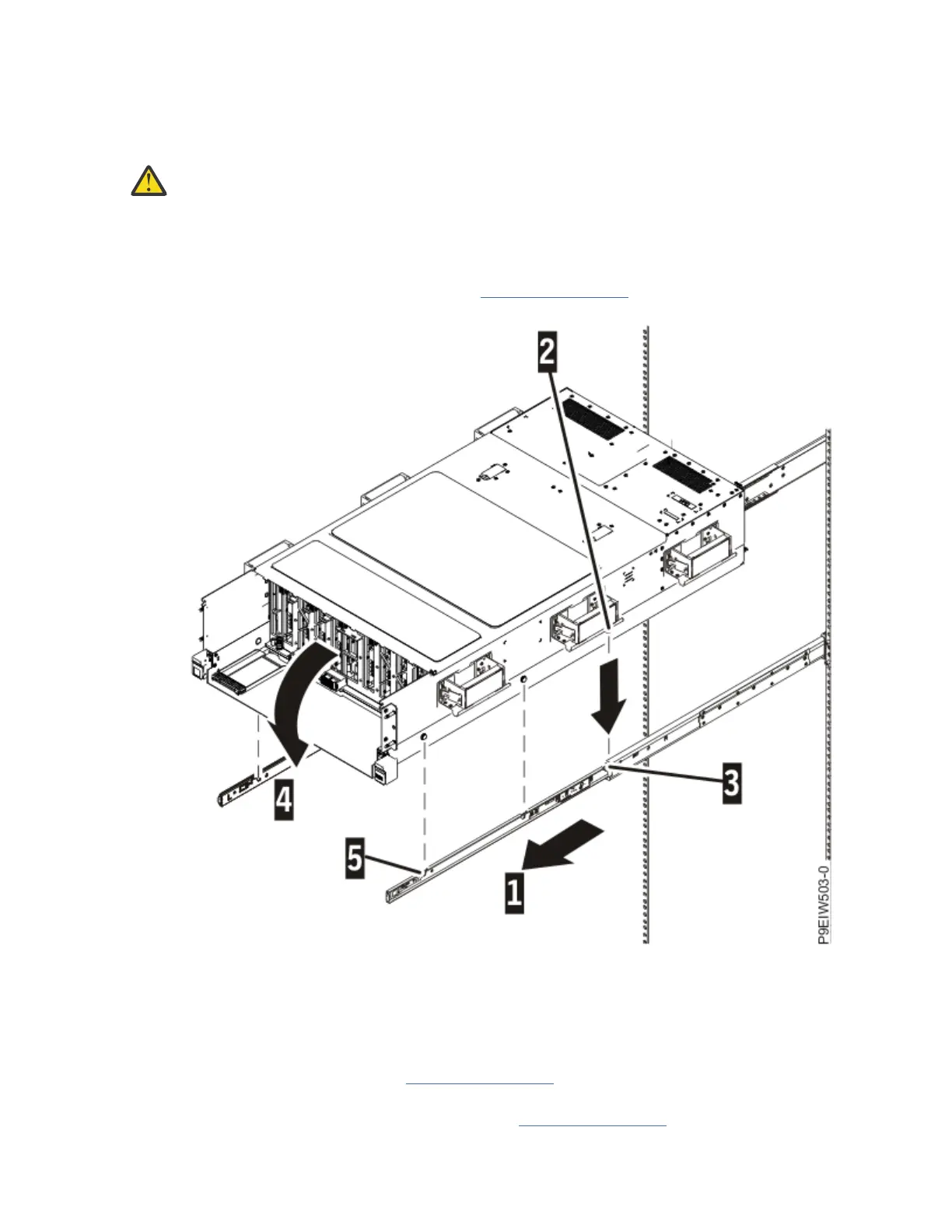

Figure 12. Installing the chassis onto the mounting hardware
2. Position one person in front of the system, one person on the left side of the system and one person on
the right side of the system.
3. Using the lift handles, lift the chassis over the rails.
4. Tilt the front of the system up so that the rear chassis pins (2) insert into the rear holes on the
mounting hardware (3), as shown in Figure 12 on page 14.
5. Tilt the front of the system down so that the chassis pins are inserted into the front (4 and 5) and
middle holes in the mounting hardware, as shown in Figure 12 on page 14.
6. Install the system-to-rail locking clips onto each rail.
14
Power Systems: Installing the IBM Power System E950 (9040-MR9)
