Replacing the PCIe adapters in the system chassis
Replace the PCIe adapters in the system chassis.
About this task
Procedure
Replacing the power supplies
Learn how to replace the power supplies.
About this task
To replace the power supplies, complete the following steps:
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now.
2. Move to the rear of the rack.
3. Align the power supply with the bay and slide the power supply into the system until the latch locks in
place, as shown in Figure 21 on page 22.
4. Complete this task for each power supply that you removed.

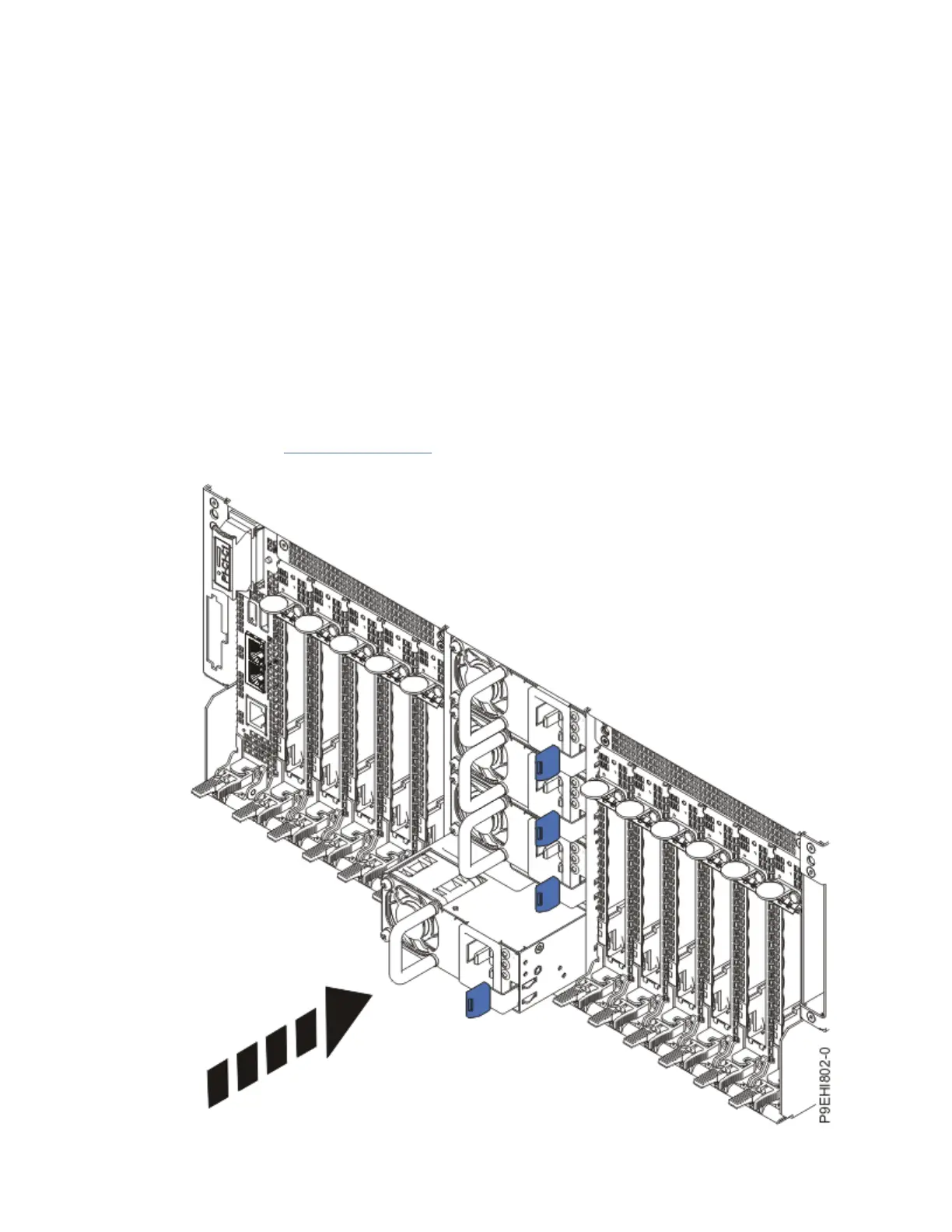

Figure 21. Replacing a power supply in the system
22
Power Systems: Installing the IBM Power System E950 (9040-MR9)
