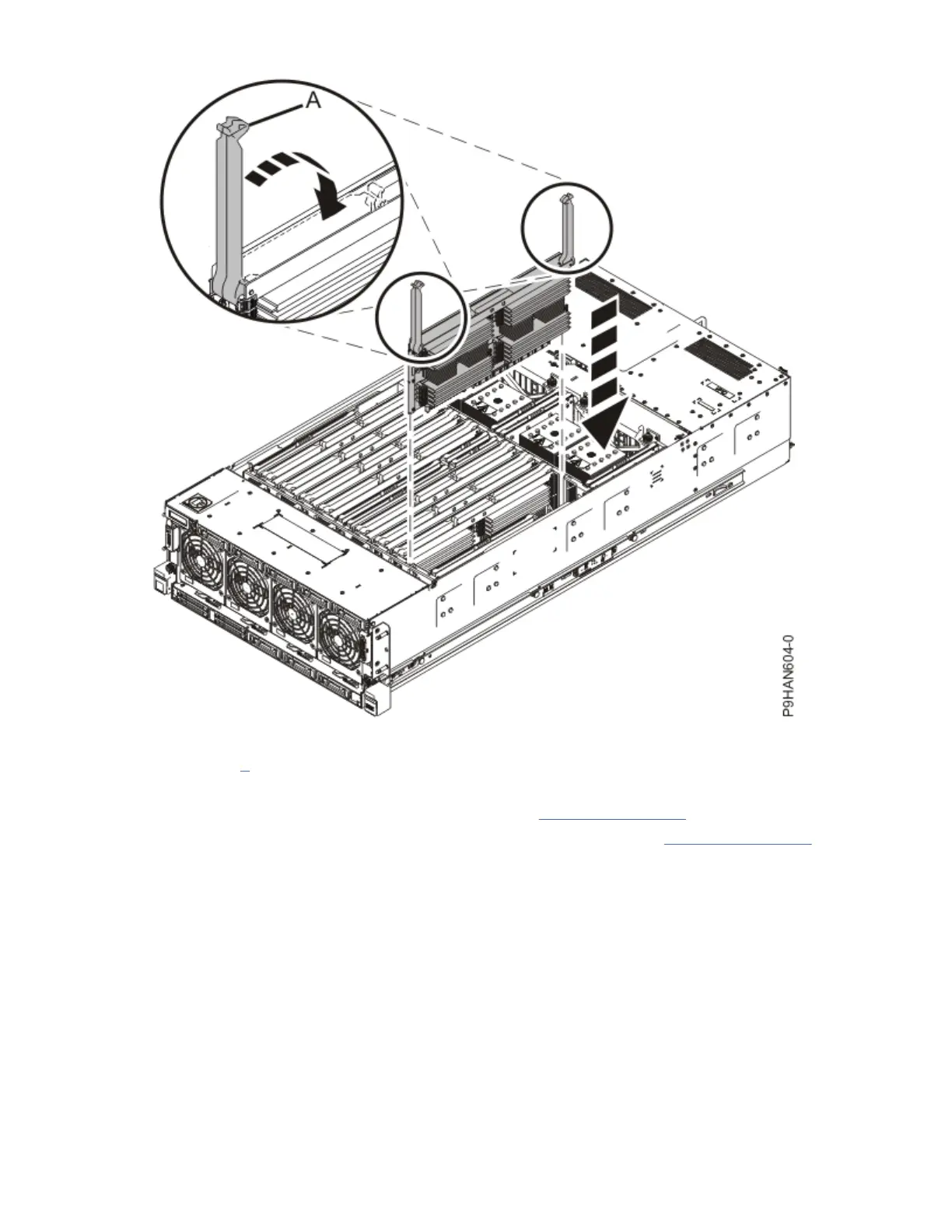

Figure 18. Inserting a memory riser
5.
Repeat step 1 for each memory riser.
6.
Replace the system service cover.
a)
Slide the cover
(A)
onto the system unit as shown in Figure 19 on page 20.
b)
Close the release latches
(B)
by pushing it in the direction as shown in Figure 19 on page 20.
Installing the IBM Power System E950 (9040-MR9)
19
