Chapter 9. Check, Adjust, Remove, and Replace Procedures 9-17
4. Manually remove and clearly label the cartridge magazines from the library. See
“Unlocking Cartridge Magazines Manually” on page 9-4.
5. Remove the front bezel. See “Replacing the Front Bezel” on page 9-14.
Note: Before removing the LCD display card, check for a loose flat cable
connection that may be the cause of the problem.
6. Disconnect the flat cable from the connector (Figure 9-14) on the right side of the
LCD display card. Pull out the lock tab ( in Figure 9-15) on the front right side
of the connector toward you using your fingernail and remove the flat cable.
Note: See Figure 9-15 for a close-up view of the flat cable as it mates with the
connector. The cable contacts are aligned with the connector contacts and
are held in place by pressing the slide lock in to wedge the cable and
connector together.

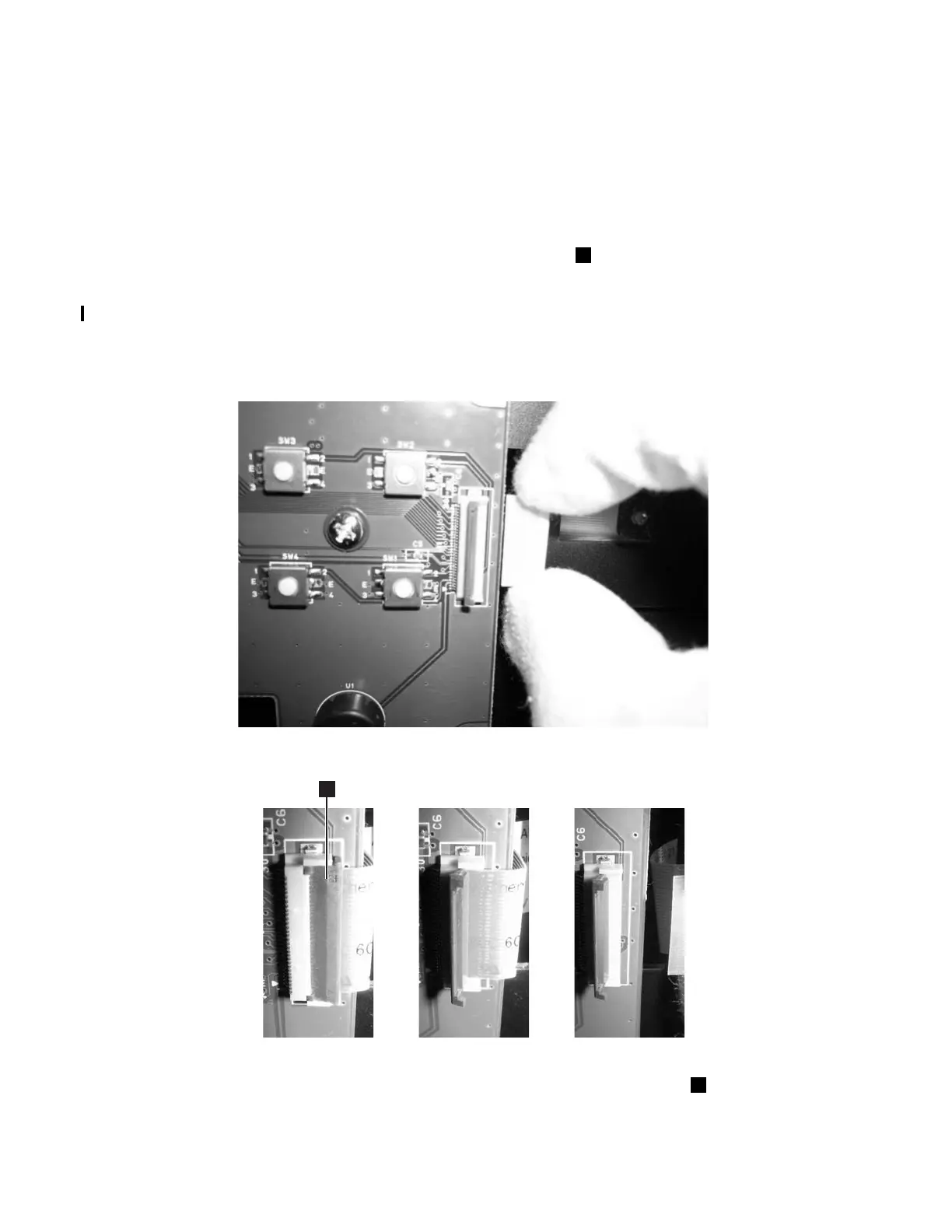

Figure 9-14. LCD display card flat cable connector
Figure 9-15. LCD flat cable connector lock tab
7. Remove the three screws securing the LCD display card ( in Figure 9-16) to the
library door, and remove the LCD display card.
1
a34z0145
a34z0172
1
1
